Air plasma cutting and MMA welding, compatible with CNC automatic cutting, high-frequency arc starting, current preset display, delayed gas shut-off, 2T/4T mode, stable arc.
Suitable for low-carbon steel, stainless steel, aluminum, copper, alloy steel and other non-ferrous metals. Widely used in steel structure manufacturing, mechanical processing, automobile maintenance and industrial cutting projects.
Compatible with domestic and imported CNC cutting power supplies, equipped with external CNC interface for linkage with various CNC cutting machines.
User-friendly operation with digital display, supporting accurate preview and preset of cutting current and power.
Adopts high-frequency arc ignition for smooth, stable and efficient arc starting.
Delayed gas shut-off function cools and protects the torch, extending consumable service life.
Supports 2T/4T dual modes for manual and CNC automatic cutting, suitable for multiple scenarios.
Concentrated high-temperature plasma arc enables fast cutting speed with minimal workpiece deformation.
Smooth and neat cuts save raw materials and reduce secondary processing.
External air pump design makes the machine lightweight and easy to transport.
Adjustable pre-gas and delayed gas time ensures precise parameters and stable cutting quality.
Maximum cutting thickness up to 50mm, meeting heavy-duty thick plate cutting demands.
Item | LGK-105 | LGK-125 | LGK-165 |
|---|---|---|---|
Rated input voltage Frequency | Three phase AC380V±15% 50Hz | Three phase AC380V±15% 50Hz | Three phase AC380V±15% 50Hz |
Rated input power (KVA) | 13 | 15 | 18 |
Rated input current (A) | 20 | 22.8 | 27.3 |
Rated output voltageV) | 122 | 130 | 146 |
Output current range (A) | 15-105 | 20-125 | 30-165 |
Output no-load voltage (V) | 280 | 280 | 308 |
Rated load persistence rate (%) | 60 | 60 | 60 |
Cutting torque using air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Max. cutting thickness of carbon steel (mm) | 1-35 | 1-45 | 1-55 |
Cutting gas flow rate (L min) | 270-380 | 270-380 | 270-380 |
Arc ignition method | High frequency arc ignition | High frequency arc ignition | High frequency arc ignition |
Shell protection level | IP21S | IP21S | IP21S |
Insulation level | H | H | H |
Overall size LxWxH (mm) | 490×250×530 | 490×250×530 | 610×315×540 |
Weight (Kg) | 27 | 30 | 48 |
Standard configuration | Optional accessory |
|---|---|
1 set of 5-meter cutting gun | Water tank |
One set of earth cable,2 meters | |
One air filter | Water cooled welding gun |

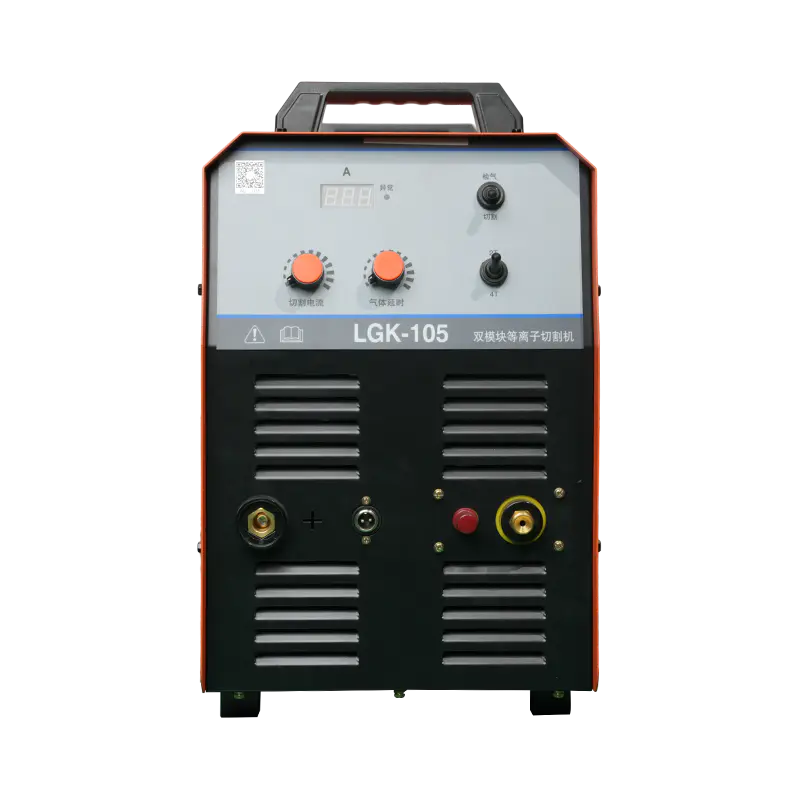

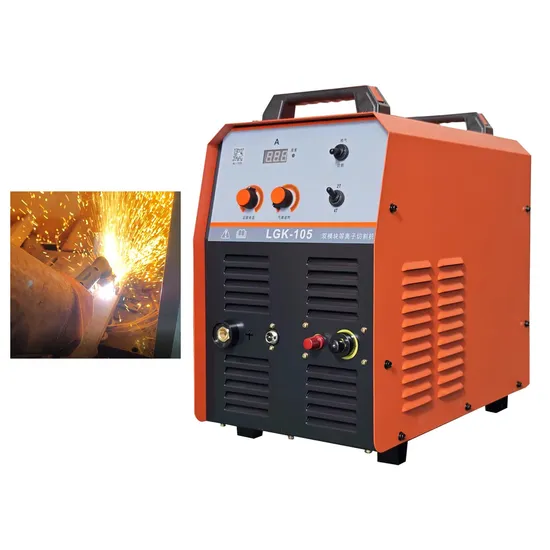

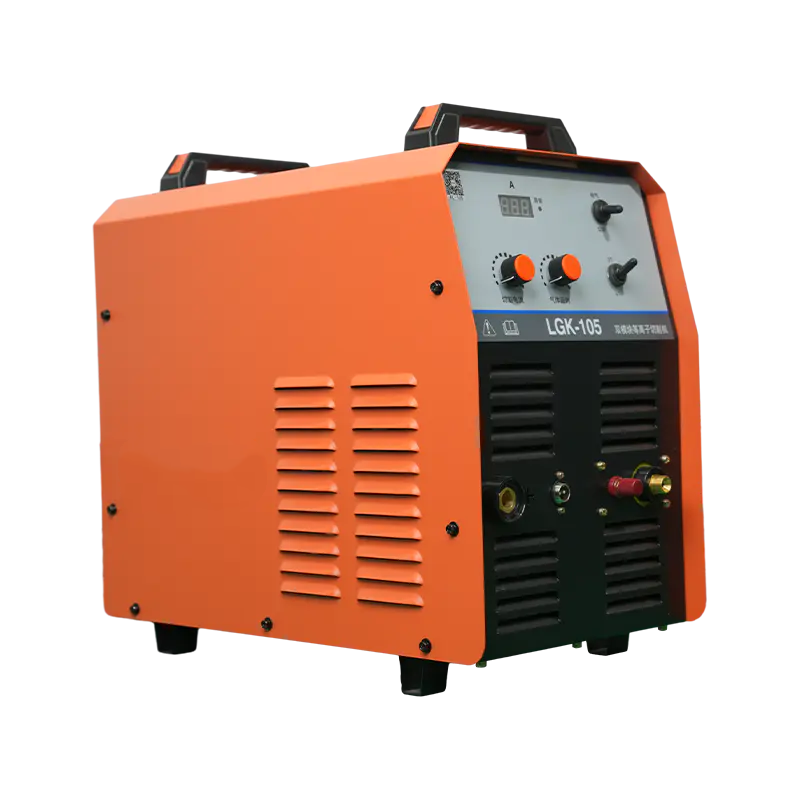

LGK-105: Entry CNC plasma model, stable performance, suitable for conventional medium and thick plate cutting, daily industrial processing and maintenance work.

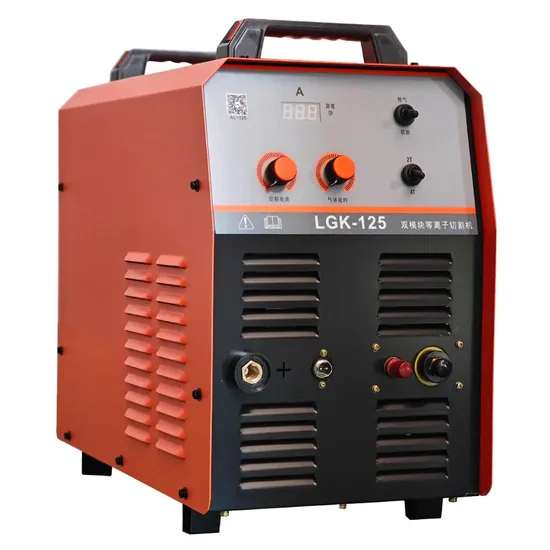

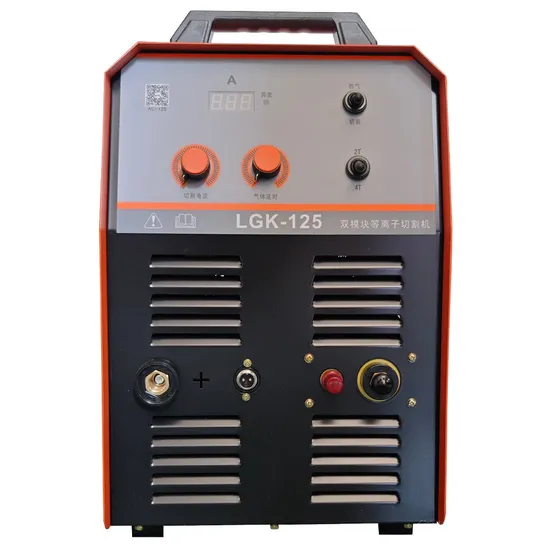

LGK-125: Mid-range upgraded model, stronger cutting power, ideal for batch cutting of steel structures and medium-heavy industrial plates.

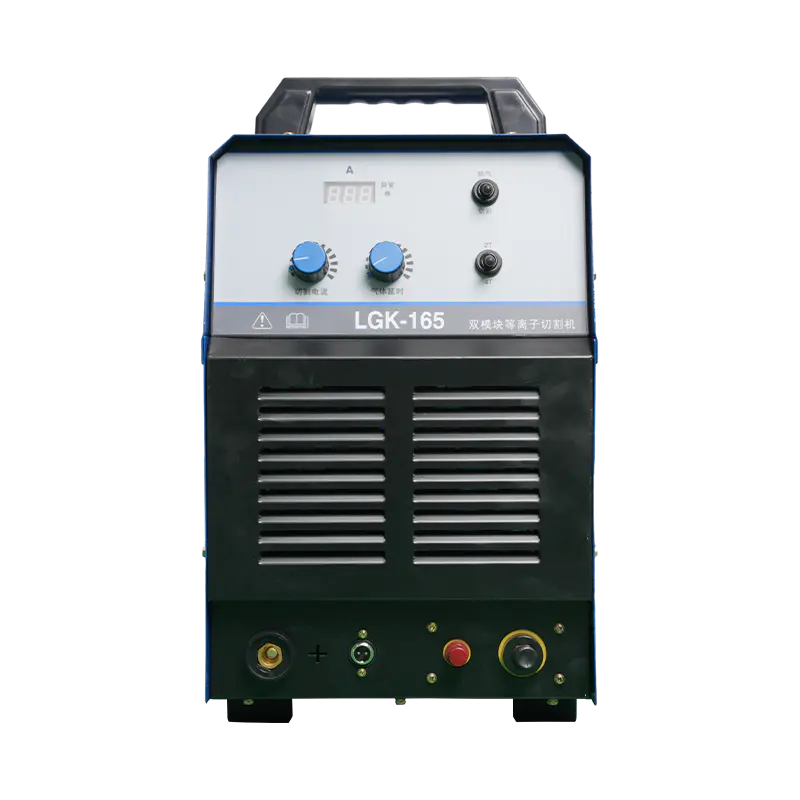

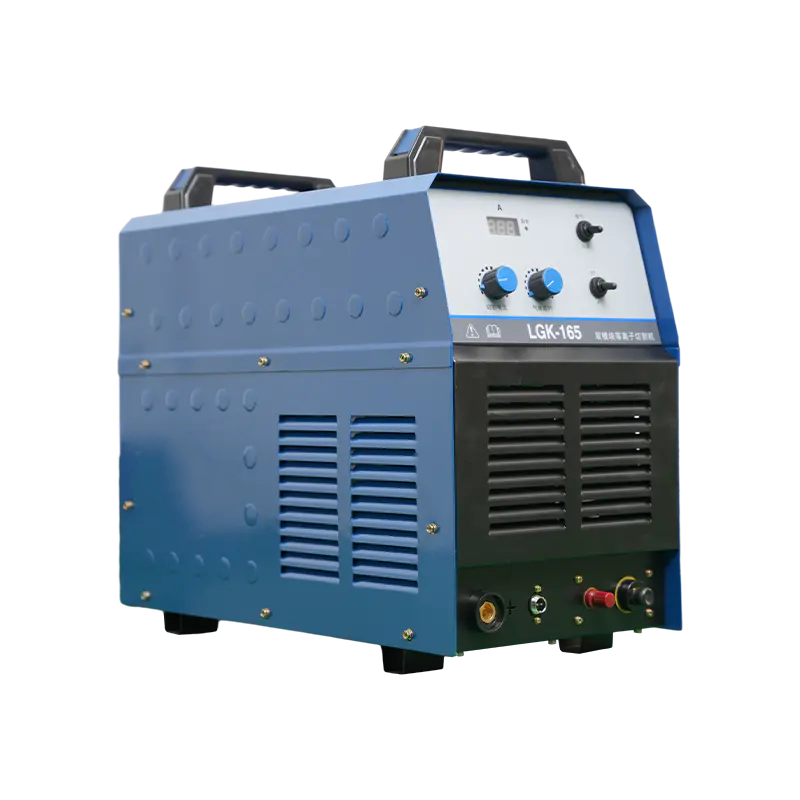

LGK-165: High-power heavy-duty model, maximum cutting capacity, specially designed for 50mm ultra-thick plate cutting and long-term CNC automatic production.
Q1: Is this machine compatible with CNC cutting machines?
Yes. The machine features a dedicated external CNC interface, fully compatible with all imported and domestic CNC cutting power supplies on the market, enabling fully automatic cutting production when connected to CNC equipment.
Q2: What is the purpose of the 2T/4T modes?
2T mode is suitable for short-distance, intermittent manual cutting; 4T mode supports long-duration continuous cutting and is compatible with CNC automated operations, significantly reducing labor intensity.
Q3: What are the advantages of the delayed gas shut-off function?
Delayed gas shut-off after cutting provides continuous cooling to the torch, effectively protecting vulnerable parts such as nozzles and electrodes, reducing consumable waste, and extending service life.
Q4: What are the benefits of the external air pump design?
The external air pump structure makes the machine lighter and more flexible, facilitating on-site handling and mobile operation. It is suitable for both fixed workshop production and outdoor construction projects.
