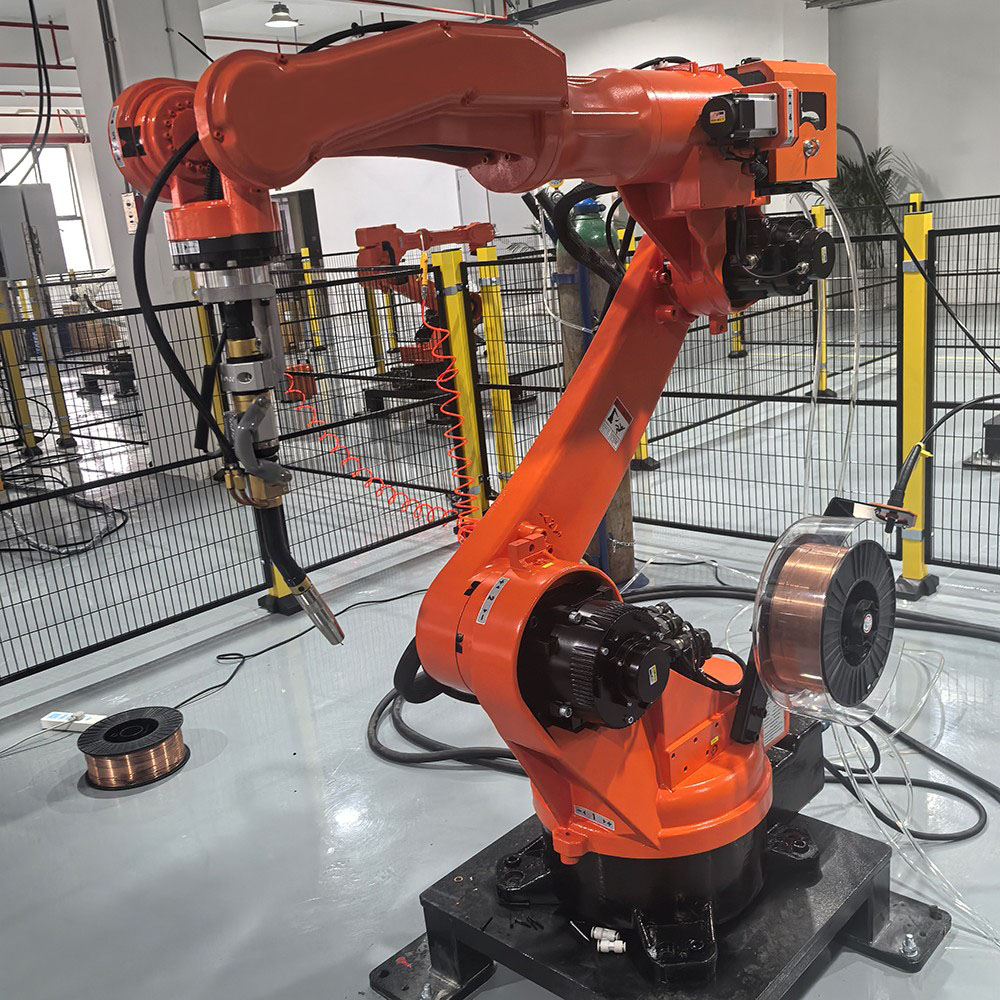

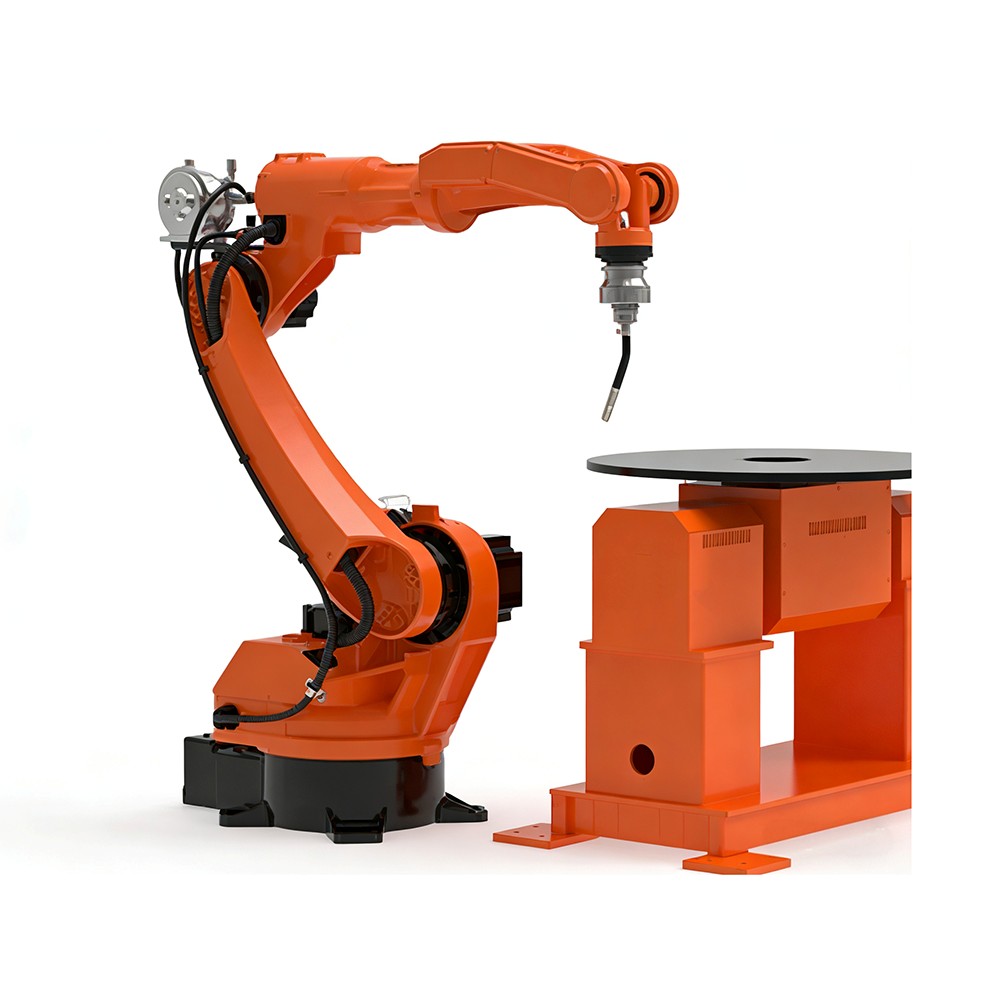

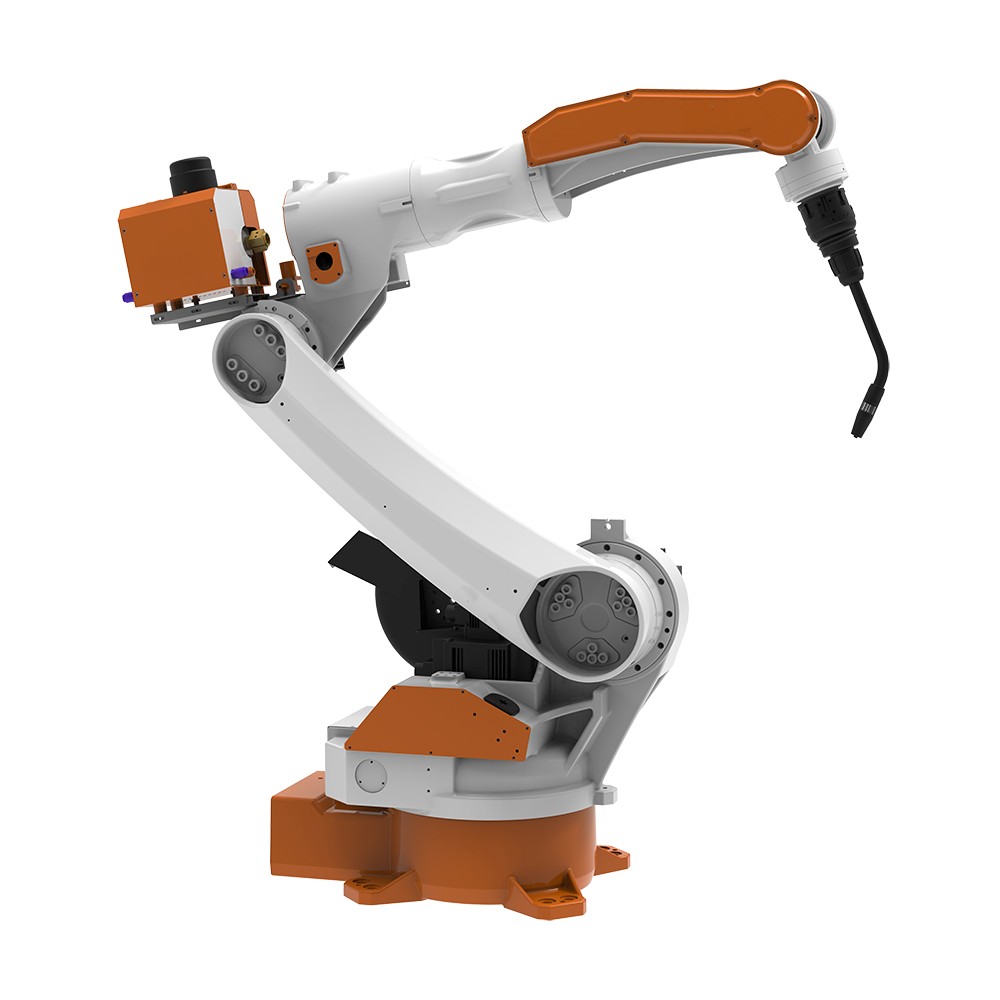

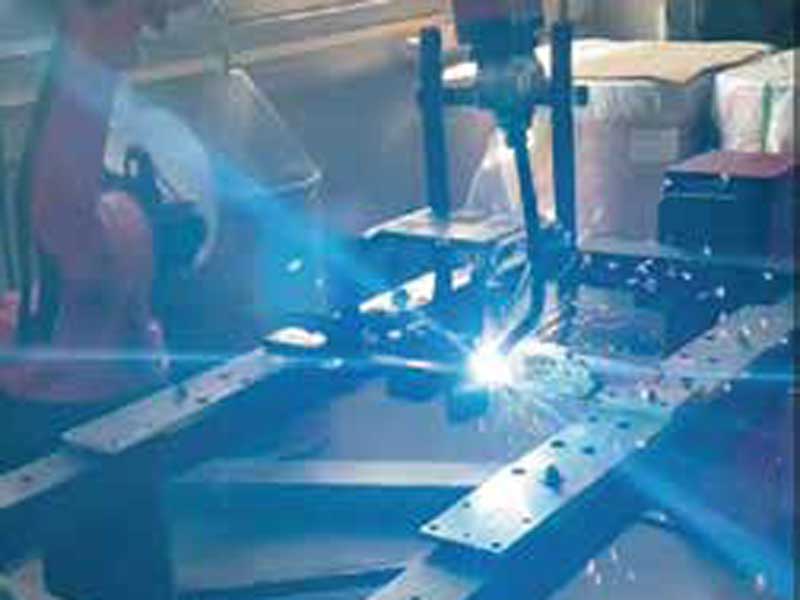

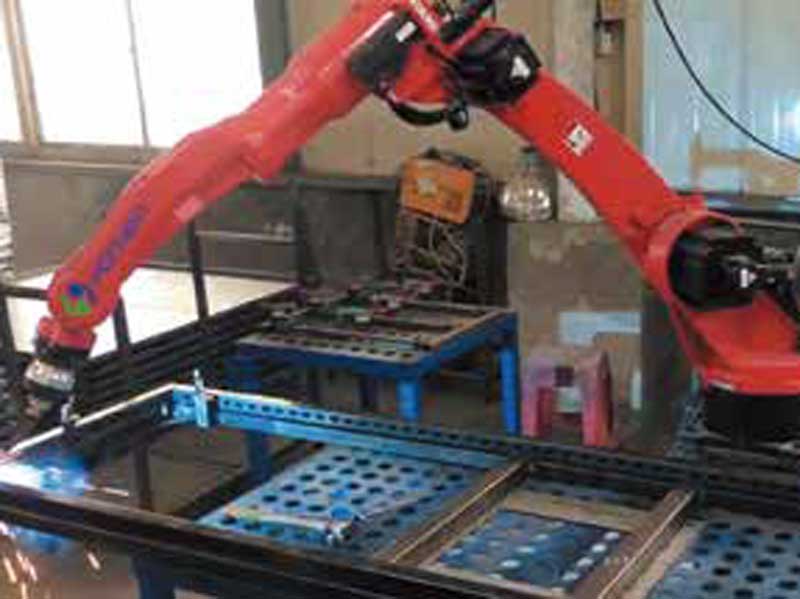

DS1006A-200 is a long reach-6-axis welding robot engineered for high mix production. It offers 2000mm working radius and 6kg payload, with smooth motion and reliable repeatability for heavy use welding stations. It adapts to multiple metal materials and welding processes while keeping deployment costs low.
● Compact body supports standing, side mount and inverted installation
● Optimized acceleration profiles ensure stable, consistent welds
● Cost optimized structure lowers total cost of ownership
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 3KVA/payload: 6kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 300kg |
| Vibration | ≤4.9m/s² |

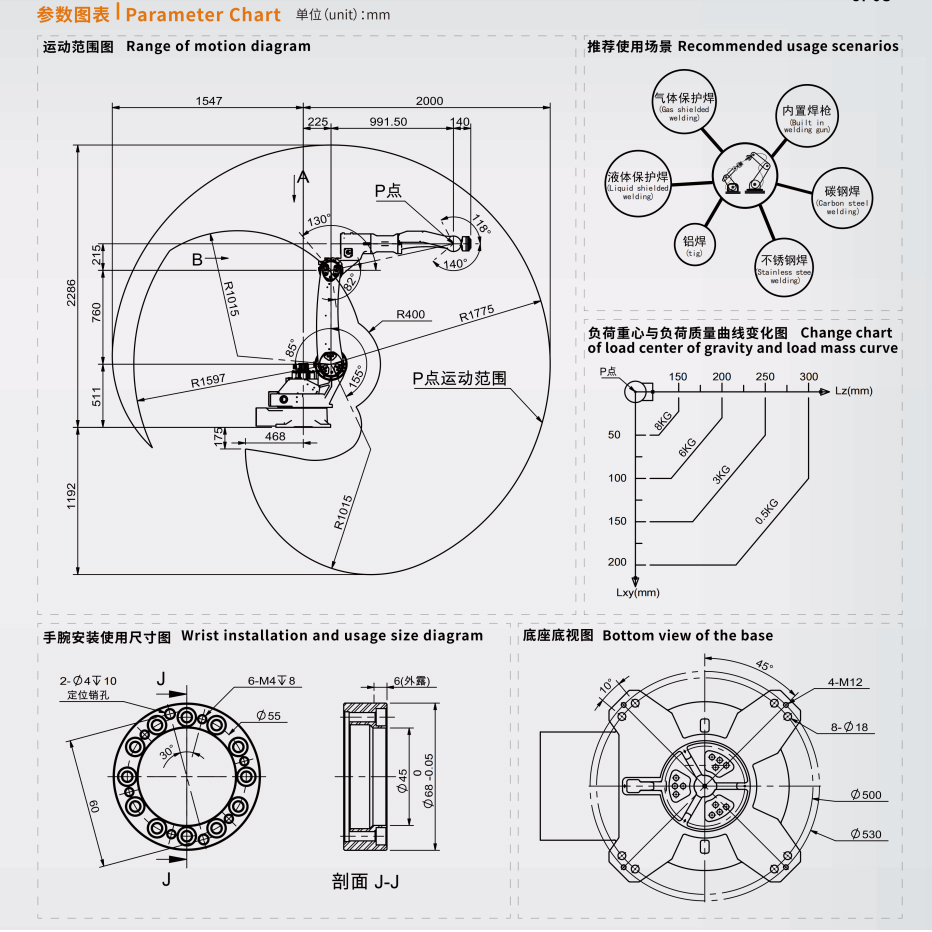

| Max Range | 2000mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.08mm |
| IP Grade | IP65（wrist） |
| Installation | Ground, ceiling, wall |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 162°/s | - |
| J2 | +85°~-155° | 162°/s | - |
| J3 | +130°~-82° | 198°/s | - |
| J4 | ±170° | 370°/s | Ø27 |
| J5 | +118°~-140° | 294°/s | - |
| J6 | ±360° | 1333°/s | Ø45 |
