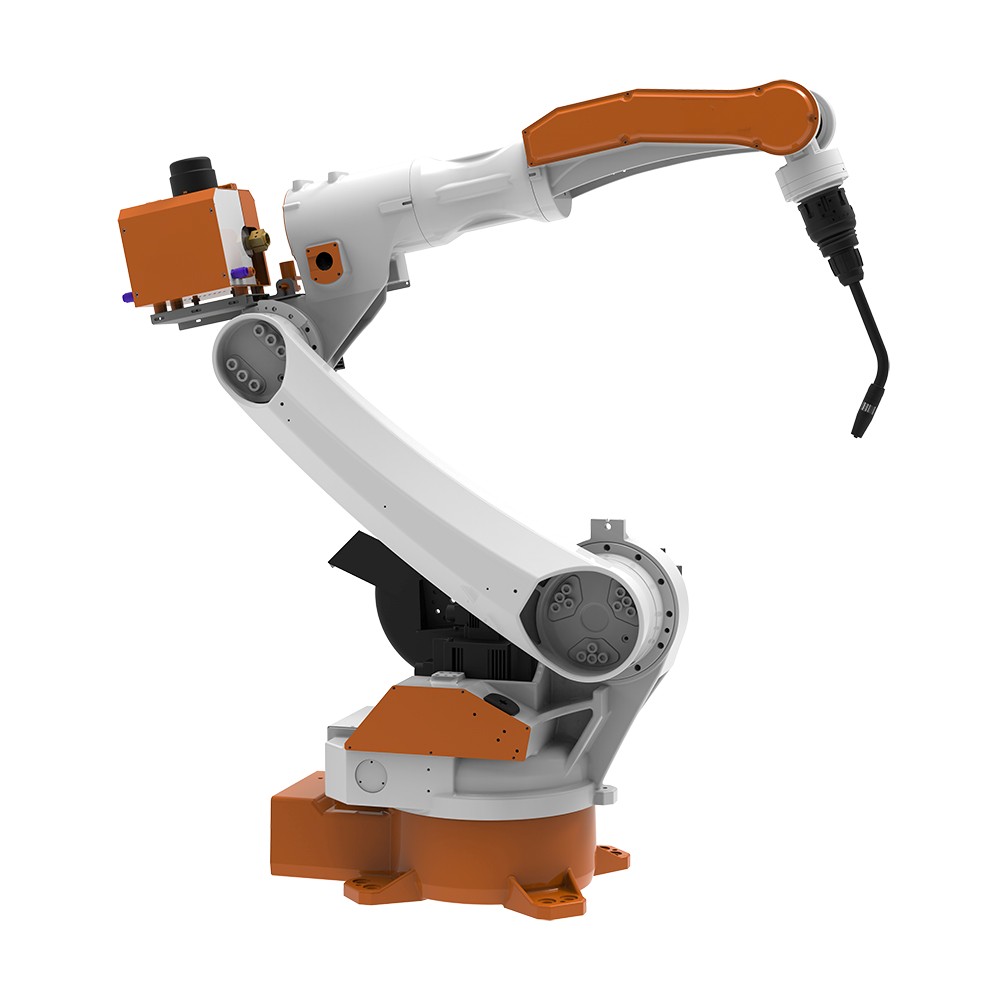

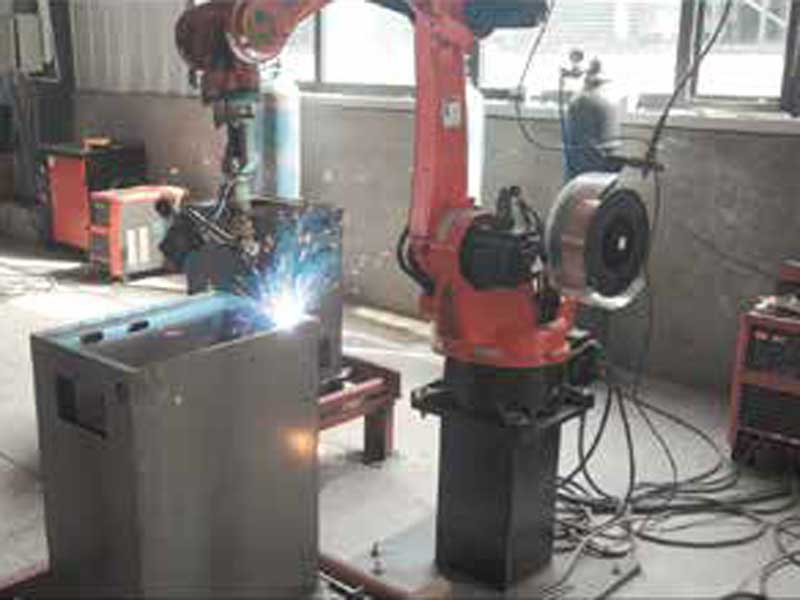

Designed for precision welding automation, DS1006A-175 is a dedicated 6axis arm with 1750mm reach and 6kg payload. Its hollow J4/J6 joints simplify cable and air hose routing, making it ideal for carbon steel, stainless steel and aluminum alloy welding in auto parts, metal fabrication and shipbuilding lines. Industrial MIG welding robot is an automated welding equipment designed for metal joining tasks. It adopts stable MIG welding technology with precise control of welding speed and wire feeding. It features high efficiency, consistent weld quality and low error rate, suitable for mass production. Widely used in automotive, machinery and steel structure industries, it replaces manual welding to improve safety and production stability.
● High dynamic response cuts cycle times without losing accuracy
● IP65 wrist protection withstands harsh welding environments
● Flexible floor/wall/ceiling mounting fits tight layouts
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 3.0KVA/payload: 6kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 190kg |
| Vibration | ≤4.9m/s² |
| Max Range | 1750mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.05mm |
| IP level | IP65（wrist） |
| Installation | Ground, ceiling, wall |

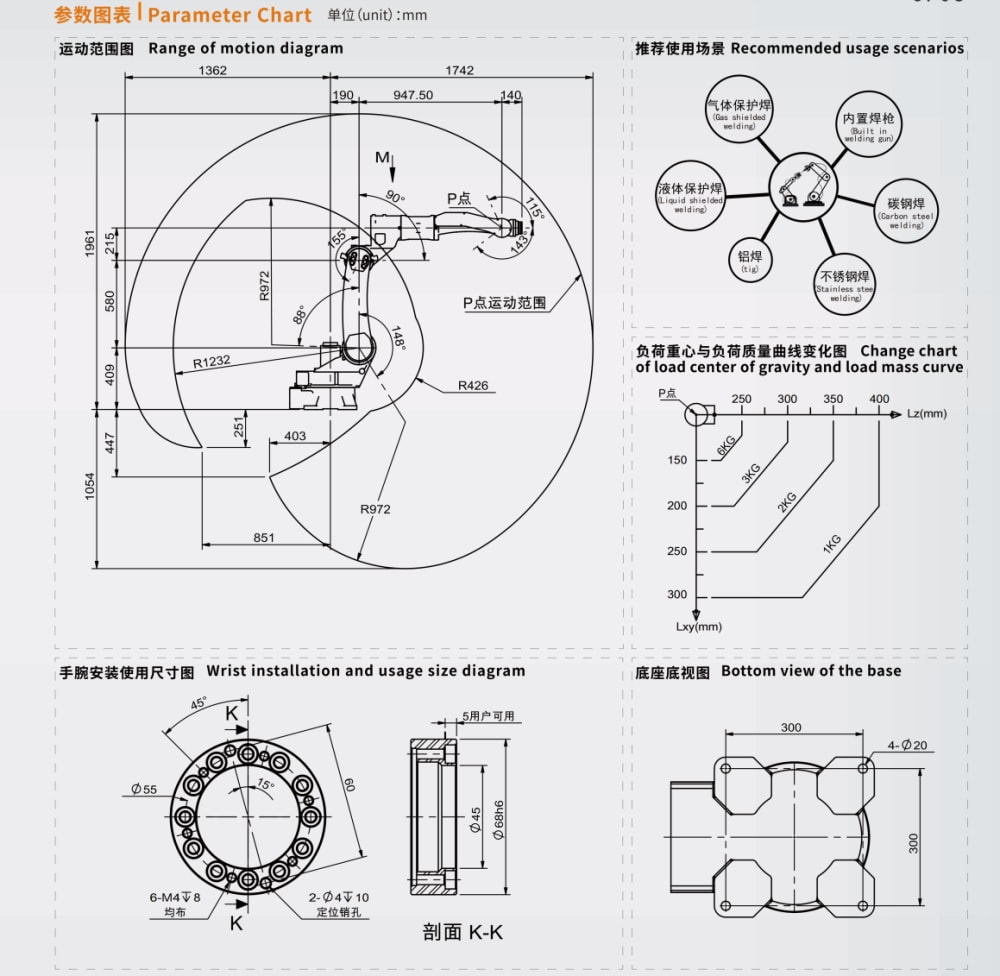

| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 237°/s | - |
| J2 | +178°~-58° | 207°/s | - |
| J3 | +115°~-90° | 228°/s | - |
| J4 | ±150° | 268°/s | Ø45 |
| J5 | +115°~-143° | 294°/s | - |
| J6 | ±360° | 783°/s | Ø45 |
