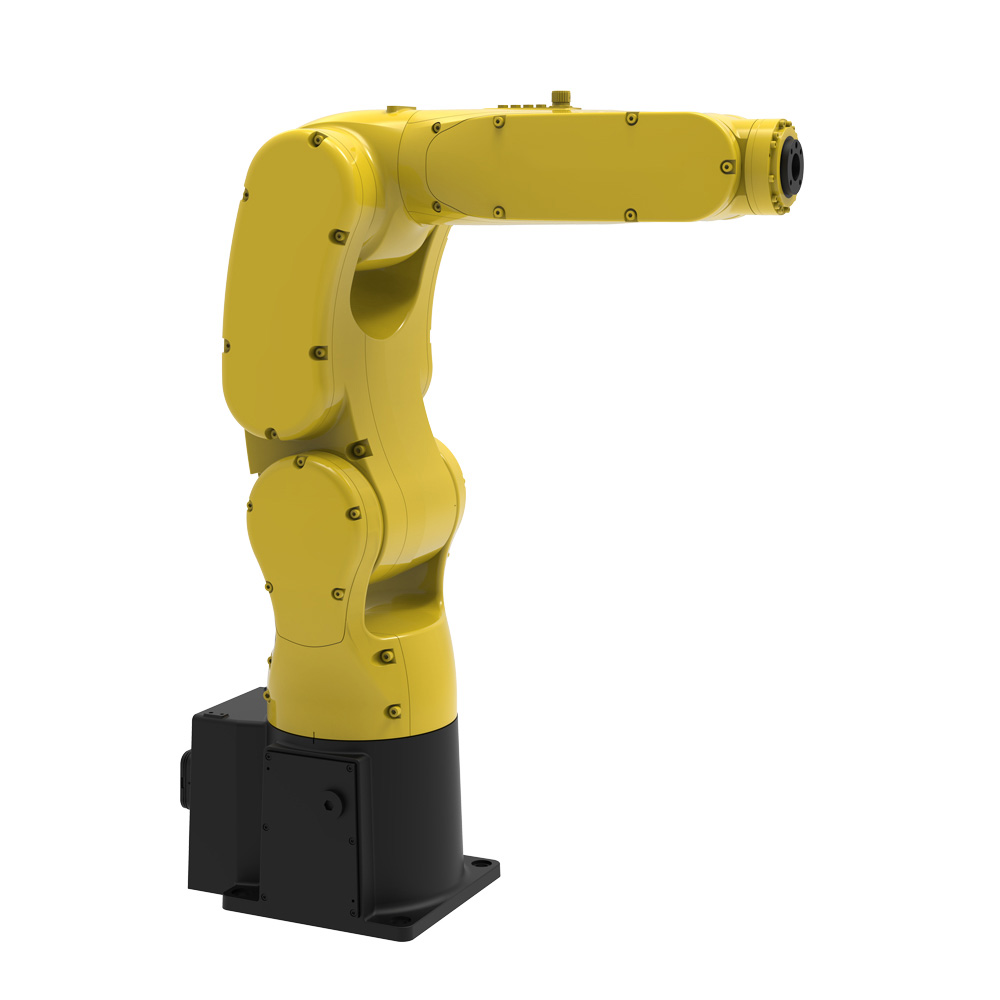

DS1007A-092 is a compact high-precision 6-axis industrial robot developed for flexible automation in modern manufacturing environments. Engineered with advanced motion control technology and a lightweight mechanical structure, the robot delivers stable operation, fast cycle times, and exceptional positioning accuracy for demanding production tasks.

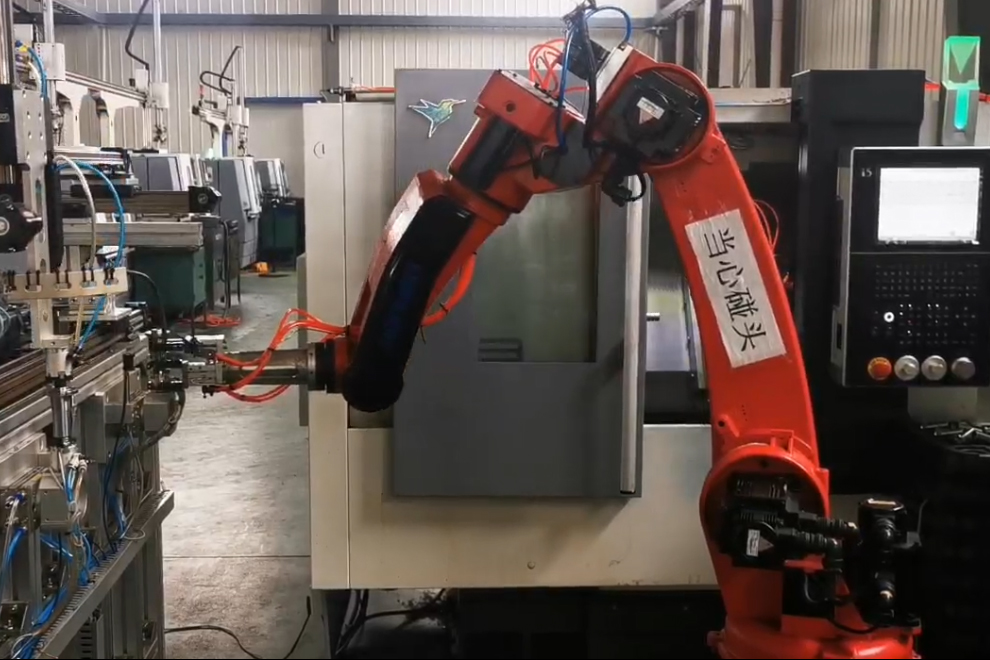

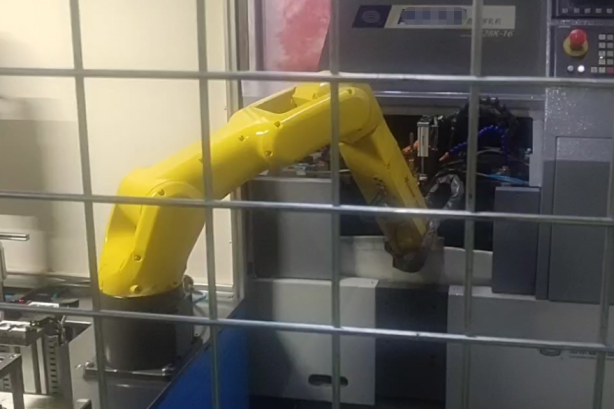

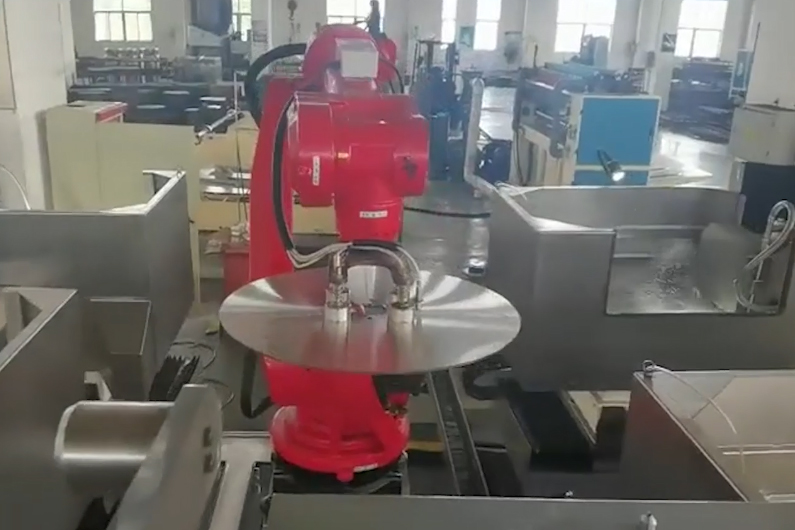

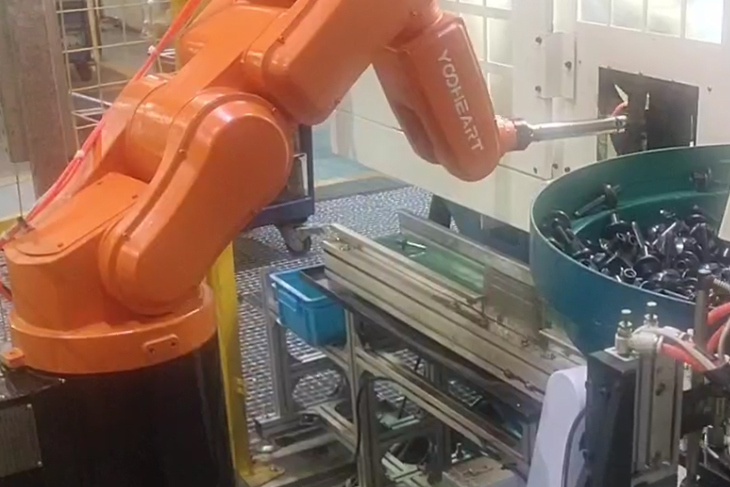

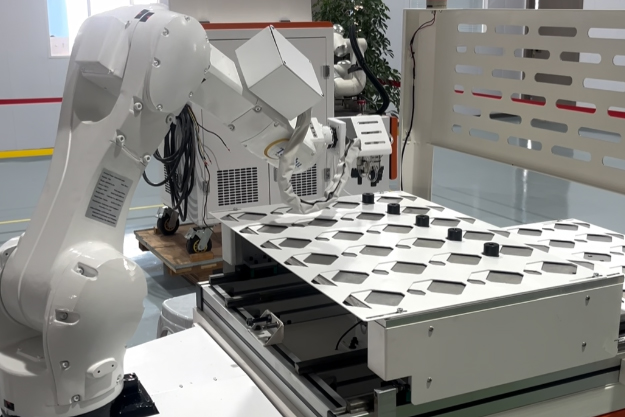

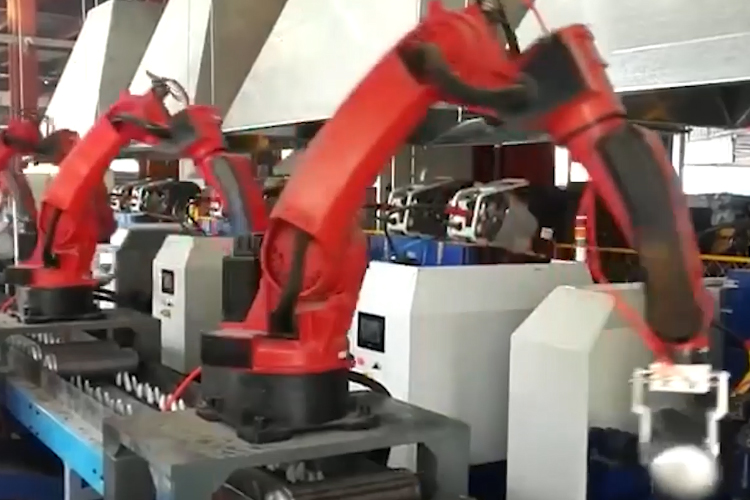

Designed for industries requiring precision and reliability, the DS1007A-092 supports applications including assembly, machine tending, inspection, dispensing, polishing, and small-part material handling. Its compact footprint allows seamless integration into automated production cells where installation space is limited.
With ±0.02mm repeatability and a 920mm working radius, this robot provides consistent process quality while improving operational efficiency and reducing manual labor dependency.
Advanced servo control and optimized kinematics ensure accurate trajectory execution with repeatability up to ±0.02mm for precision manufacturing processes.
The slim robotic arm design enables installation in confined production environments while maximizing workspace utilization.
Optimized joint configuration improves dynamic response and maintains smooth movement during high-speed operation cycles.
Supports multiple end-of-arm tooling solutions including grippers, vision systems, sensors, and dispensing modules for customized automation requirements.
Robust mechanical construction and IP67 wrist protection ensure stable long-term performance in demanding industrial conditions.
Modular component layout allows quick inspection and reduced maintenance downtime.
| Item | Specification |
|---|---|
| Axis | 4 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 3.0KVA/payload: 7kg |
| Humidity | 0%-95%RH(No condensation ) |
| Body weight | 53kg |
| Vibration | ≤4.9m/s² |

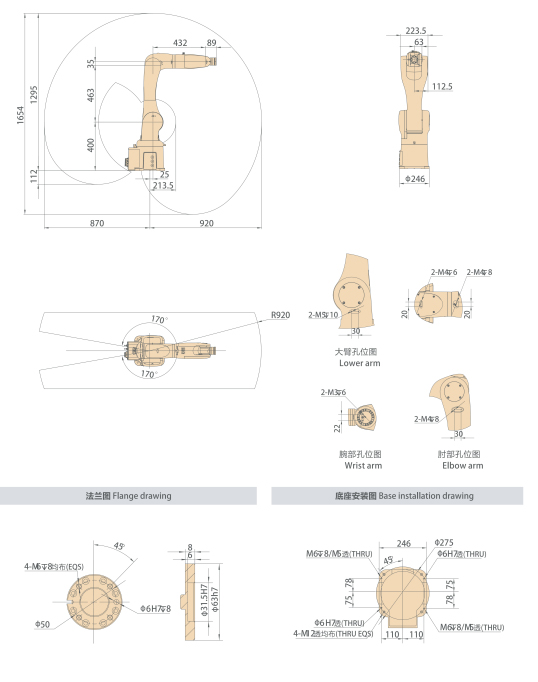

| Max Range | 920mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.02mm |
| IP level | IP 67 |
| Installation | Ground |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 380°/s | - |
| J2 | +135°~-100° | 320°/s | - |
| J3 | +156°~-120° | 390°/s | - |
| J4 | ±200° | 490°/s | - |
| J5 | +135°~-135° | 565°/s | - |
| J6 | +360°~-360° | 815°/s | - |
