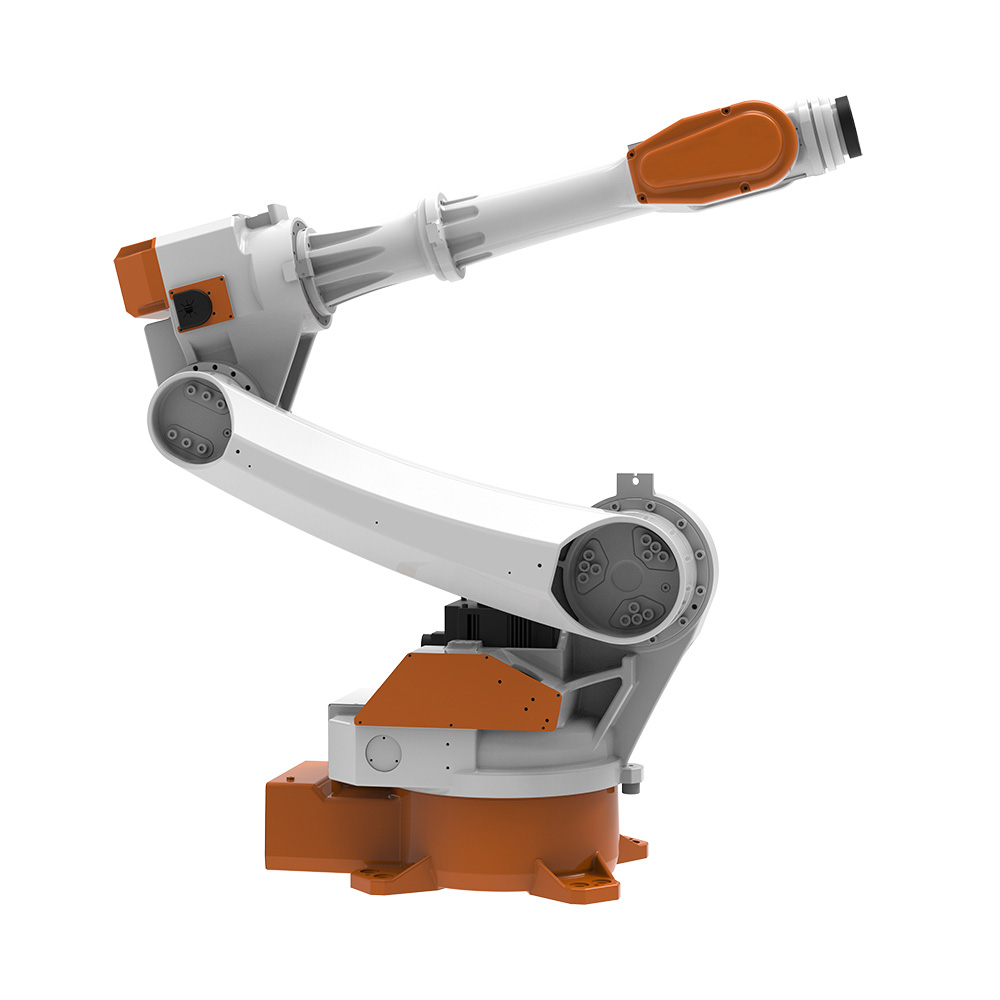

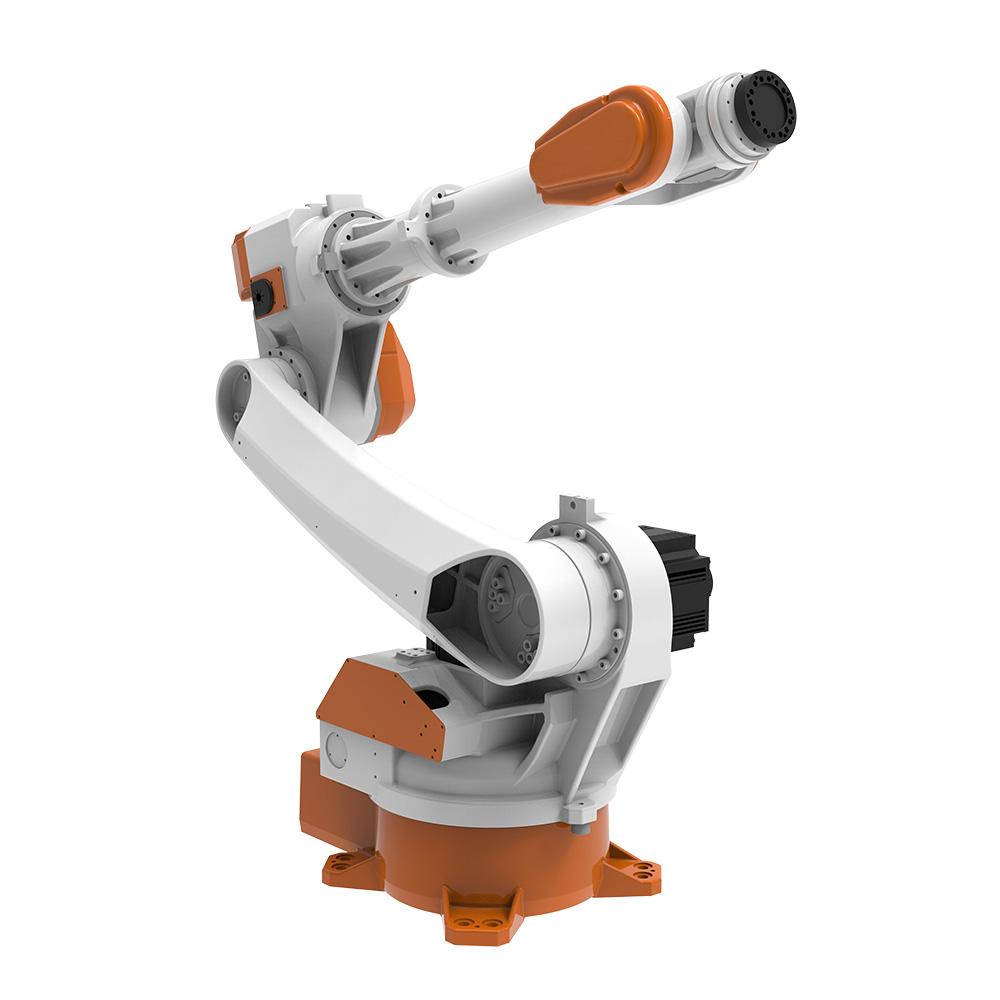

DS1035A-200 is a high-performance 6-axis industrial robot developed for medium-payload automation applications. With a payload capacity of 35 kg and a 2000 mm operating radius, the robot delivers efficient motion control, flexible process compatibility, and reliable operational stability.

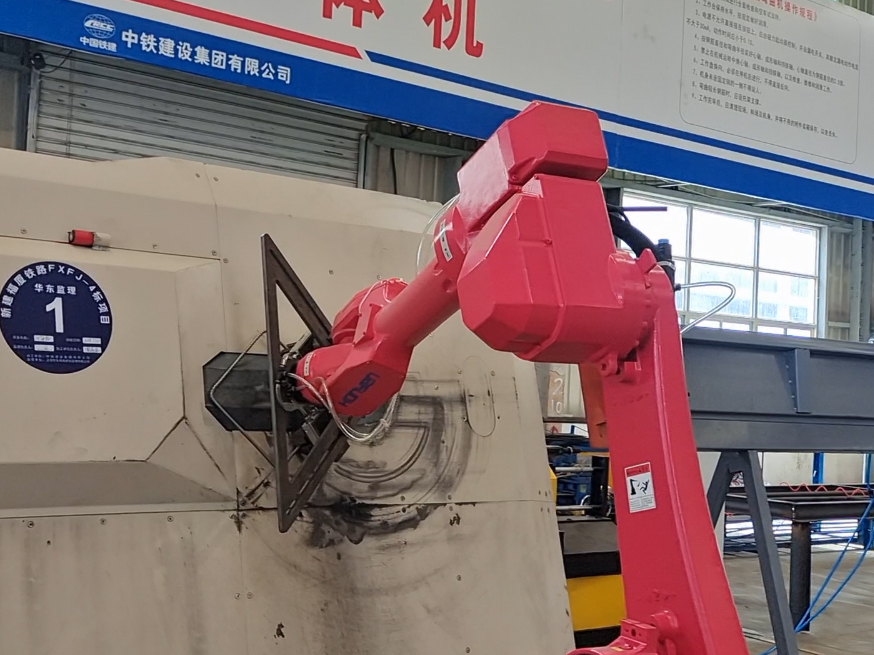

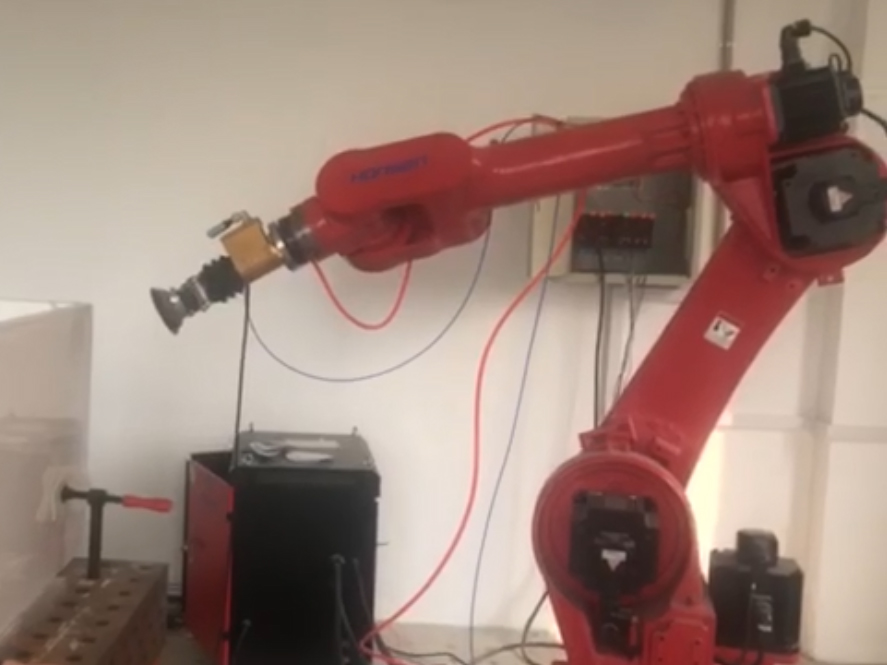

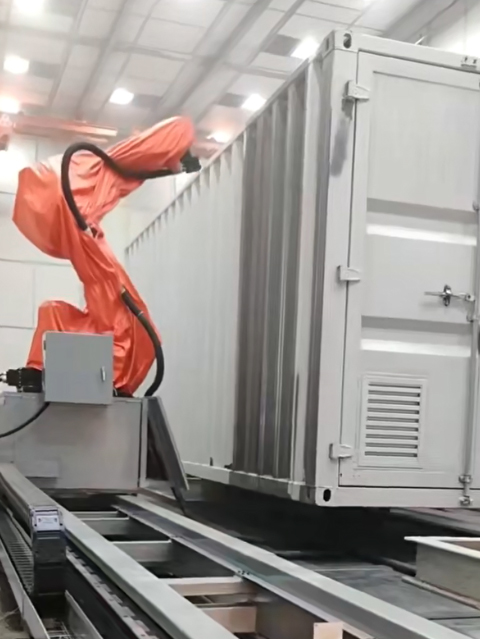

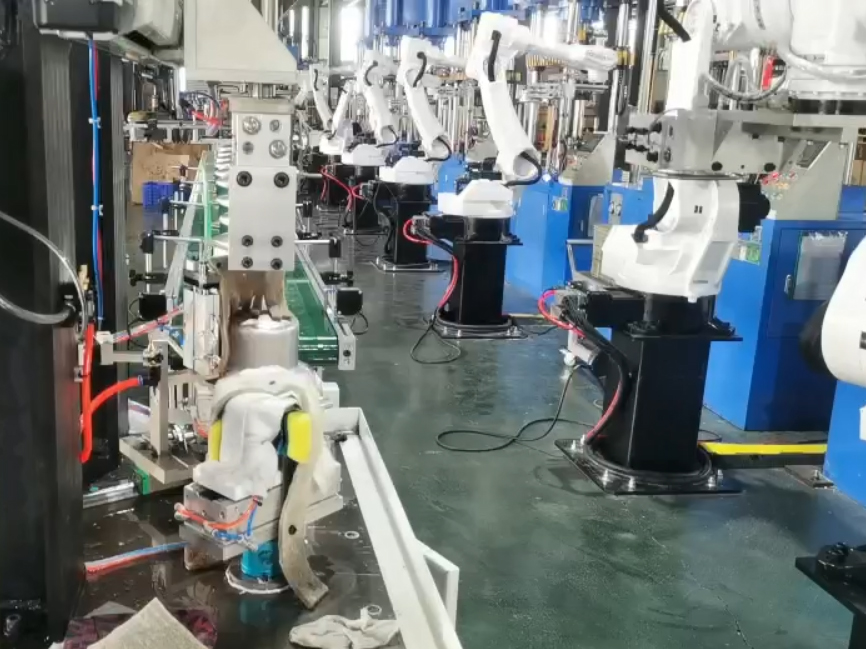

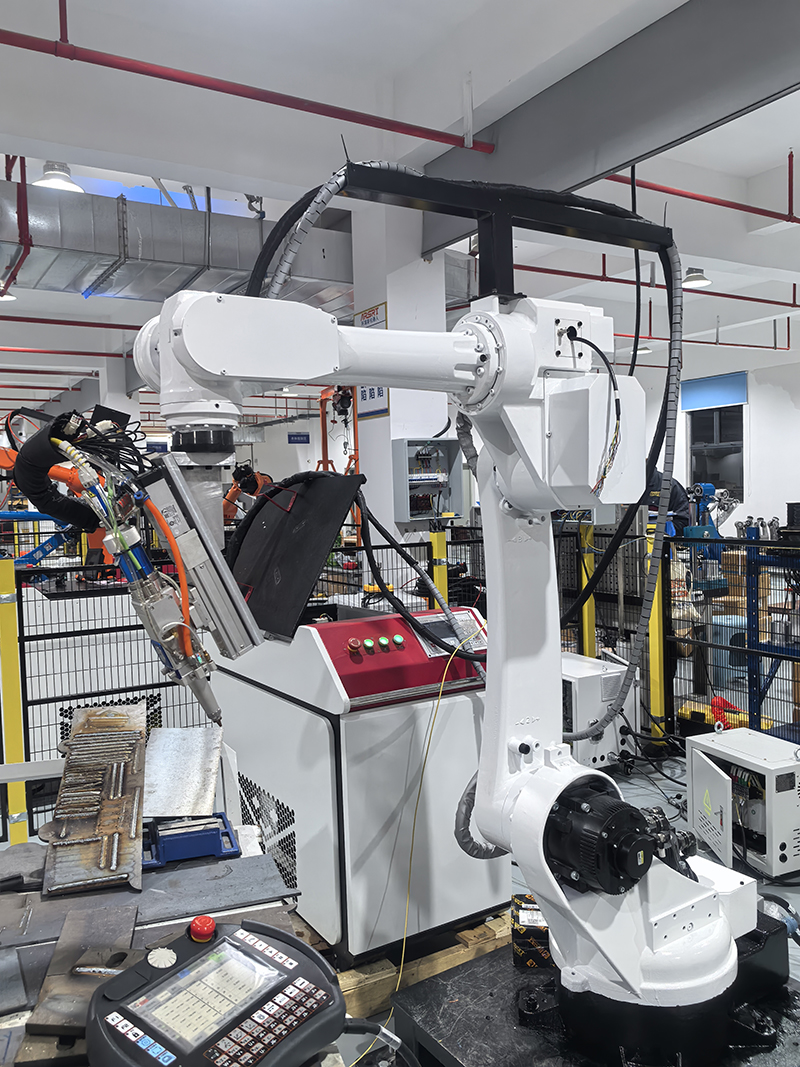

It is suitable for laser cutting, plasma cutting, grinding, polishing, stamping, and automated material handling applications in modern industrial production environments.
Supports cutting, polishing, handling, and stamping operations.
Optimized joint design improves high-speed operational performance.
35 kg payload capacity supports various industrial tooling systems.
Compatible with intelligent factory automation environments.
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 6.0KVA/payload: 35kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 360kg |
| Vibration | ≤4.9m/s² |

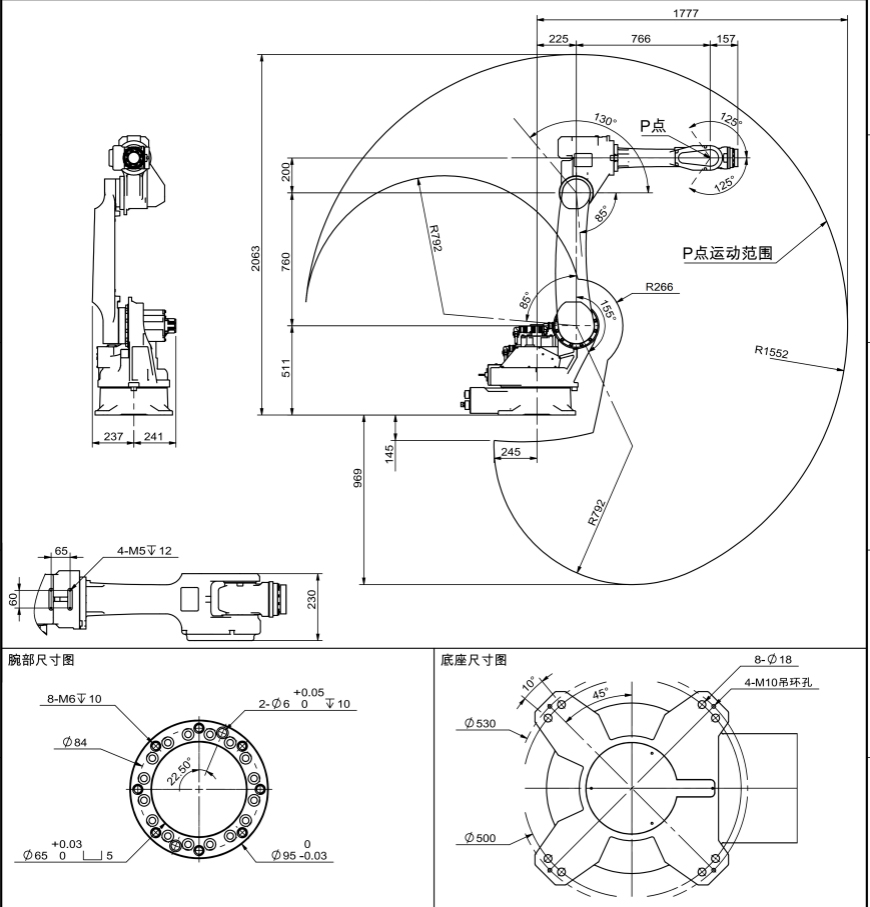

| Max Range | 2000mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.05mm |
| IP level | IP54/65（wrist） |
| Installation | Ground, Ceiling, Wall |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 162°/s | - |
| J2 | +85°~-155° | 112°/s | - |
| J3 | +130°~-85° | 148°/s | - |
| J4 | ±170° | 295°/s | Ø36 |
| J5 | +125°~-125° | 220°/s | - |
| J6 | ±360° | 207°/s | - |
