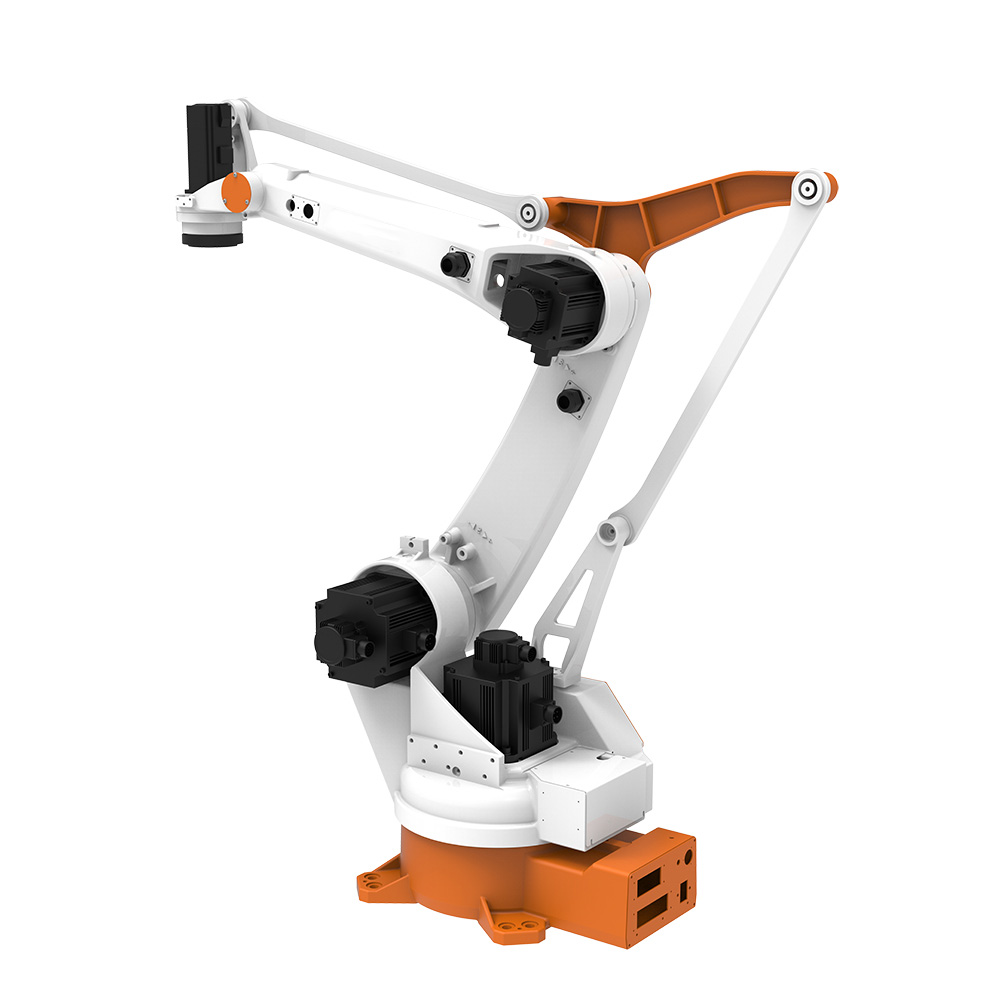

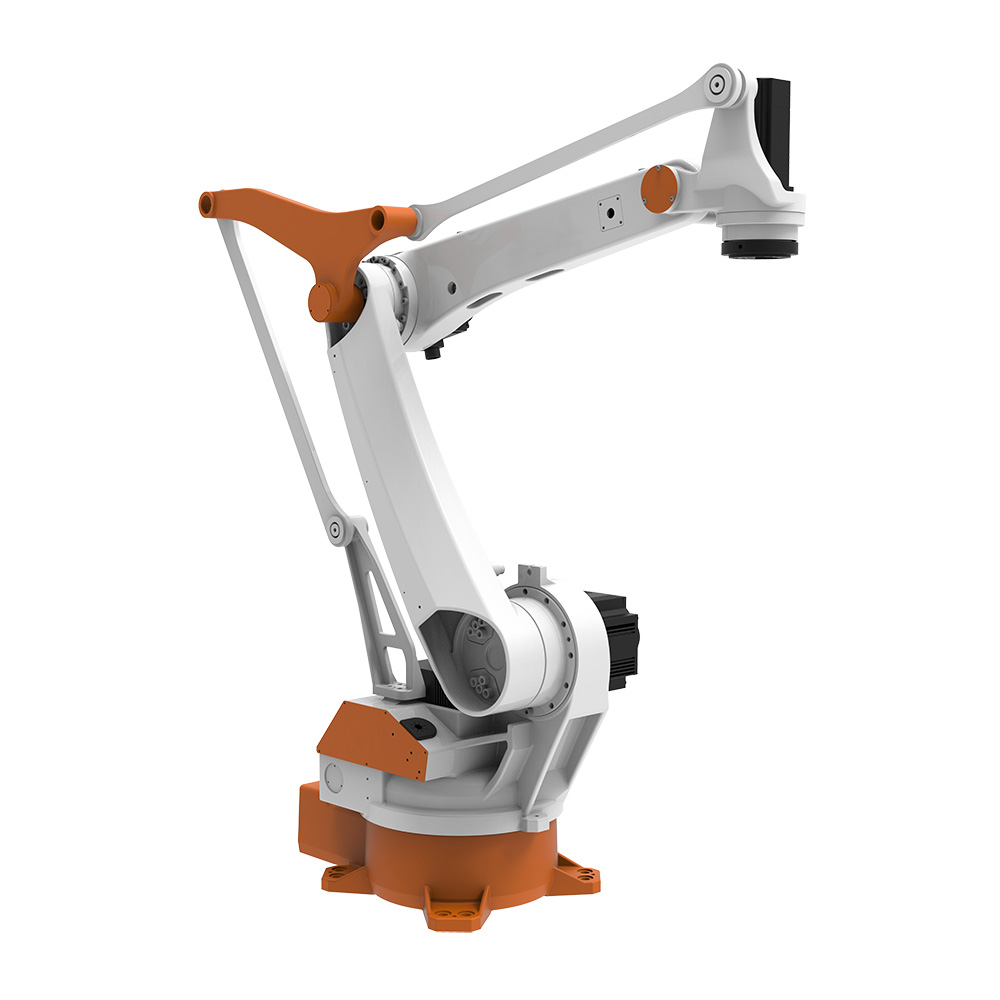

The DS1035B-190 is a robust 4-axis industrial robot designed for high-speed loading, unloading, and material transfer applications in automated manufacturing environments. Built for reliability and operational efficiency, the robot is ideal for repetitive industrial handling processes requiring stable motion and high payload performance.
Its 1900mm working range and 35kg payload capacity enable efficient handling of medium and large workpieces across multiple production stations. The optimized 4-axis structure delivers faster cycle times while simplifying maintenance and reducing operating costs.

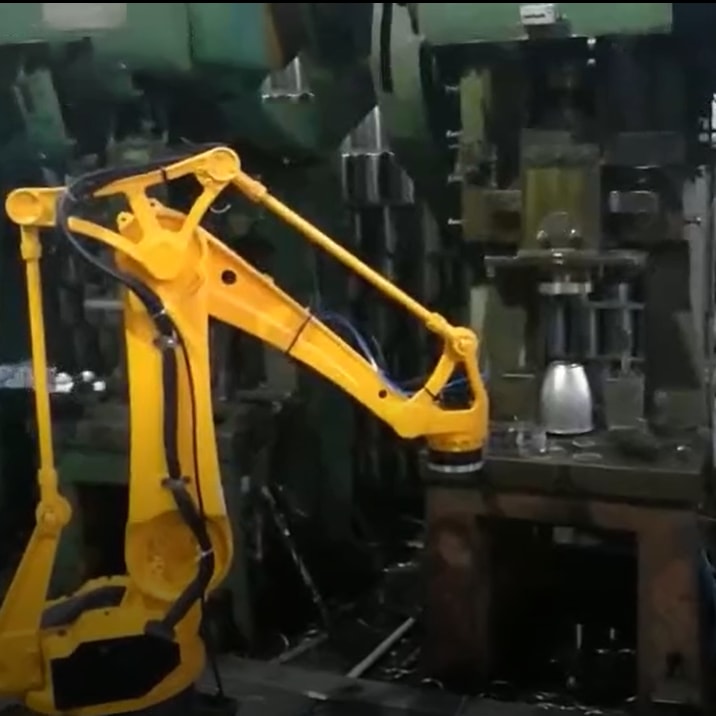

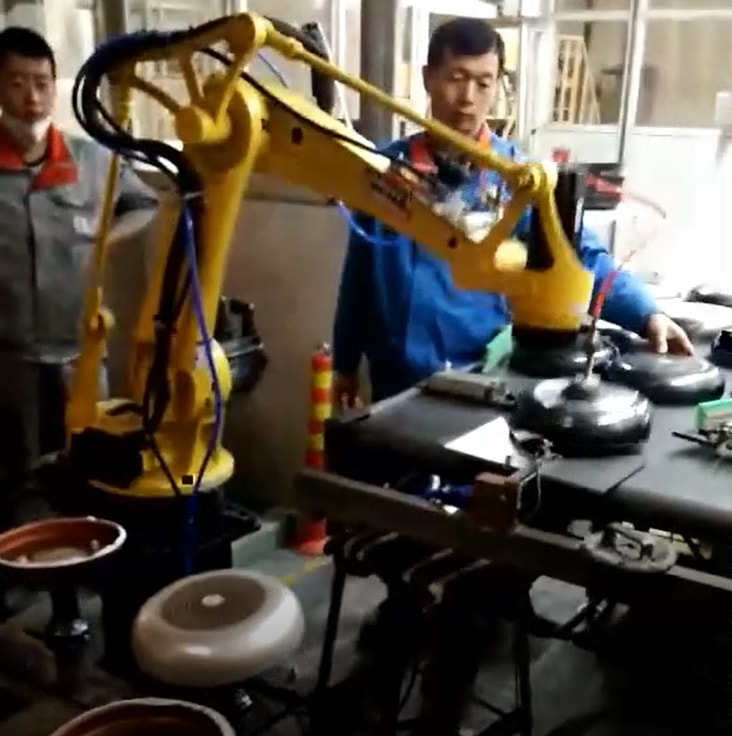

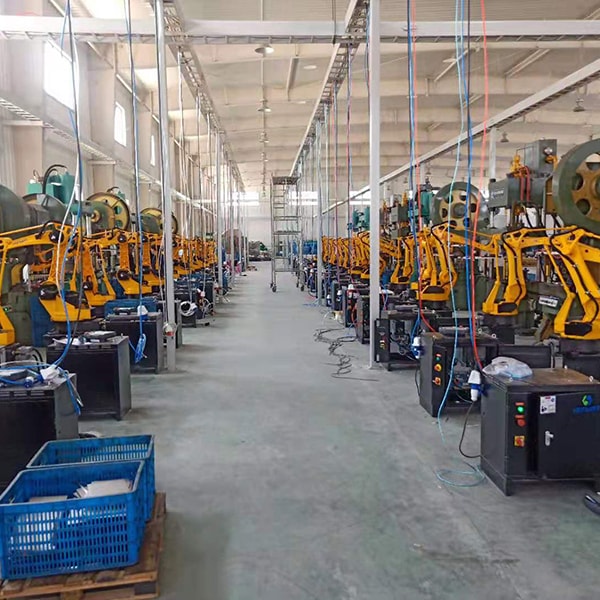

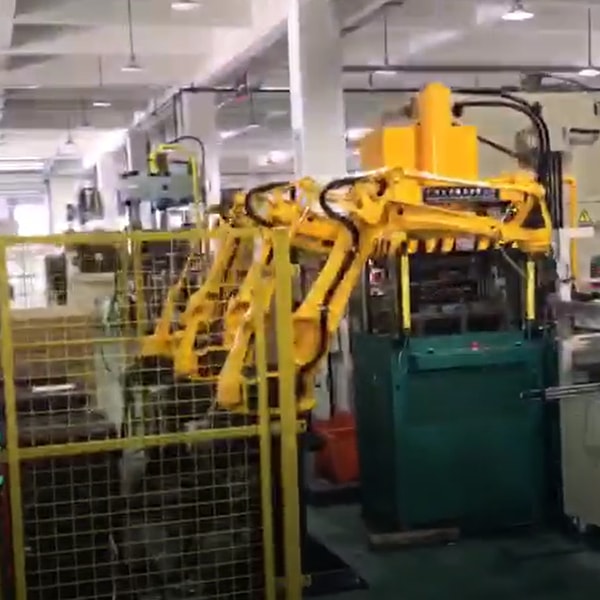

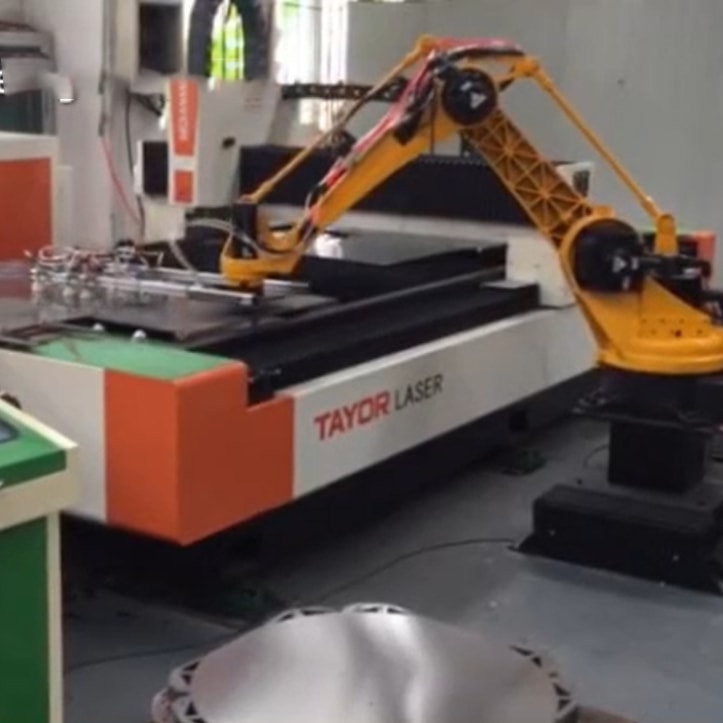

The DS1035B-190 is widely used in CNC automation, stamping production, laser cutting systems, and industrial transfer operations.
Supports handling tasks up to 35kg for medium and heavy industrial components.
1900mm arm reach provides flexible coverage across large automation cells and production lines.
Advanced joint motion design ensures smooth robotic movement during continuous production cycles.
Rigid structural framework improves operational stability and long-term durability.
Modular robot architecture enables convenient maintenance and reduced downtime.
Supports integration with conveyors, machine tools, grippers, and intelligent manufacturing systems.
| Item | Specification |
|---|---|
| Axis | 4 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 3.0KVA/payload: 35kg |
| Humidity | 0%-90%RH(No condensation ) |
| Body weight | 300kg |
| Vibration | ≤4.9m/s² |

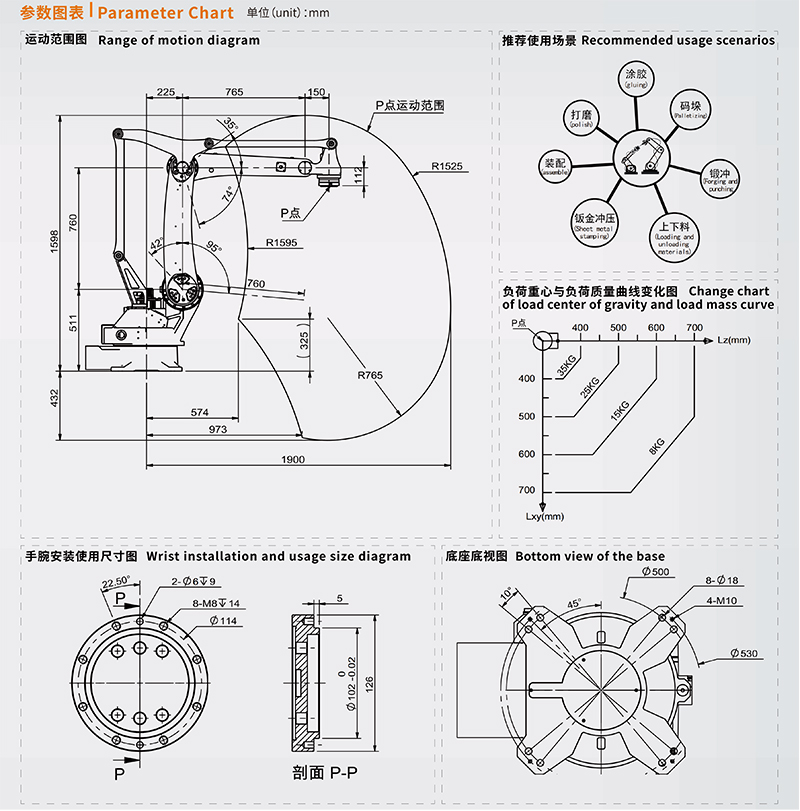

| Max Range | 1900mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.08mm |
| IP level | IP54（wrist:IP 67） |
| Installation | Ground |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 198°/s | - |
| J2 | +138°~-5° | 148°/s | - |
| J3 | +35°~-62° | 248°/s | - |
| J4 | ±360° | 222°/s | - |
| J5 | - | ||
| J6 | - |
