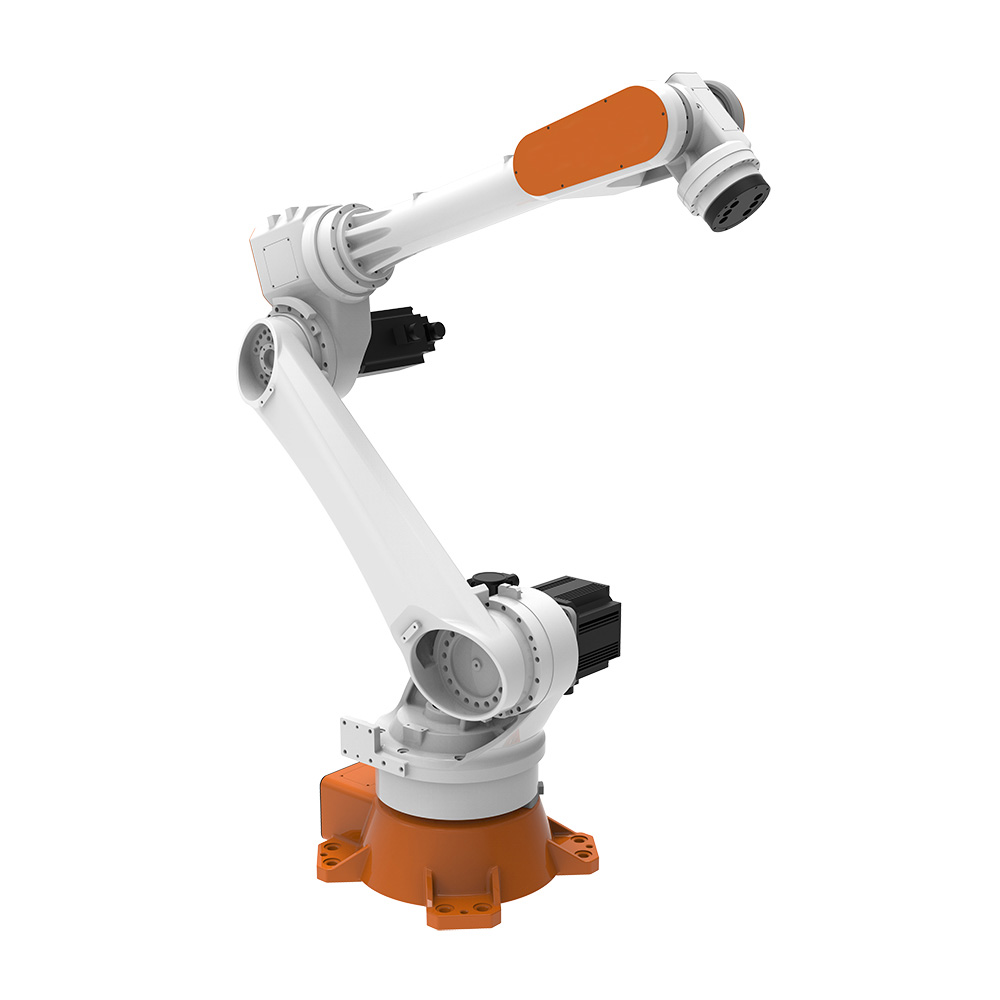

DS1050A-200 is a robust 6-axis industrial robot engineered for medium and heavy-duty automation applications. Featuring a 50 kg payload capacity and a 2000 mm working reach, the robot provides stable operation, reliable positioning accuracy, and efficient cycle performance in industrial manufacturing environments.

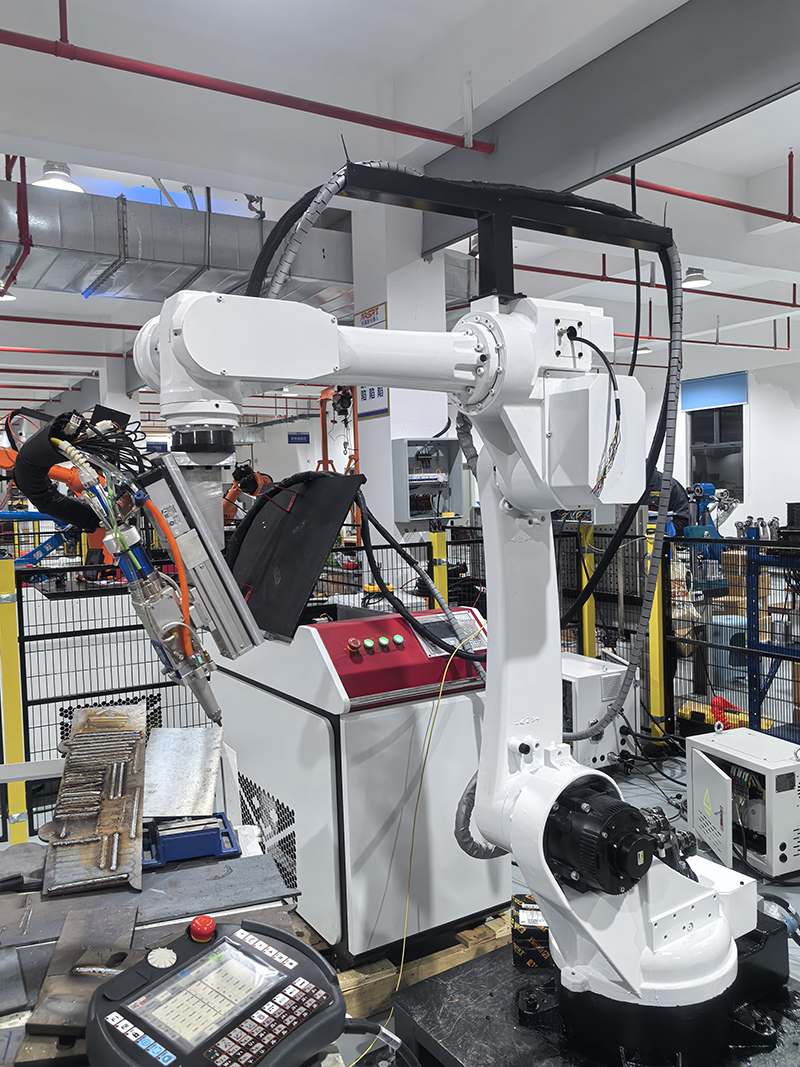

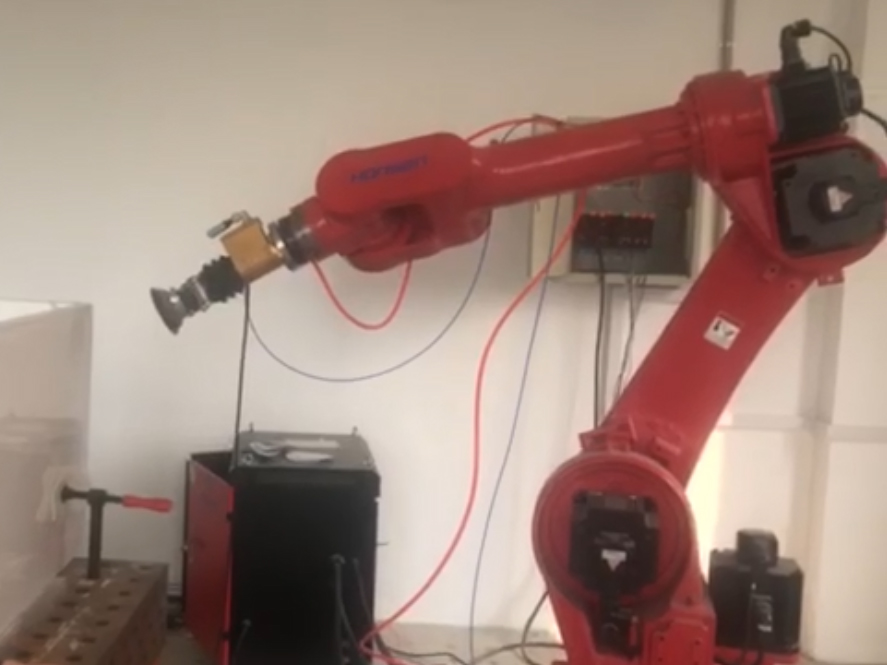

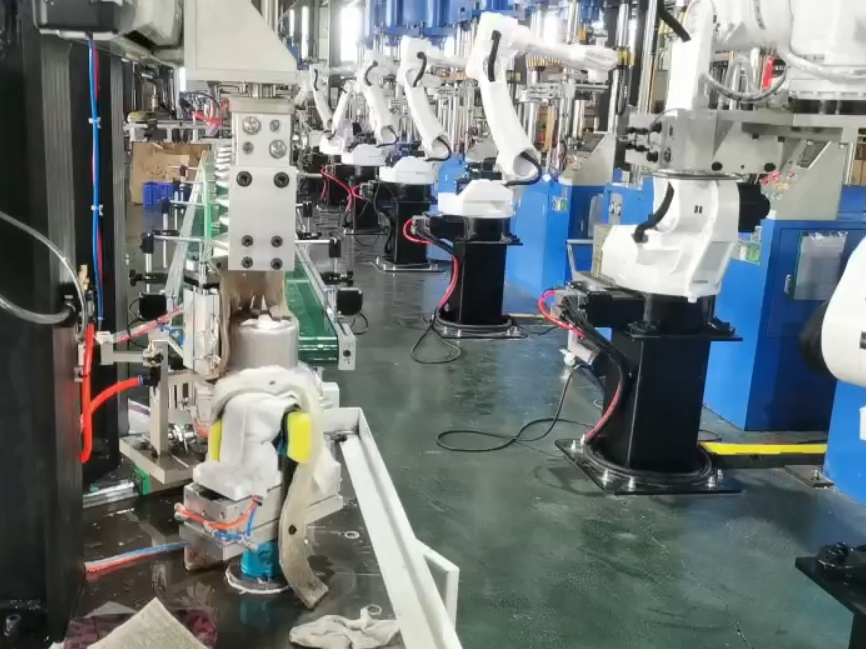

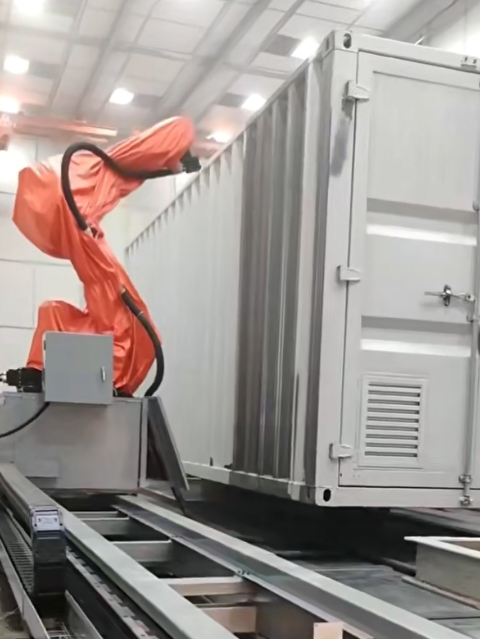

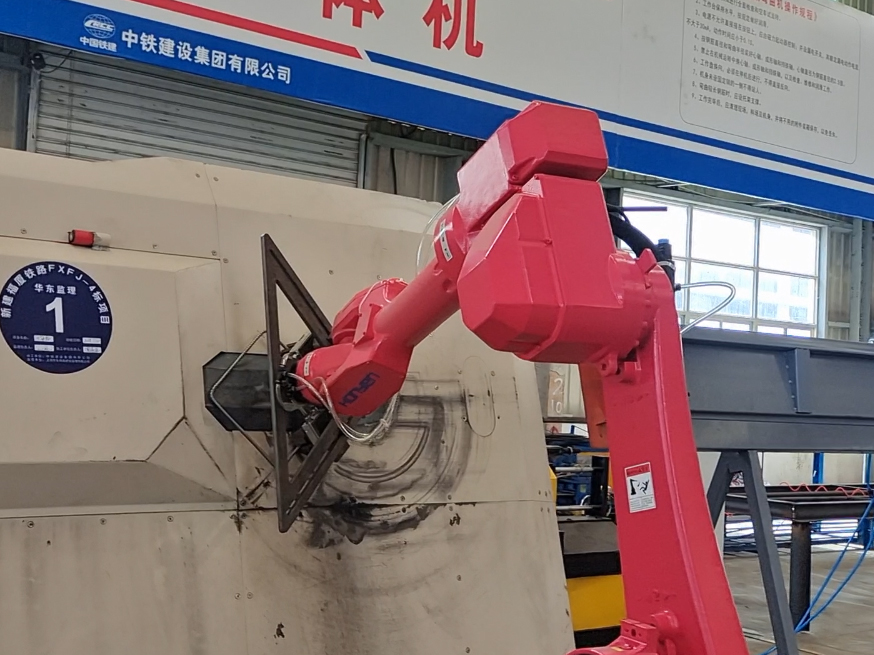

It is widely used for material handling, palletizing, stamping, grinding, polishing, and automated loading applications.
50 kg payload capacity supports larger industrial tools and materials.
Stable trajectory control improves production consistency.
Designed for long-term operation in demanding manufacturing environments.
Supports multiple industrial applications and process systems.
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 6.0KVA/payload: 50kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 380kg |
| Vibration | ≤4.9m/s² |

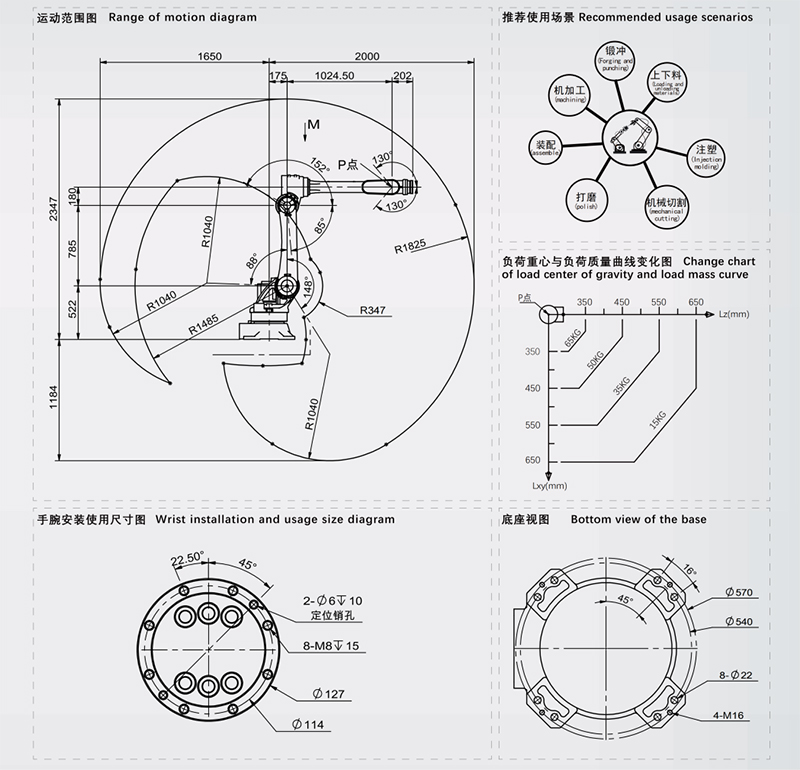

| Max Range | 2000mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.08mm |
| IP level | IP54/65（wrist） |
| Installation | Ground, Ceiling, Wall |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 120°/s | - |
| J2 | +88°~-148° | 115°/s | - |
| J3 | +85°~-152° | 124°/s | - |
| J4 | ±180° | 231°/s | - |
| J5 | +130°~-130° | 246°/s | - |
| J6 | ±360° | 209°/s | - |
