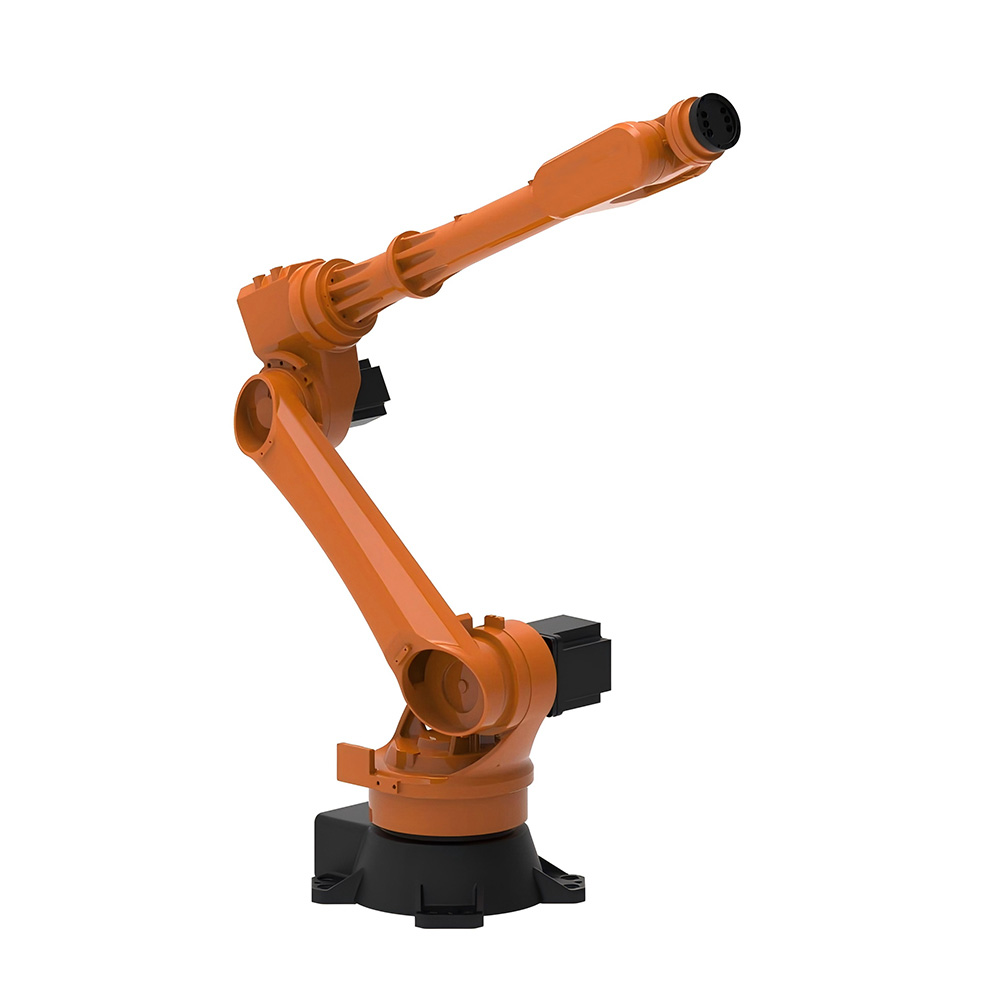

DS1050A-223 is a long-reach 6-axis industrial robot developed for large workspace automation and medium-to-heavy payload handling applications. With a maximum reach of 2230 mm and a 50 kg payload capacity, the robot offers extended working flexibility, stable motion control, and reliable industrial performance.

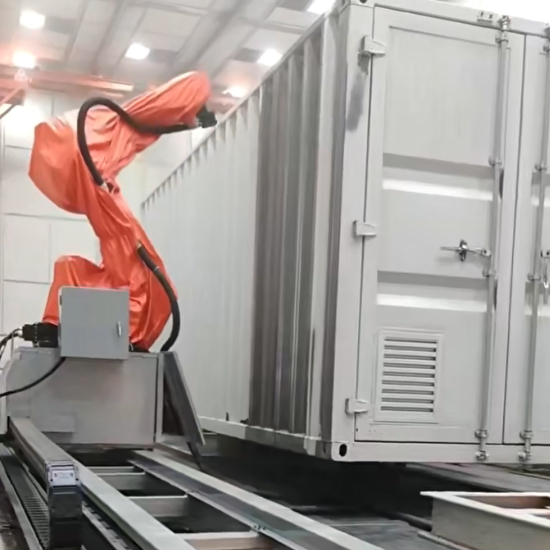

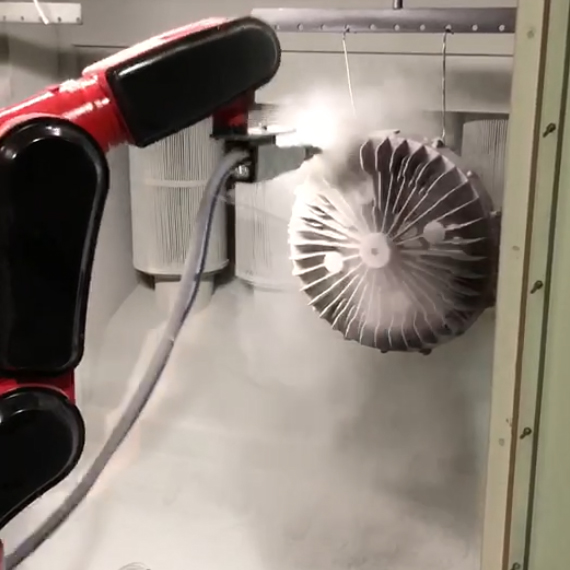

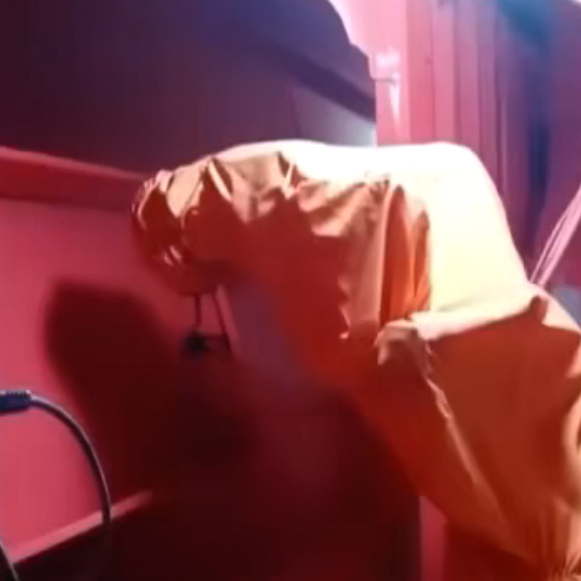

The system is suitable for painting application. The multi-functional robot can be used in various industries according to customer needs. The color can be customized.
2230 mm operating radius improves workspace coverage and production flexibility.
Supports heavy industrial components and tooling systems.
Optimized motion system improves productivity and operational consistency.
Suitable for floor-mounted, wall-mounted, and ceiling-mounted integration.
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 6.0KVA/payload: 50kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 388kg |
| Vibration | ≤4.9m/s² |
| Max Range | 2230mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.08mm |
| IP level | IP54/67（wrist） |
| Installation | Ground, Ceiling, Wall |

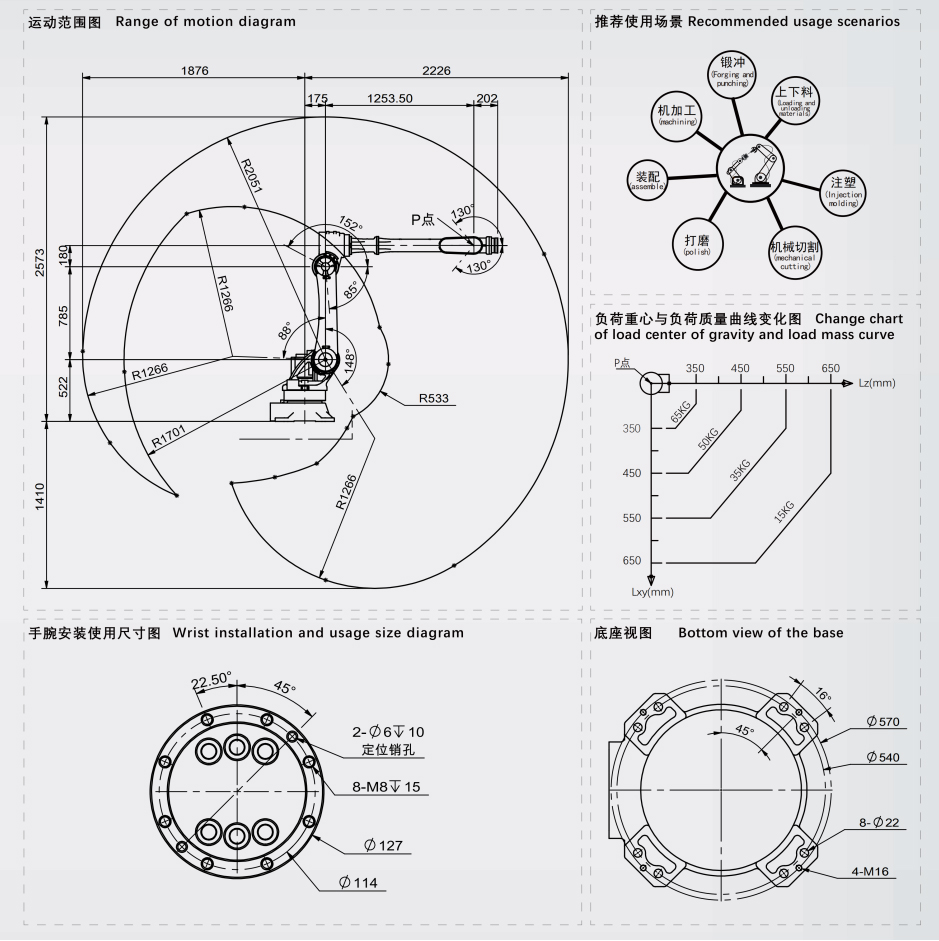

| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 120°/s | - |
| J2 | +88°~-148° | 115°/s | - |
| J3 | +85°~-152° | 124°/s | - |
| J4 | ±180° | 231°/s | - |
| J5 | +130°~-130° | 246°/s | - |
| J6 | ±360° | 209°/s | - |
