Drawn arc stud welding, IGBT inverter, long-distance welding, excellent arc ignition performance, adjustable welding time, dual-process for drawn arc stud welding & melt-in-electroslag welding, dual-circuit water-cooling.
Applicable for carbon steel studs & alloy studs. Widely used in floor deck, steel structure workshop, bridge engineering, boiler manufacturing, shipbuilding industry, equipment embedded parts, curtain wall anchor stud processing.
Soft-switch IGBT inverter, compact & lightweight, ultra-low noise beyond audio frequency
Built-in arc ignition circuit, smooth arc start, low spatter, stable current and perfect weld bead
High no-load voltage, compatible with long cables, stable welding for long-distance construction
Low copper & iron loss, high efficiency, energy saving during long continuous operation
Real-time 3-phase voltage display, quick phase loss detection for safer operation

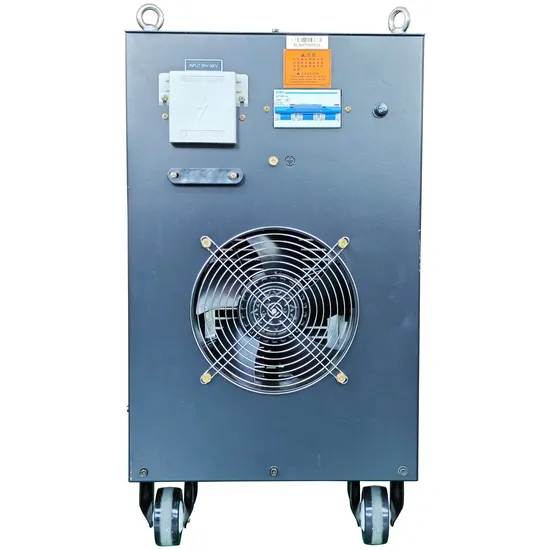

Dual-circuit forced air cooling, stable temperature under full load to prevent overheat shutdown
Adjustable welding time, dual functions: drawn arc stud welding and melting nozzle electro-slag welding
Adjustable torch, standard multi-size clamps and copper plates, manual & auto welding modes
Multi-protection of overcurrent, overheat and short circuit; reserved port for automatic tooling
ltem | RSN-2000I | RSN-2500I | RSN-3150I |
|---|---|---|---|
Power supply voltage (V Hz) | AC 380V+10% | AC 380V±10% | AC 380V±10% |
No-load voltage (V) | 85 | 85 | 85 |
Welding gun working voltage (V) | 80-110 | 80-110 | 80-110 |
Rated output power (KVA) | 60 | 80 | 100 |
Rated welding current (A) | 2000 | 2500 | 3150 |
adjust the range of Welding current (A) | 300-2000 | 300-2500 | 300-3150 |
Bolt diameter range (mm) | 6-19 | 6-25 | 6-32 |
Welding time (S) | 1-5 | 1-5 | 1-5 |
Welding speed | Φ6Φ10 2min, Φ12-Φ 16 1min, Φ19-Φ22 1min, Φ25 1min | Φ6Φ10 2min, Φ12-Φ 16 1min, Φ19-Φ22 1min, Φ25 1min | Φ6Φ10 2min, Φ12-Φ 16 1min, Φ19-Φ22 1min, Φ25 1min |
Output cable | Φ6-Φ1Can be used 50mm² ,Φ1The above uses 95mm² | Φ6-Φ1Can be used 50mm² ,Φ1The above uses 95mm² | Φ6-Φ1Can be used 50mm² ,Φ1The above uses 95mm² |
Parameter table display | AC380V No load voltage, welding time, ammeter | AC380V No load voltage, welding time, ammeter | AC380V No load voltage, welding time, ammeter |
Shell protection level | IP21 | IP21 | IP21 |
Insulation level | H | H | H |
Overall size L×WxH (mm) | 670×360×665 | 700×370×680 | 745×385×901 |
Weight (Kg) | 65 | 85 | 100 |
Standard configuration | Optional accessory |
|---|---|
Welding gun with 1 set of 15 meter positive pole cable | not have |
one set of earth cable 5 meters | not have |
One clamp each from 16-19-22 | not have |
1 ground wire head | not have |

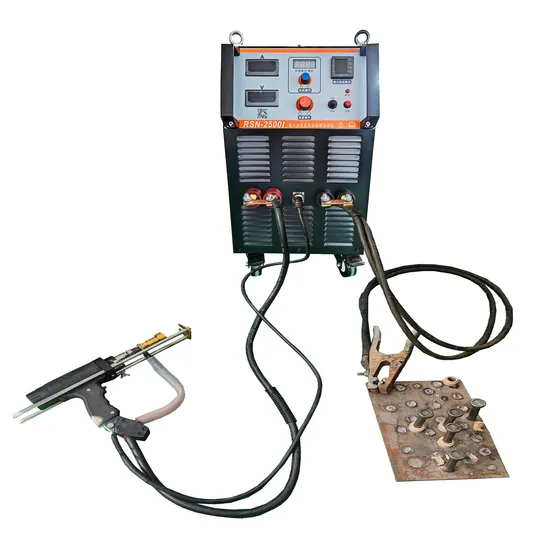

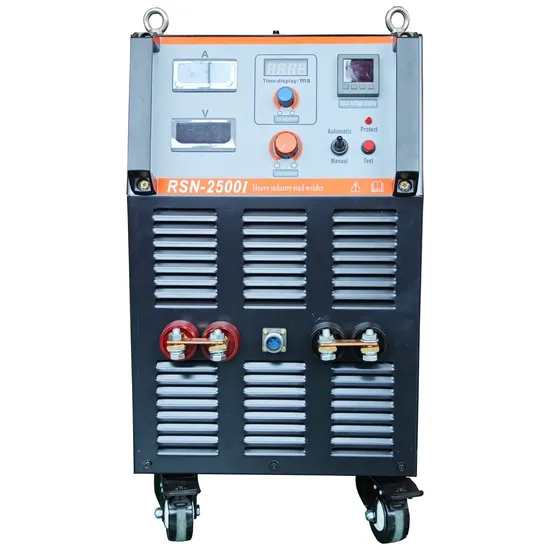

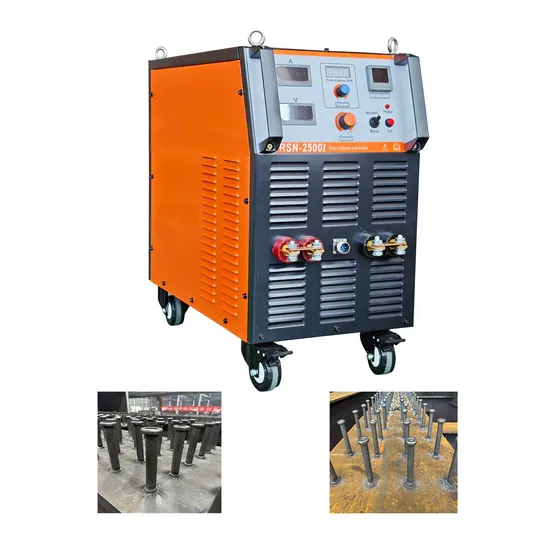

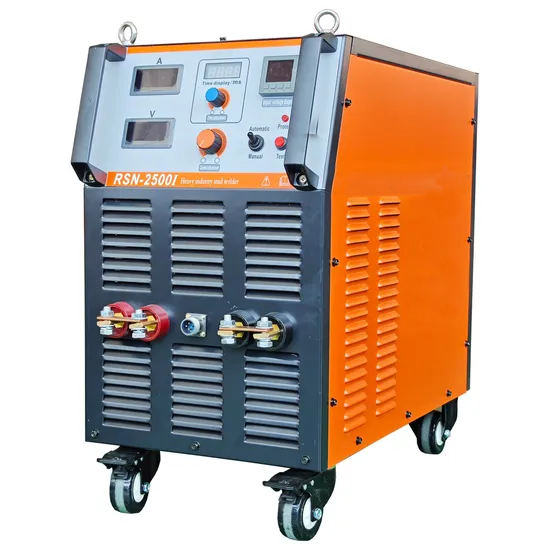

RSN-2500I (380V inverter type): Heavy-duty industrial main model, compatible with all M6-M25 shear studs. High no-load voltage supports long-distance field welding. Compared with traditional thyristor RSN-2500, it is lighter, energy-saving, low-noise and with better arc ignition performance.
Application scenarios: Mass welding of steel floor deck, bridge, shipbuilding, boiler and large embedded parts. Priority selection for projects requiring long continuous operation and long on-site wiring.
FAQ
Q1: What is the maximum stud size this welder can handle?
It is standardly compatible with M6-M25 carbon steel and alloy shear studs. For studs larger than M25, a higher-current model is required.
Q2: How to solve weak welding and poor arc ignition when the cable is extended?
The machine features high no-load output. Use thicker cables with a larger cross-section; check that the ground clamp is tightly secured with no rust or oil contamination to ensure good grounding; properly increase the no-load voltage parameter.
Q3: Why does the machine shut down automatically after prolonged operation?
This is most likely due to overheating protection. Check that both cooling fans are rotating properly and clean dust from the air intake vents. Avoid prolonged over-duty and overload welding; allow interval cooling between operations.
Q4: Large spatter or tilted studs after welding?
Clean rust, paint, and oil from the base metal surface; keep the torch perpendicular and firmly against the workpiece during welding; replace worn fixtures and positioning copper plates; readjust current and welding time parameters according to the stud diameter.
Q5: The panel shows a phase-loss fault and the machine won't start?
Check the external three-phase 380V input lines, circuit breaker, and terminal connections. Confirm that all three-phase voltages are balanced with no open circuits or loose connections.
Q6: Do I need a professional operator?
The equipment features adjustable and visualized parameters with standard process reference values. Operators can get started after simple training, and even beginners can consistently produce qualified weld studs.
