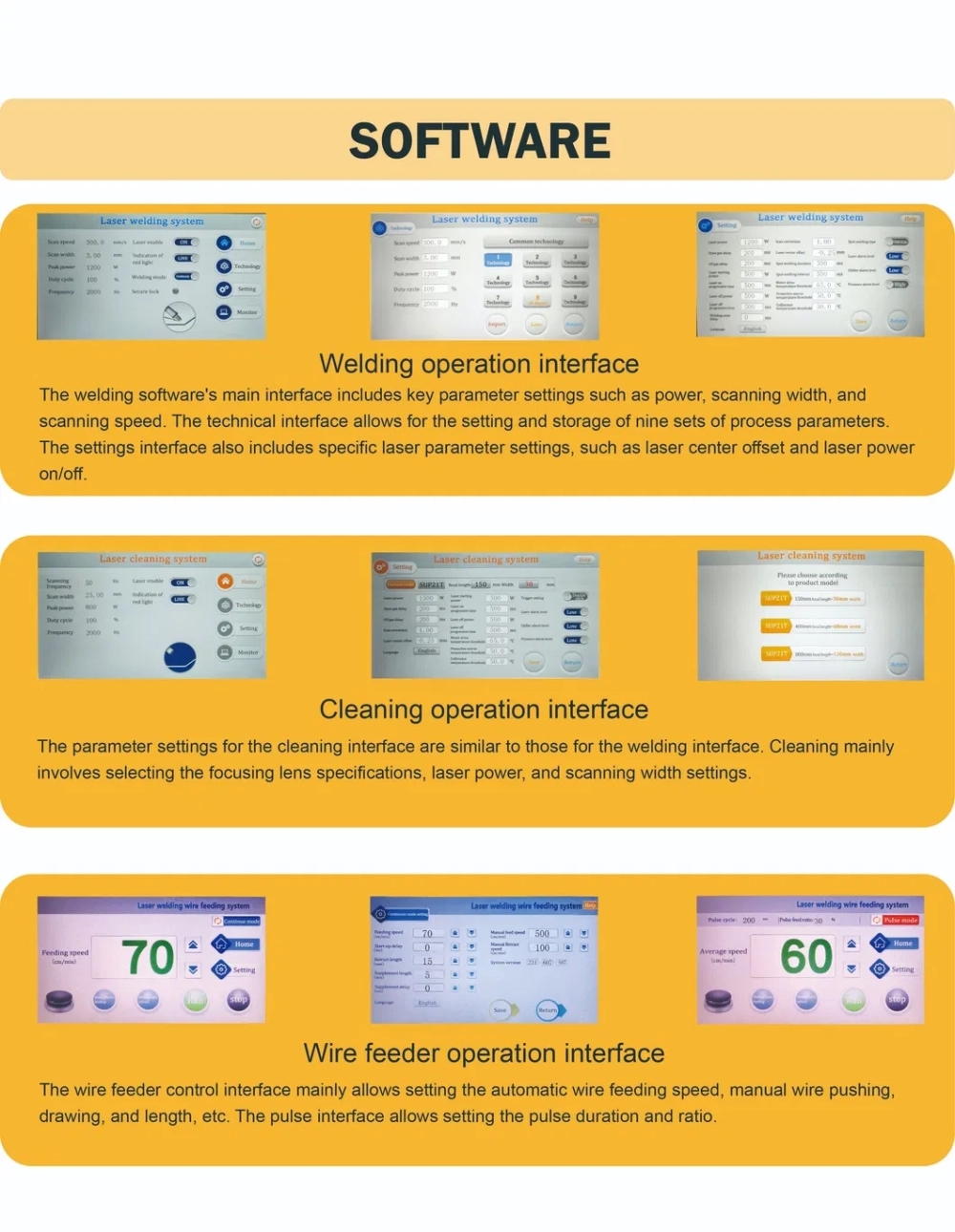

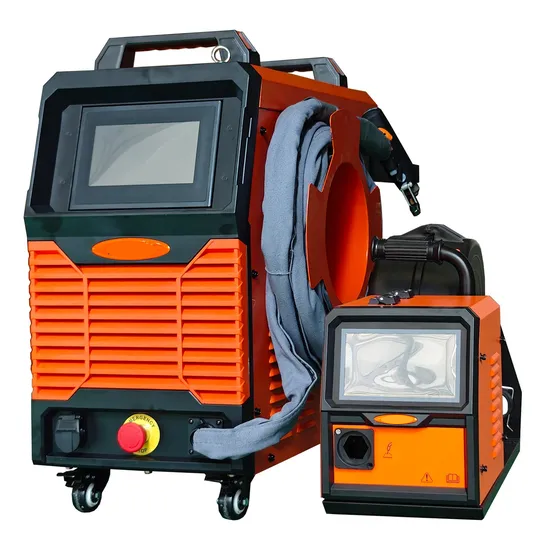

Handheld laser welding, cutting and rust removal 3-in-1, Raycus laser, air-cooled, plug-and-play, touch screen control, 9 process memory, integrated wire feeder, 8mm weld width.
Widely used for sheet metal welding of stainless steel, carbon steel, aluminum alloy, copper and galvanized sheet. Ideal for hardware processing, sheet metal fabrication, automotive maintenance and industrial precision welding scenarios.

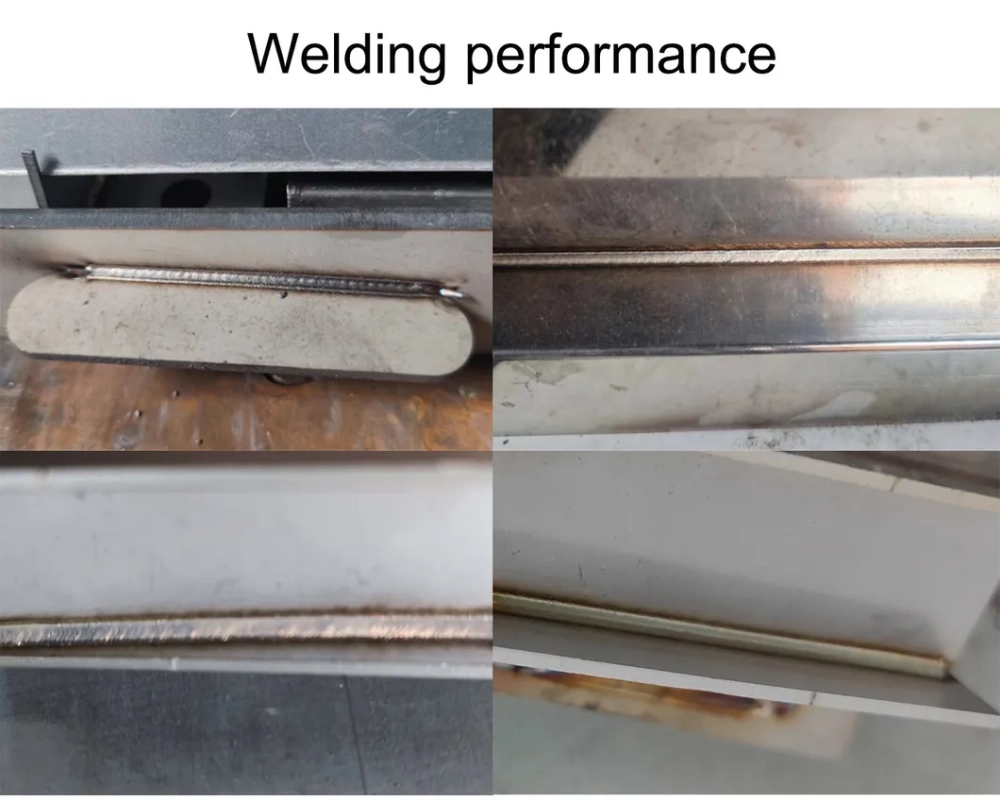

High working efficiency with one-time forming, minimal consumable loss and aesthetic weld seams, effectively saving overall production cost.
Built-in dual safety protection circuits to ensure long-term stable and safe equipment operation.
Reserved automatic welding interface, compatible with automated production equipment for diversified processing.

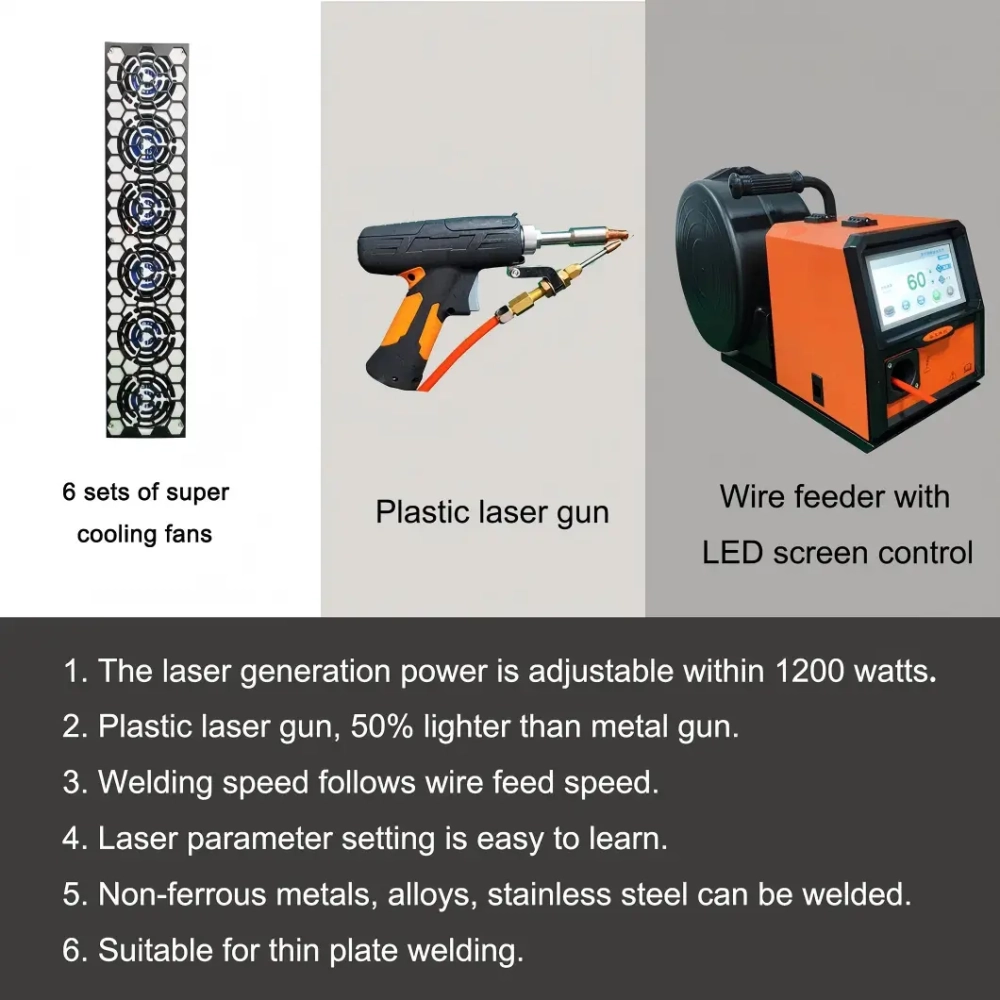

Independent air duct and multi-fan heat dissipation structure, excellent heat dissipation performance for non-stop heavy-duty operation.
Optimized wire feeder power layout, flexible mobile operation and wider working range.
Low operation threshold, no preheating required, suitable for various mobile field processing projects.
Ultra-stable laser beam, tiny processing deformation and high machining accuracy for precise sheet metal fabrication.
Item | A3F10 | A3F10-Y | A4F15 | A5F20 |
|---|---|---|---|---|
Fuselage | Cabinet type | Cabinet type | Cabinet type | Cabinet type |
Voltage | AC220V±5% 50Hz | AC220V±5% 50Hz | AC220V±5% 50Hz | AC220V±5% 50Hz |
Laser type | Continuous fiber laser | Continuous fiber laser | Continuous fiber laser | Continuous fiber laser |
Center wavelength (nm) | 1080±10 | 1080±10 | 1080±10 | 1080±10 |
Output power (W) | 850 | 850 | 1200 | 1500 |
Cooling method | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Fiber length (m) | 10 | 10 | 10 | 10 |
Protective gas | Argon and nitrogen gas | Argon and nitrogen gas | Argon and nitrogen gas | Argon and nitrogen gas |
Whole machine input power (kW) | 6.5 | 6.5 | 7.8 | 8.2 |
Pressure | weld>3bar cutting4-7bar | weld>3bar cutting4-7bar | weld>3bar cutting4-7bar | weld>3bar cutting4-7bar |
Equipment weight (kg) | host :28 wire feeder :15 | host :35 | host :45 wire feeder :15 | host :48 wire feeder :15 |
Packaging weight (kg) | 46.8 | 40 | 64 | 66.8 |
Host size (mm) | 570×270 ×540 | 650 ×380 ×680 | 600×320 ×590 | 600×320 ×590 |
Wire feeder size (mm) | 560 ×250 ×400 | / | 560 ×250 ×400 | 560 ×250 ×400 |

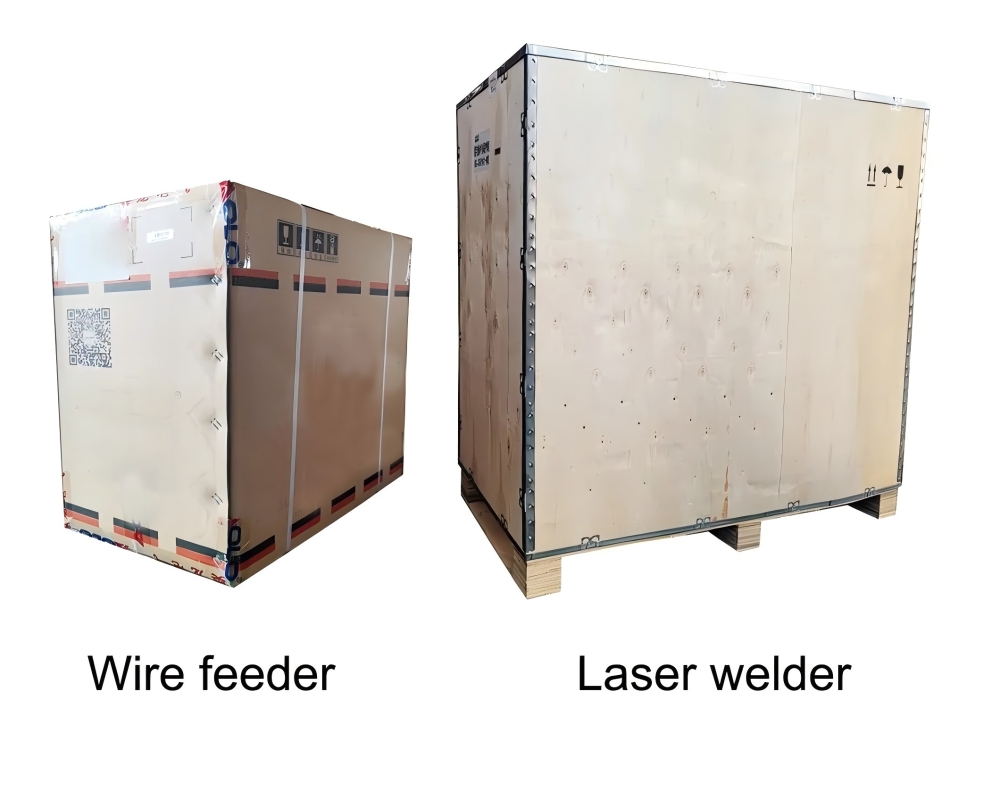

Host packaging size (mm) | 660×370 ×610 | 755×420 ×720 | 755×420 ×720 | 755×420 ×720 |
Working environment temperature | -10℃-40℃ | -10℃-40℃ | -10℃-40℃ | -10℃-40℃ |
Welding thickness (mm) | 0.5-3 | 0.5-3 | 0.5-4 | 0.5-5 |
Welding gap requirements (mm) | ≤1 | ≤1 | ≤1 | ≤1 |

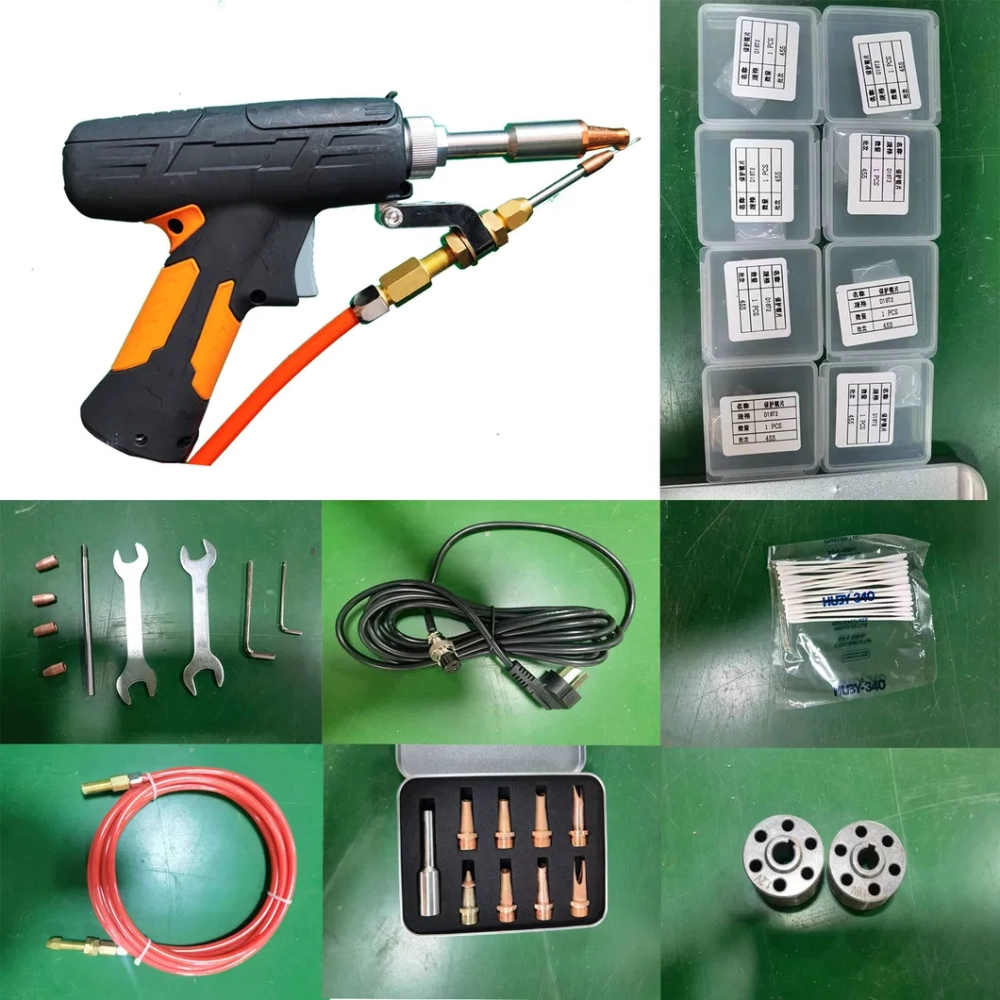

Standard configuration | Optional accessory |
|---|---|
set of wire feeder | |
ground wire | Argon gas meter |
wire feeder control line | |
protective lenses | Fixed gun mount |
gas hose | Gun head |
box of protective mouth | Protective glasses |
One 0.8/1.0/1.2/1.6 conductive nozzle each |

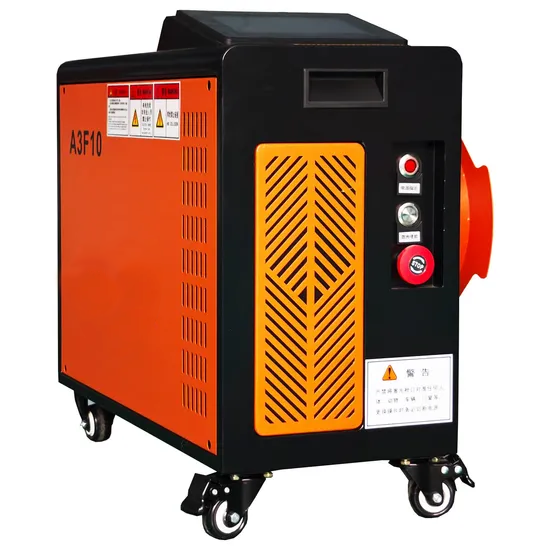

A3F10 (1000W): Entry-level air-cooled laser machine, cost-effective, perfect for thin sheet welding, rust removal and simple cutting of conventional metal materials.
A4F15 (1500W): Mid-power upgraded model, balanced performance, suitable for medium-thickness sheet metal processing, stable welding and cutting with wider application range.
A5F20 (2000W): High-power heavy-duty model, stronger penetration capacity, ideal for long-time continuous operation and high-precision thick plate processing.
Q1: What is the difference between air-cooled and water-cooled laser welding machines?
Air-cooled models require no chiller or water tank, making them smaller, lighter, easier to move, and lower in maintenance cost. They are ideal for small projects and on-site mobile operations. Water-cooled models are suitable for high-power, long-duration continuous heavy-duty operations.
Q2: What brand is the laser source?
This series uses Raycus fiber lasers, known for reliable quality and long service life.

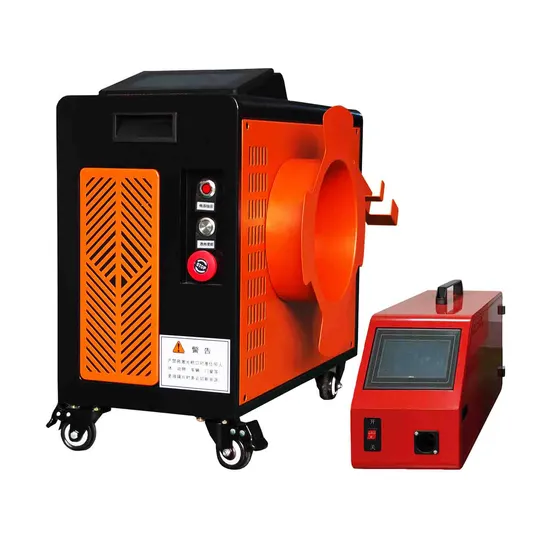

Q3: How does the wire feeder operate?
It is equipped with a fully automatic LCD touch screen dual-drive wire feeder, featuring a simple control interface for easy operation. It increases weld width and improves welding quality.
Q4: How effective is the cooling performance?

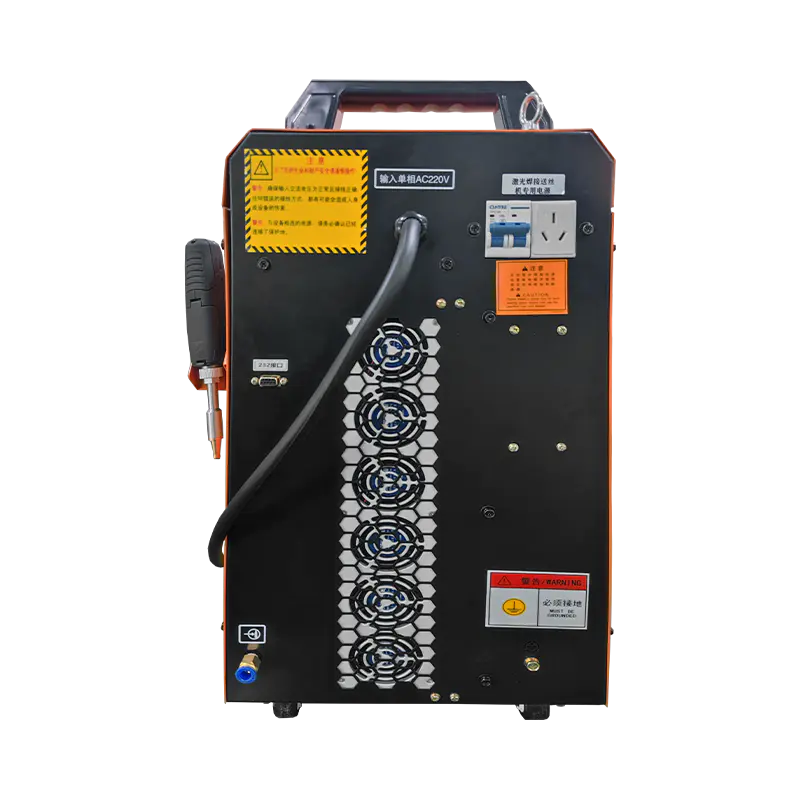

It adopts an independent air duct design with multiple powerful cooling fans at the rear of the machine, ensuring rapid heat dissipation and stable long-term operation.
