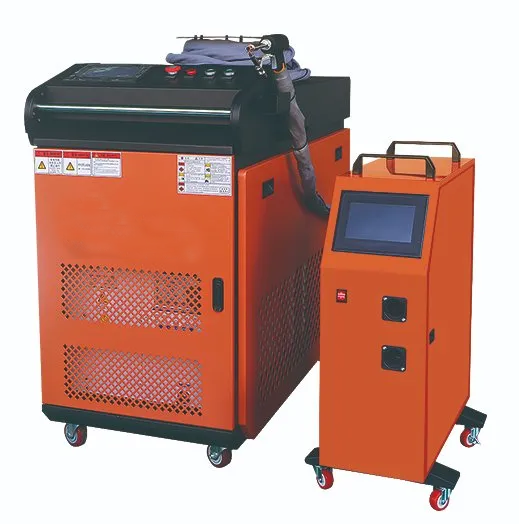

220V Water-Cooled Handheld Laser Welder, 3-in-1 Welding/Cutting/Rust Removal, Auto Wire Feeder, Touch Screen, 12m Optical Cable, Lightweight Torch, Suitable for Structural Welding.

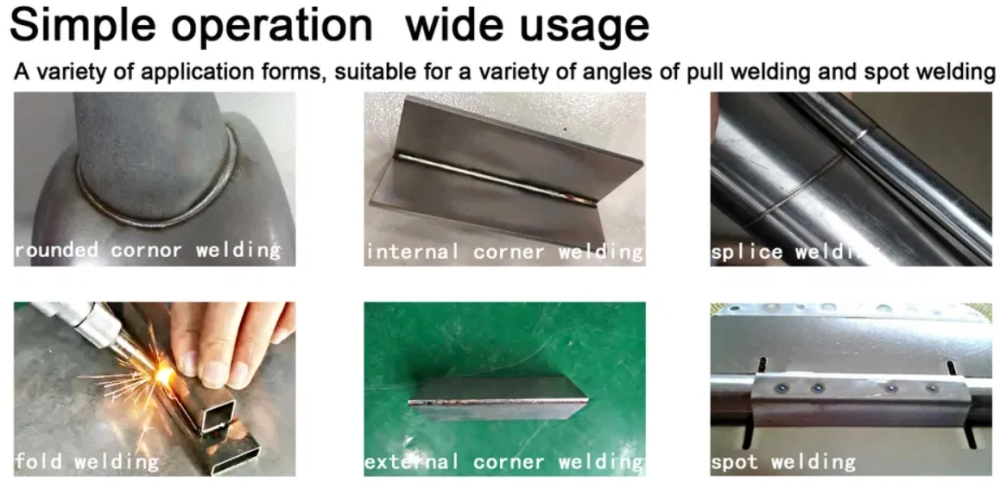

Sheet metal welding (including stainless steel, carbon steel, aluminum alloy, copper, and galvanized sheet). Widely used for structural parts fabrication, sheet-metal workshop, hardware production and equipment frame manufacturing.
Multilingual operation interface, more than 10 language options for quick & easy operation.

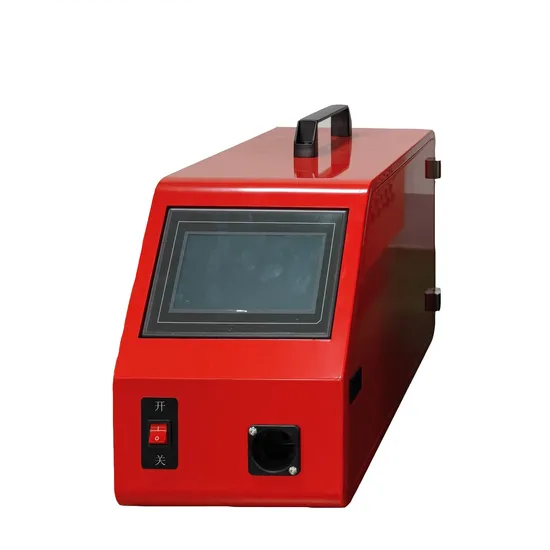

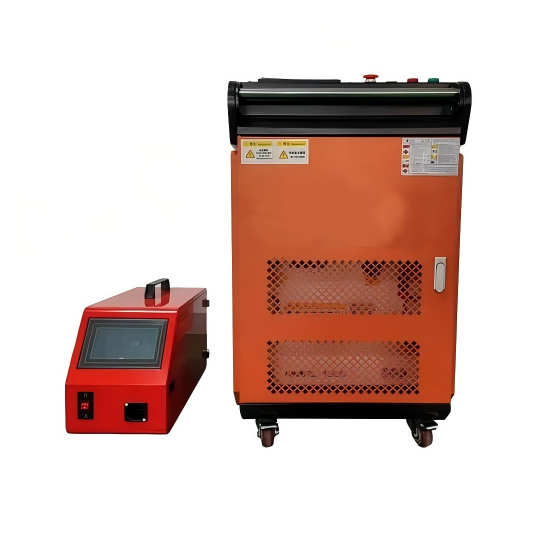

Automatic wire feeder with multi‑language control panel; dual‑wire‑drive rollers ensure stable and smooth wire feeding.
Max. optical cable length up to 12 meters, convenient for large‑scale on‑site construction work.

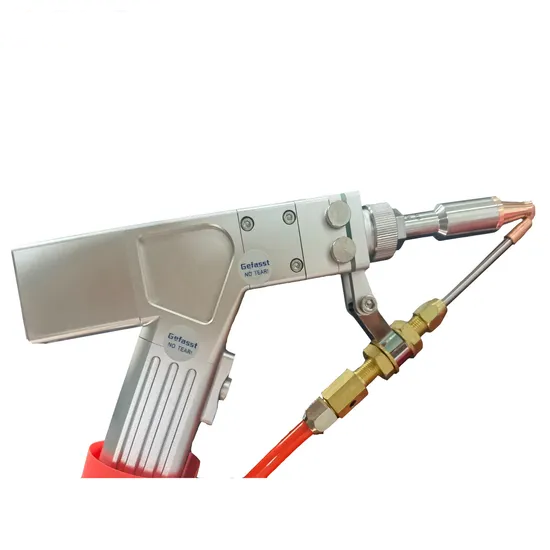

Light‑weight plastic laser gun, much lighter than traditional metal torch. Automatic wire feeding design realizes semi‑automatic welding and reduces operator fatigue.
Supplied with 10 pcs nozzles, to satisfy multi‑angle and diversified welding requirements.
Water‑cooled continuous stable output, high welding speed and high efficiency, perfect for structural‑part batch production.

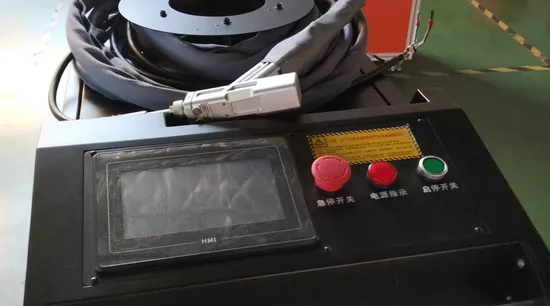

LCD touch‑screen control, 9‑sets process memory modes, max weld seam width up to 8 mm.
Built‑in dual protection circuits to guarantee safe and reliable laser operation.
Reserved automatic welding port for simple and direct automation docking.
Parameter | 1500 | 2000 | 3000 |
|---|---|---|---|
Output power (W) | 1500 | 2000 | 3000 |
Cooling method | water-cooling | water-cooling | water-cooling |
Fiber length (m) | 10 | 10 | 10 |
Protective gas | Argon and nitrogen gas | Argon and nitrogen gas | Argon and nitrogen gas |
Whole machine input power (kW) | 8.2 | 9 | 12 |
Pressure | weldbar cutting 4-7bar | weldbar cutting 4-7bar | weldbar cutting 4-7bar |
Equipment weight (kg) | host:145wire feeder:15 | host:185wire feeder:15 | host:252wire feeder:15 |
Packaging weight (kg) | 160 | 200 | 267 |
Host size (mm) | Middle cabinet 890×495×810 | Large cabinet 895×570×875 | Large cabinet 1140×570×925 |
AOLO Cabinet packaging size (mm) | 1060×590×1070 | 1020×690×1200 | 1220×700×1280 |
HANLI Integrated machine packaging size(mm) | 1040×470×880 | 1040×470×880 | - |
Wire feeder size (mm) | Single-wire 560×250×400 | Single-wire 560×250×400 | Double-wire 600×250×740 |
Packaging size of wire feeder (mm) | Single-wire 630×320×460 | Single-wire 630×320×460 | Double-wire 670×340×800 |
Working environment temperature (℃) | -10℃-40℃ | -10℃-40℃ | -10℃-40℃ |
Welding thickness (mm) | 0.5-4 | 0.5-6 | 0.5-8 |
Welding gap requirements (mm) | ≤1 | ≤1 | ≤1 |
Standard configuration | Optional accessory |
|---|---|
1 set of wire feeder | Argon gas meter |
1 ground wire | Fixed gun mount |
1 wire feeder control line | Gun head |
5 protective lenses | Protective glasses |
1 gas hose | Rust-removal kit |
1 box of protective nozzles | |
One 0.8/1.0/1.2/1.6 conductive nozzle each |

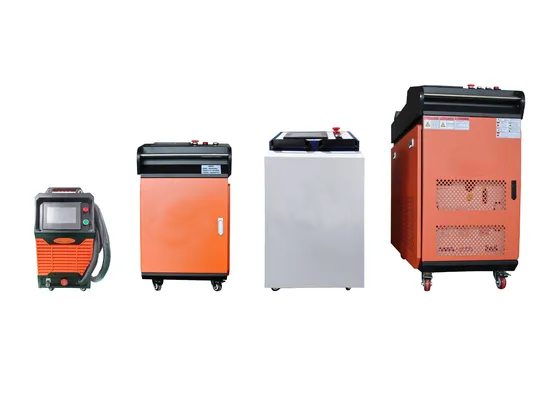

ALY-15001500W-220V: Entry water-cooled model, good for thin-&-medium sheet metal and light structural parts.
ALY-20002000W-220V: Balanced industrial version, higher penetration for medium-thick plates and frequent batch work.
ALY-30003000W-380V: Heavy-duty high-power model, excellent for thick structural components and long-time non-stop production.
Q1: What material thickness can this machine handle?
It depends on power output: 1500W handles 0.3-4.5mm; 2000W handles 0.3-6.5mm; 3000W handles 0.3-8mm (stainless steel/carbon steel). For aluminum and copper, thinner materials are recommended for optimal results.

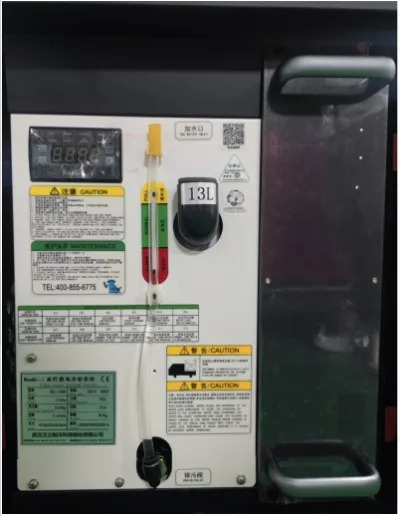

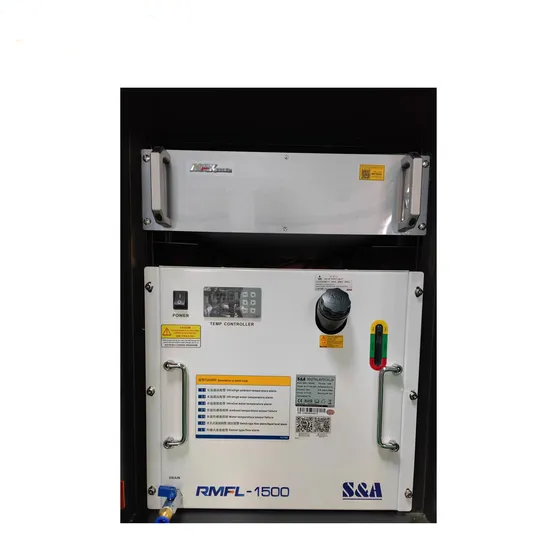

Q2: What coolant should I use for the water chiller? How often should I change it?
Use distilled or purified water. Replace every 2-3 months. In cold winter conditions, add antifreeze to prevent freezing damage to the water circuit.
Q3: What brand is the laser source?
This series uses high-quality fiber lasers with high electro-optical conversion efficiency, long service life, and stable, reliable welding quality.
Q4: Why is the welding torch made of plastic?
It features a lightweight engineering plastic shell torch, much lighter than traditional metal torches. Combined with the auto wire feeder, it eliminates the need to pull the torch forcefully during welding, enabling semi-automatic operation and significantly reducing operator fatigue.

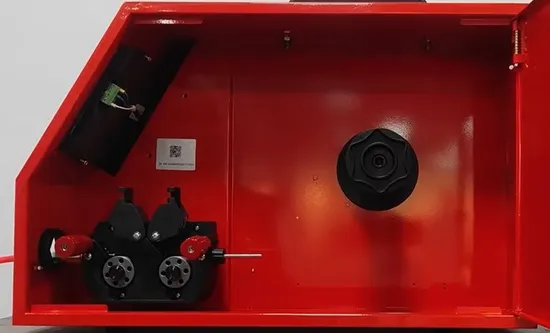

Q5: What are the features of the wire feeder?
It comes with an auto wire feeder featuring a dual-drive wheel design for smooth, jam-free wire feeding. The touch screen control interface works seamlessly with the main unit for simple operation.
Q6: Do operators need professional welding experience?
No. With built-in preset process modes, operators can get started after simple training. The multi-language touch screen makes parameter settings intuitive – even beginners can master it quickly.
