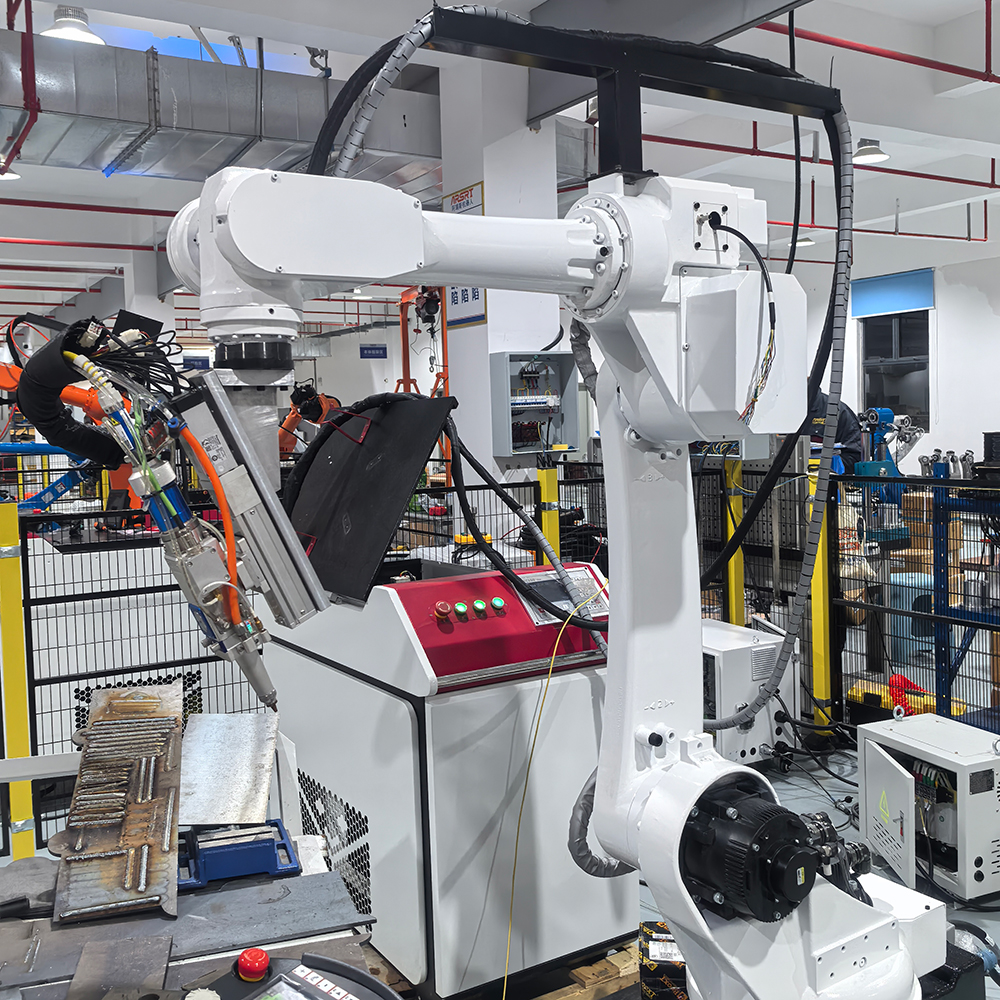

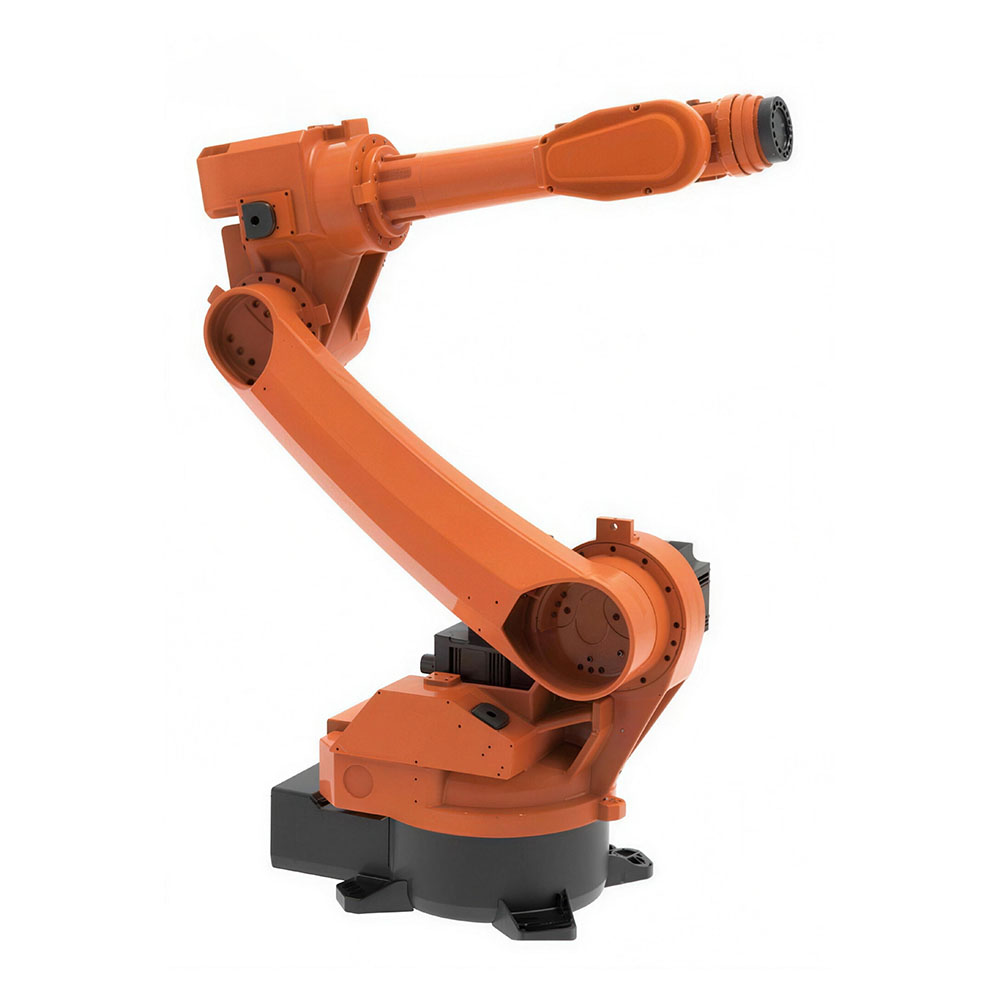

DS1035A-180 industrial robot features 35kg payload, 1800mm reach, high-speed precision control, and flexible automation for laser cutting, plasma cutting, handling, painting, and grinding applications.
Supports different industrial tools and end-effectors for diverse automation tasks.
Optimized transmission structure improves positioning repeatability and operational stability.
High-speed servo control system ensures accurate robotic movement during continuous production.
Supports EtherCAT and Modbus communication protocols for efficient automation integration.
Industrial-grade components help minimize downtime and extend service life.
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 6.0KVA/payload: 35kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 334kg |
| Vibration | ≤4.9m/s² |

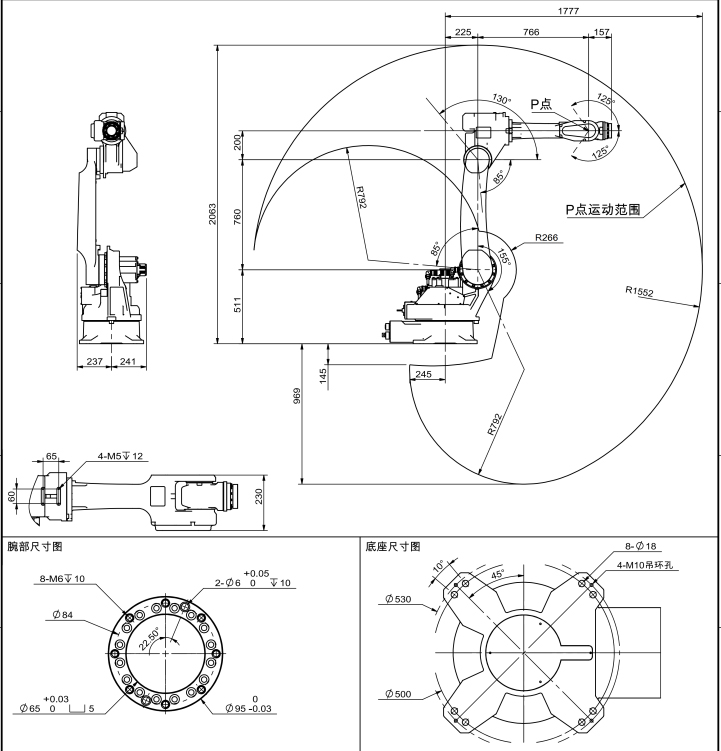

| Max Range | 1800mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.05mm |
| IP level | IP54/65（wrist） |
| Installation | Ground, Ceiling, Wall |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±170° | 162°/s | - |
| J2 | +85°~-155° | 112°/s | - |
| J3 | +130°~-85° | 148°/s | - |
| J4 | ±170° | 295°/s | - |
| J5 | +125°~-125° | 220°/s | - |
| J6 | ±360° | 207°/s | - |
