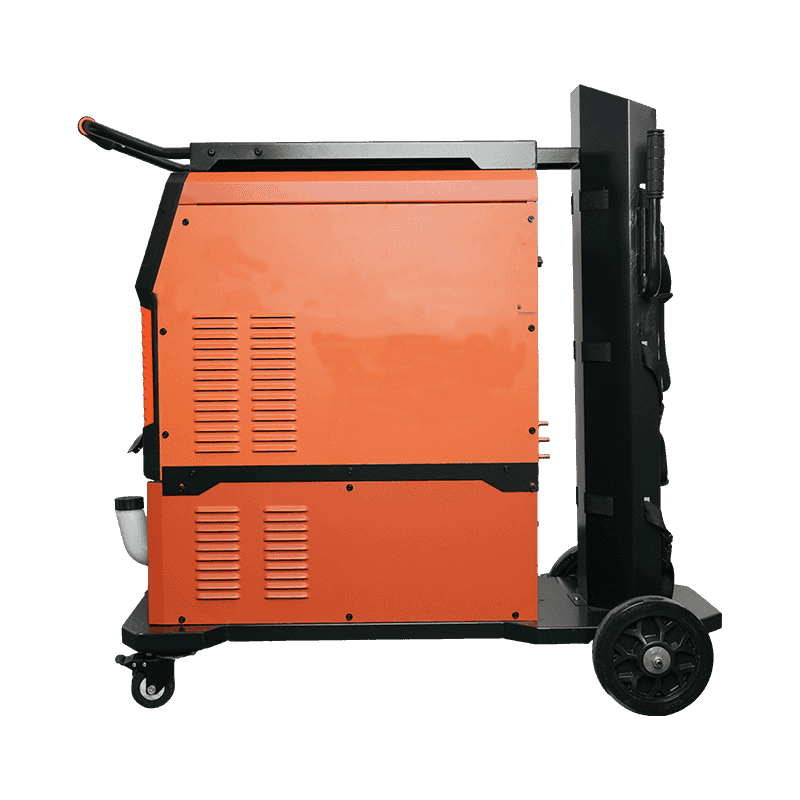

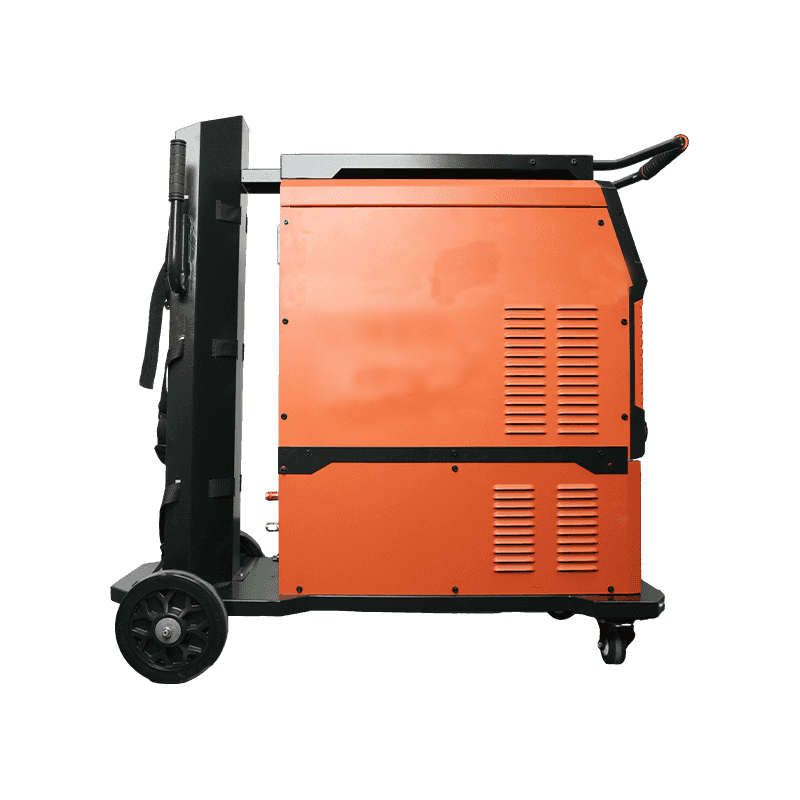

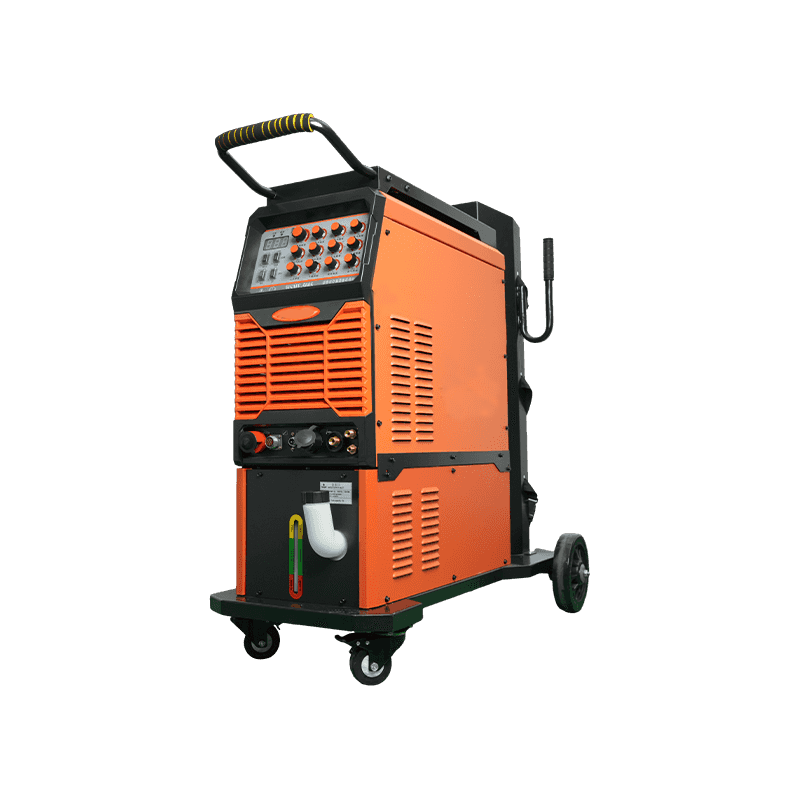

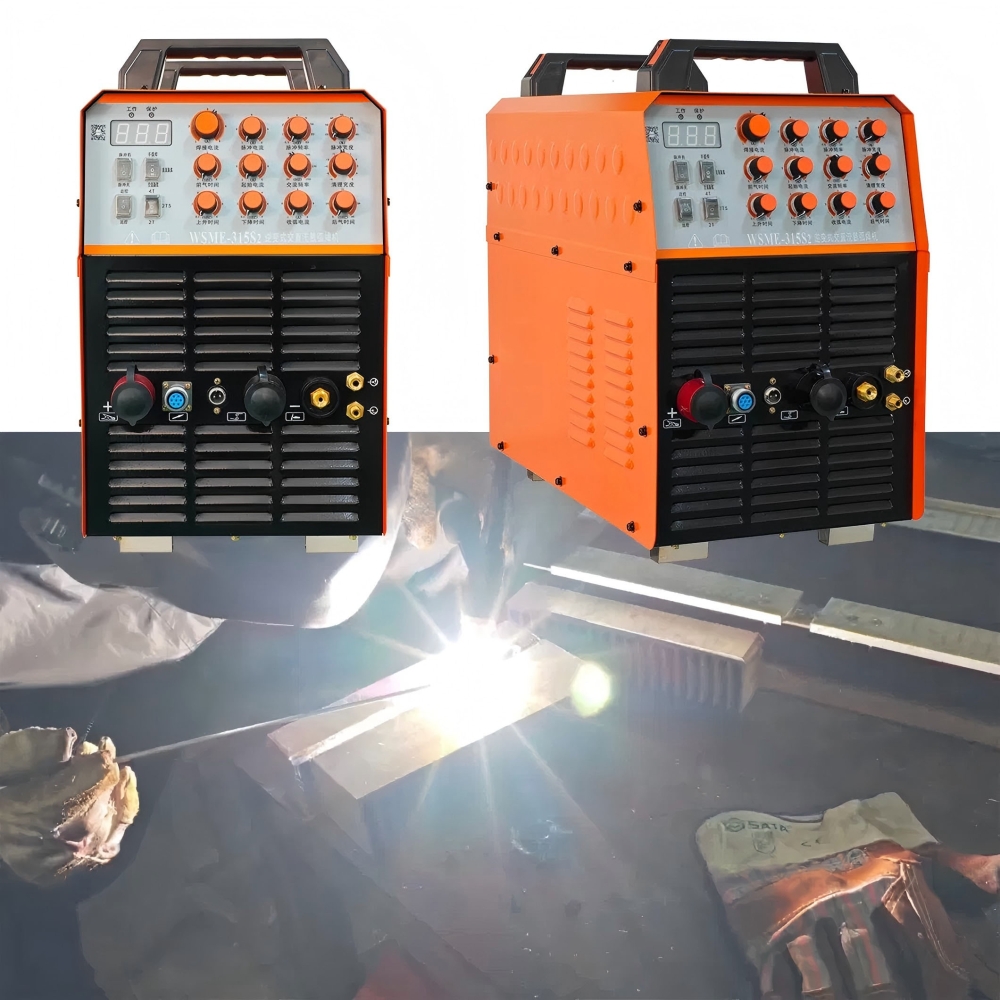

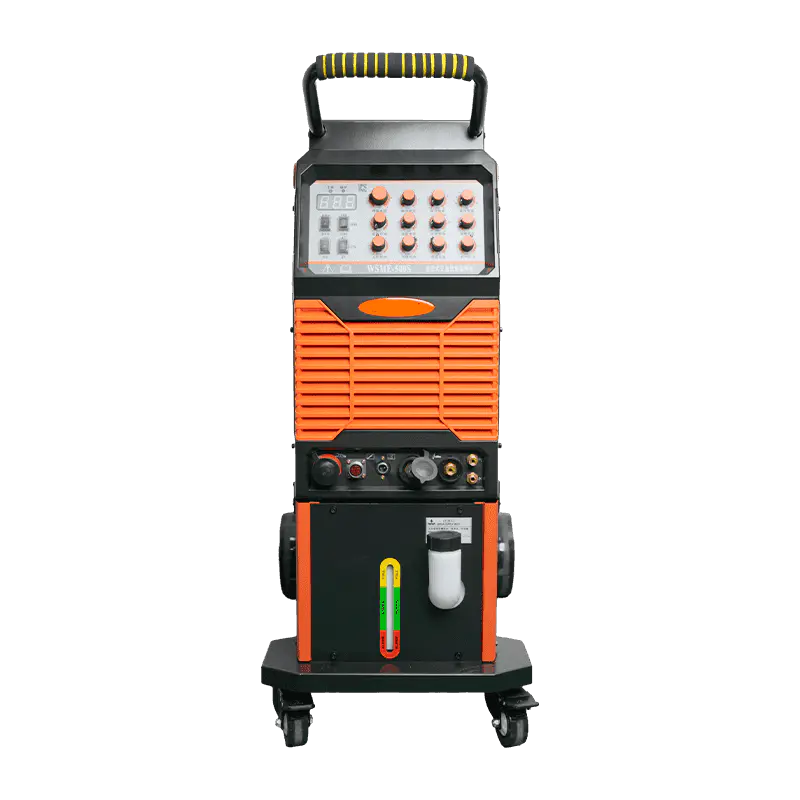

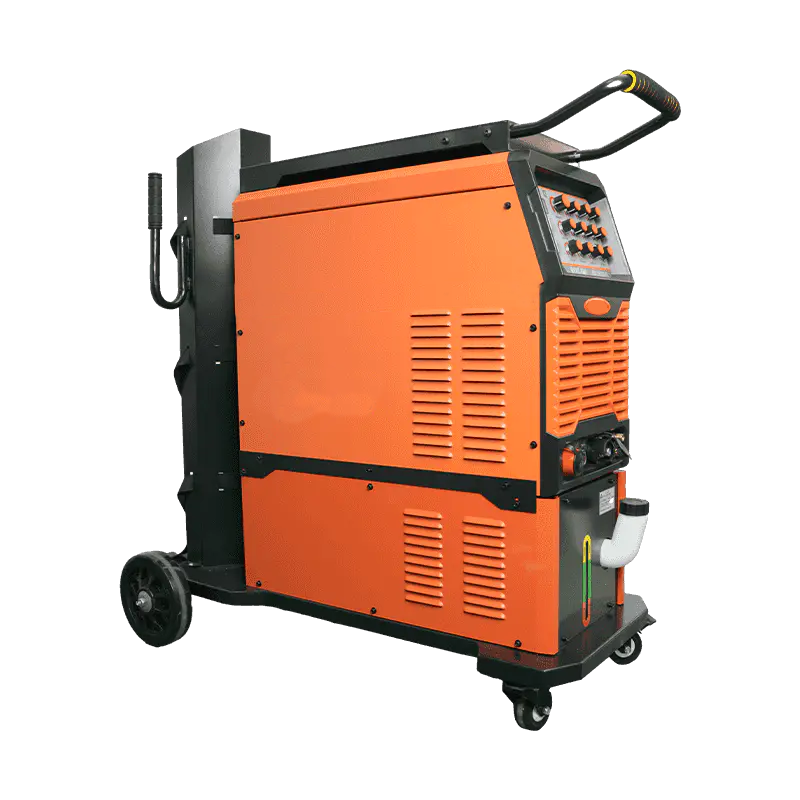

AC TIG, DC constant current TIG, DC pulse TIG, MMA, four-in-one, fully digital control, IGBT inverter, adjustable AC frequency/cleaning width, short/long/special 2-step welding modes, water-deficient protection, 1A arc start, waveform control, anti-ball at arc end, remote control/foot pedal, robot interface, independent air duct.
It is applicable for welding aluminum and aluminum alloy, stainless steel, carbon steel, copper, titanium and other metal sheets, widely used in petrochemical industry, pressure vessels, power construction, shipbuilding, engineering machinery, steel structure, bicycle manufacturing, nuclear power and pipeline installation industries.
Fully digital high-precision constant current control with precise parameter presetting.
Independently adjustable AC frequency and cleaning width for different aluminum materials.
High-frequency arc starting, stable arc, and easy molten pool control.
Water-deficient protection, automatic temperature detection, and 1A precise arc start.
Waveform control for low spatter, smooth weld appearance, and deep penetration.
Independent air duct design for reliable and stable operation in harsh environments.
Remote control and foot pedal interface for remote welding current adjustment.
Robot interface, an ideal power source for automated welding.
500S/630S support up to 50m extended cables, with optional II(a) type synchronization for dual-side arc welding.
ltem | TIG (WSME)-315S/EP | TIG (WSME)-315S/EP | TIG (WSME)-400S/EP | TIG (WSME)-400S/EP | TIG (WSME)-500S/EP | TIG (WSME)-500S/EP | TIG (WSME)-630S/EP | TIG (WSME)-630S/EP |
|---|---|---|---|---|---|---|---|---|
Rated input voltage Frequency | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz | Three phase 380V+10% 50Hz |
Rated input power(KVA) | 13.0 | 13.0 | 17.8 | 17.8 | 25.7 | 25.7 | 34.9 | 34.9 |
Rated input current(A) | 20 | 20 | 27 | 27 | 39 | 39 | 53 | 53 |
Rated load persistence rate(%) | 60 | 60 | 60 | 60 | 80 | 80 | 80 | 80 |
Output no-load voltage (V) | 62 | 62 | 62 | 62 | 72 | 72 | 72 | 72 |
Output current range (A) | DC 1-315 | AC 10-315 | DC 5-400 | AC 10-400 | DC 5-500 | AC 10-500 | DC 5-630 | AC 10-630 |
Arcing current(A) | DC 1-315 | AC 10-315 | DC 5-400 | AC 10-400 | DC 5-500 | AC 10-500 | DC 5-630 | AC 10-630 |
Peak current(A) | DC 1-315 | AC 10-315 | DC 5-400 | AC 10-400 | DC 5-500 | AC 10-500 | DC 5-630 | AC 10-630 |
Arc current (A) | DC 1-315 | AC 10-315 | DC 5-400 | AC 10-400 | DC 5-500 | AC 10-500 | DC 5-630 | AC 10-630 |
Current ramp up time(S) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 |
Current decay time (S) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 |
Advance gas delivery time (S) | 0-1 | 0-1 | 0-1 | 0-1 | 0-1 | 0-1 | 0-1 | 0-1 |
Lagged gas stop time (S) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
Pulse frequency (Hz) | 0.5-500 | 0.5-500 | 0.5-500 | 0.5-500 | 0.5-500 | 0.5-500 | 0.5-500 | 0.5-500 |
Pulse duty cycle(%) | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 |
Composite pulse frequency (Hz) | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-10 |
Composite pulse width(%) | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 | 15-85 |
Communication frequency (Hz) | 15-150 | 15-150 | 15-150 | 15-150 | 15-150 | 15-150 | 15-150 | 15-150 |
Cleaning width(%) | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 | 10-65 |
TIGTlG arc ignition method | High frequency lifting arc ignition | High frequency lifting arc ignition | High frequency lifting arc ignition | High frequency lifting arc ignition | High frequency lifting arc ignition | High frequency lifting arc ignition | High frequency lifting arc ignition | High frequency lifting arc ignition |
Electric shock prevention function (VRD) | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% |
Torch cooling type | Forced air cooling Water-cooling | Forced air cooling Water-cooling | Forced air cooling Water-cooling | Forced air cooling Water-cooling | Forced air cooling Water-cooling | Forced air cooling Water-cooling | Forced air cooling Water-cooling | Forced air cooling Water-cooling |
Overall size L×W×H(mm) | 640×320×590 | 640×320×590 | 640×320×590 | 640×320×590 | 760×320×590 | 760×320×590 | 745×420×901 | 745×420×901 |
Insulation level | H | H | H | H | H | H | H | H |
Weight (Kg) | 40 | 40 | 42 | 42 | 60 | 60 | 95 | 95 |
Item | WSME-315S/EP | WSME-400S/EP | WSME-500S/EP | WSME-630S/EP |
|---|---|---|---|---|
Rated Input Voltage/Frequency | 3-Phase 380V±10%, 50Hz | 3-Phase 380V±10%, 50Hz | 3-Phase 380V±10%, 50Hz | 3-Phase 380V±10%, 50Hz |
Rated Input Power (KVA) | 13 | 17.8 | 25.7 | 34.9 |
Rated Input Current (A) | 20 | 27 | 39 | 53 |
Rated Duty Cycle (%) | 60 | 60 | 80 | 80 |
Output No-Load Voltage (V) | 62 | 62 | 72 | 72 |
Output Current Range (A) | DC 1–315 / AC 10–315 | DC 5–400 / AC 10–400 | DC 5–500 / AC 10–500 | DC 5–630 / AC 10–630 |
Arcing Current (A) | DC 1–315 / AC 10–315 | DC 5–400 / AC 10–400 | DC 5–500 / AC 10–500 | DC 5–630 / AC 10–630 |
Peak Current (A) | DC 1–315 / AC 10–315 | DC 5–400 / AC 10–400 | DC 5–500 / AC 10–500 | DC 5–630 / AC 10–630 |
Arc Closing Current (A) | DC 1–315/AC 10–315 | DC 5–400/AC 10–400 | DC 5–500 / AC 10–500 | DC 5–630 / AC 10–630 |
Current Ramp-Up Time (S) | 0–15 | 0–15 | 0–15 | 0–15 |
Current Decay Time (S) | 0–15 | 0–15 | 0–15 | 0–15 |
Pre-Flow Gas Time (S) | 0–1 | 0–1 | 0–1 | 0–1 |
Post-Flow Gas Time (S) | 0–60 | 0–60 | 0–60 | 0–60 |
Pulse Frequency (Hz) | 0.5–500 | 0.5–500 | 0.5–500 | 0.5–500 |
Pulse Duty Cycle (%) | 15–85 | 15–85 | 15–85 | 15–85 |
Composite Pulse Frequency (Hz) | 0.5–10 | 0.5–10 | 0.5–10 | 0.5–10 |
Composite Pulse Width (%) | 15–85 | 15–85 | 15–85 | 15–85 |
AC Frequency (Hz) | 15–150 | 15–150 | 15–150 | 15–150 |
Cleaning Width (%) | 10–65 | 10–65 | 10–65 | 10–65 |
TIG Arc Ignition Method | High Frequency / Lift Arc | High Frequency / Lift Arc | High Frequency / Lift Arc | High Frequency / Lift Arc |
Electric Shock Prevention (VRD) | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% | 18V+10%/-15% |
Cooling Method | Forced Air Cooling / Water Cooling | Forced Air Cooling / Water Cooling | Forced Air Cooling / Water Cooling | Forced Air Cooling / Water Cooling |
Overall Dimensions L×W×H (mm) | 640×320×590 | 640×320×590 | 760×320×590 | 745×420×901 |
Insulation Class | H | H | H | H |
Weight (Kg) | 40 | 42 | 60 | 95 |
Standard configuration | Optional accessory |
|---|---|

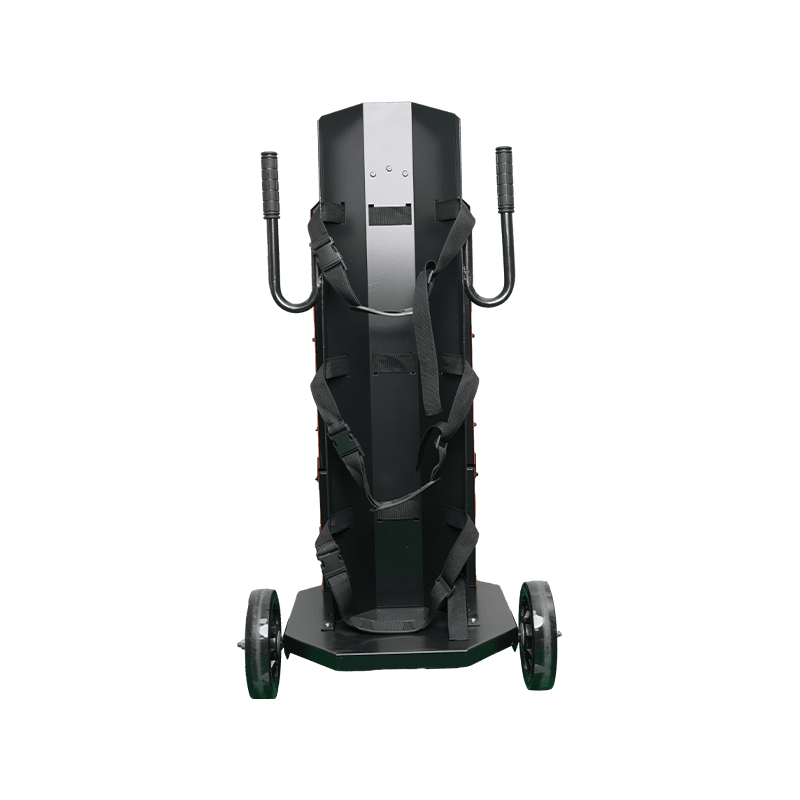

One set of argon arc torch,5 meters One set of earth cable,2 meters One pcs of copper connector | gas regulator Welding electrode holder Welder trolley |
WSME-315S:Suitable for thin to medium aluminum parts and conventional TIG/Pulse TIG operations. Recommended for bicycle manufacturing, aluminum furniture fabrication, general pressure vessels, and pipeline installation.
WSME-400S:Balances thin and medium-thick plate welding with strong versatility. Recommended for pressure vessel manufacturing, general shipbuilding supporting industries, and petrochemical equipment.
WSME-500S:High-current output, suitable for long-duration continuous welding of thick plates and heavy-duty AC/DC TIG/Pulse TIG operations. Recommended for nuclear power installation, large-scale shipbuilding, heavy-duty pressure vessels, and automated welding production lines.
WSME-630S:Maximum power output for extra-thick plates and extreme heavy-duty welding applications. Recommended for large-scale shipbuilding, heavy equipment manufacturing, and large aluminum structure welding. Optional II(a) type synchronization function is available for dual-side arc welding processes.
Q1: What welding modes does this welder support?
A1: It supports AC-TIG, DC constant-current TIG, DC pulse TIG and MMA welding. AC-MMA function can be customized for base models.
Q2: Is parameter adjustment convenient?

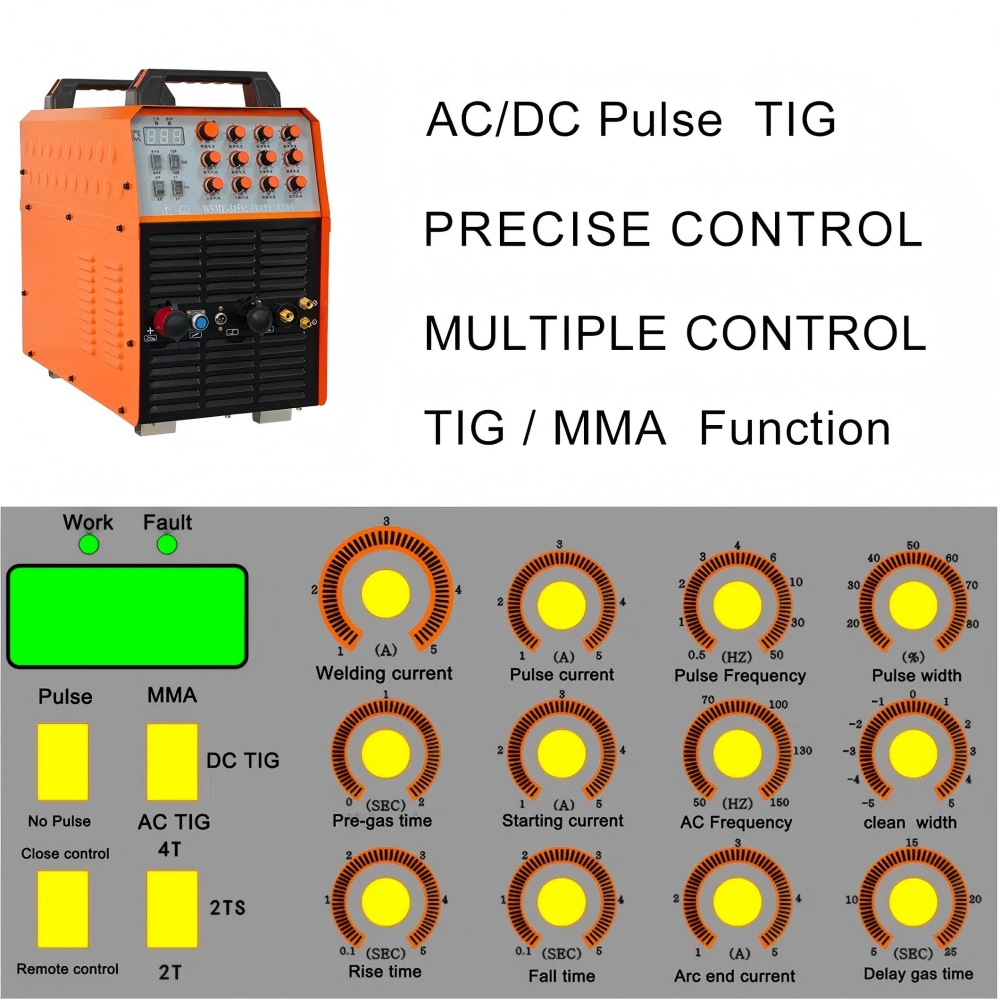

A2: Adopt full-digital high-precision constant-current control. Parameters including current ramp-up/ramp-down, pulse frequency, duty cycle, pre-flow gas time and post-flow gas time can be precisely preset for easy panel operation.
Q3: What are the functions of AC frequency and cleaning width?
A3: AC frequency adjusts arc shape; cleaning width removes oxide film on aluminum surface during aluminum welding. Both can be adjusted independently to suit different aluminum alloys.
Q4: What is composite pulse?
A4: Composite pulse allows adjustable composite pulse frequency and width to further optimize weld bead formation, ideal for high-standard aluminum and thin-sheet welding.
Q5: What is the function of VRD anti-electric shock?
A5: It reduces no-load voltage to a safe level of 18V and improves operator safety when working in humid environments.
