MMA Manual Arc Welding, Lift-TIG
Widely used in shipbuilding, construction machinery, petrochemical industry, steel structure engineering and other industrial fields.
Supports electrodes up to 5mm, features fast arc starting and stable current output for structural welding.
High arc temperature with concentrated heat input minimizes heat-affected zone for clean welding results.
Equipped with overheat and short-circuit protection to ensure safe and stable continuous welding.
Single-knob control with digital display, simple operation and accurate parameter adjustment.
Adopts imported IGBT inverter and passive PFC technology, low power consumption, high efficiency and stable performance.
Adjustable arc thrust adapts to extended cables, enabling stable long-distance field welding.
2-in-1 MMA and Lift-TIG design, lightweight and compact for flexible mobile operation.
ltem | ZX7-400M2 | ZX7-500M2 |
|---|---|---|
Rated input voltage | AC380V±10% 50Hz | AC380V±10% 50Hz |
Rated input power (KVA) | 14 | 21 |
Rated input current (A) | 26 | 36 |
Output current range (A) | 30-400 | 30-500 |
Rated load persistence rate (%) | 60 | 60 |
Power factor | 0.93 | 0.93 |
Shell protection level | IP21S | IP21S |
Insulation level | H | H |
Power transistor | Dual module | Dual module |
Overall size L×W×H (mm) | 200×350×400 | 245×395×490 |
Weight (Kg) | 16.8 | 18 |
Standard configuration | Optional accessory |
|---|---|
2 quick couplings | |
One gas-cooled argon arc welding gun | |
Soldering wire | |
welding electrode holder |

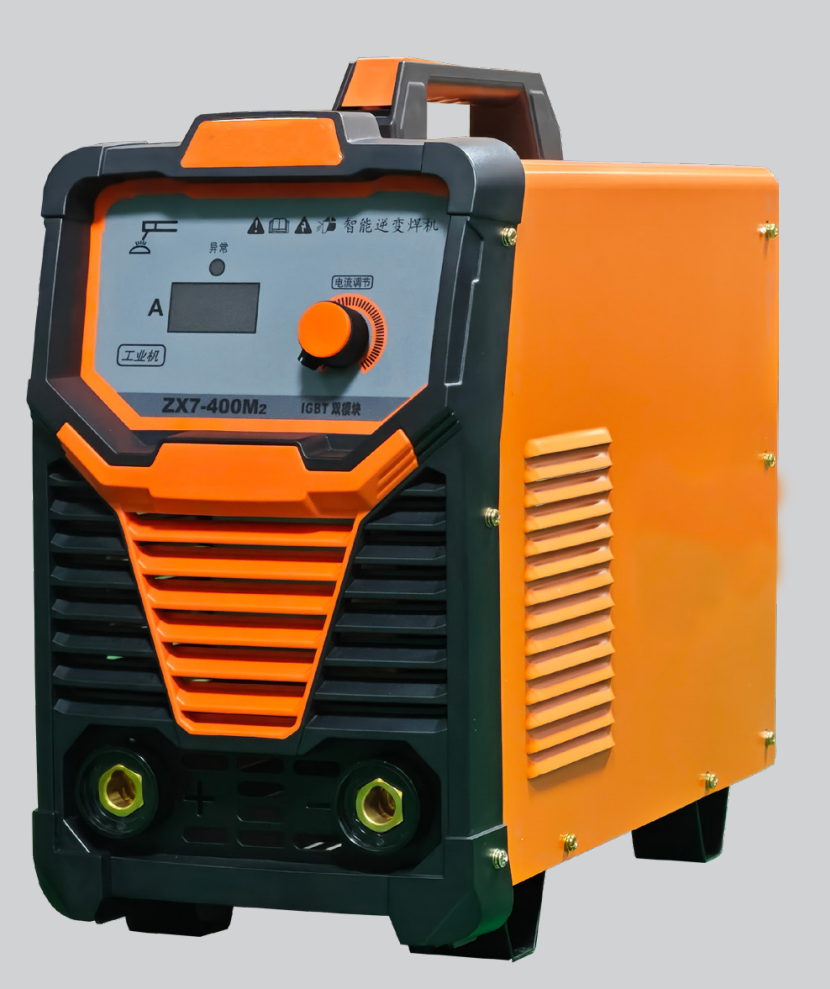

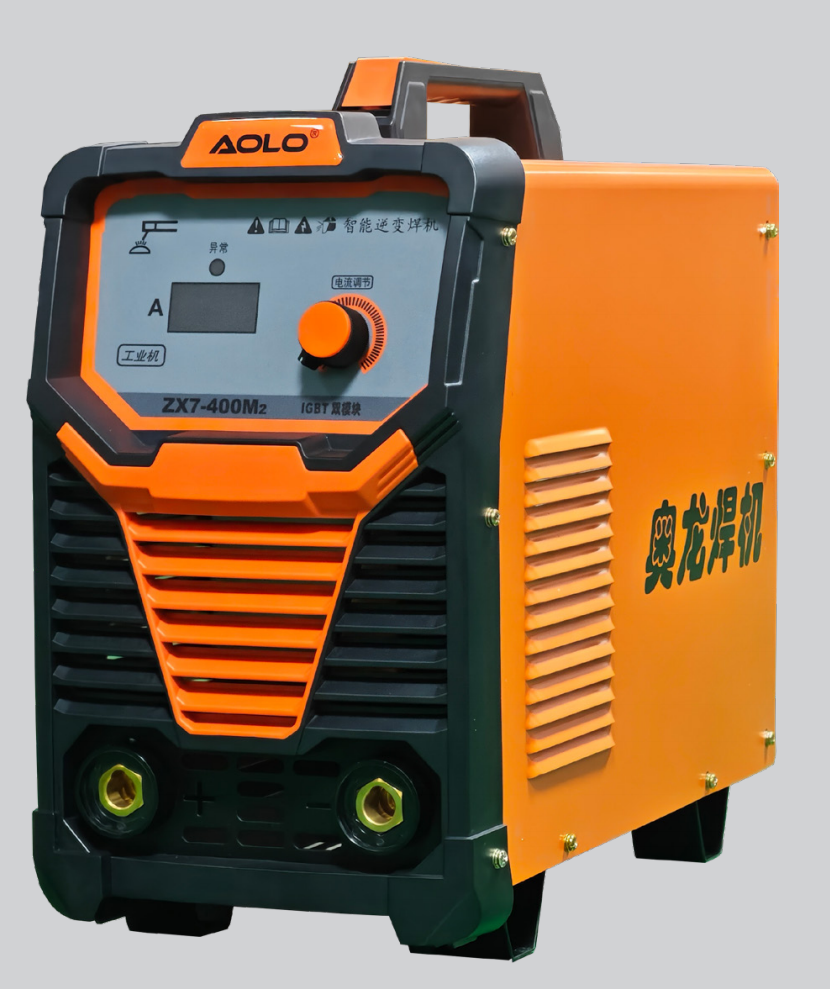

ZX7-400M2: Ideal for medium-thick plate welding, 2.5–4.0mm electrodes, daily steel structure and mechanical processing work, cost-effective for regular industrial tasks.

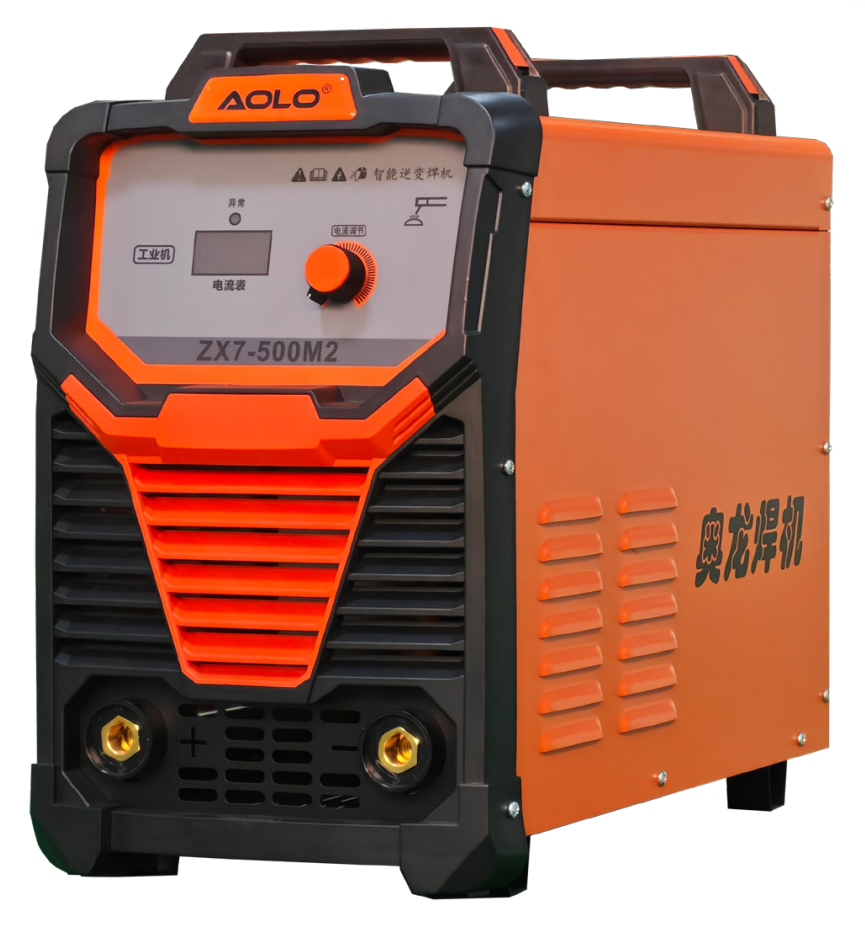

ZX7-500M2: Upgraded industrial grade version, supports up to 5.0mm electrodes, stronger current output, higher duty cycle, more suitable for thick plate welding, shipbuilding, petrochemical and long-time continuous welding work.
Q1: Does this machine support TIG welding?
Yes. It adopts Lift-TIG ignition mode, no scratch start required, no tungsten contamination, ensuring cleaner welding results.
Q2: Can the welding cable be extended for long-distance operation?
Yes. This machine supports arc force adjustment, maintaining stable current even with extended cables, meeting the needs of long-distance jobsite welding.
Q3: Does it support long-duration continuous welding?
Yes. Equipped with large-capacity capacitors, multiple protection features, and a high-duty-cycle design, it supports stable continuous welding for extended periods.
Q4: What is the difference between ZX7-400M2 and ZX7-500M2? How to choose?
The main differences lie in output power and application scenarios. ZX7-400M2 is suitable for conventional structural components and medium-thick plate welding, with a maximum electrode diameter of 4.0mm. ZX7-500M2 offers higher power, ideal for thick plates and long-duration continuous welding, supporting electrodes up to 5.0mm. For general projects, choose ZX7-400M2; for thick plates and heavy-duty work, choose ZX7-500M2.
Q5: Is it easy for beginners to operate?
Yes. Simple operation with single-knob adjustment and digital current display, stable arc ignition and low spatter, suitable for both beginners and experienced welders.
Q6: Can it be used on job sites with unstable power supply?
Yes. This machine adopts high-power imported IGBTs with strong anti-interference capability, combined with passive power factor correction technology, making it adaptable to complex power supply conditions on construction sites.
