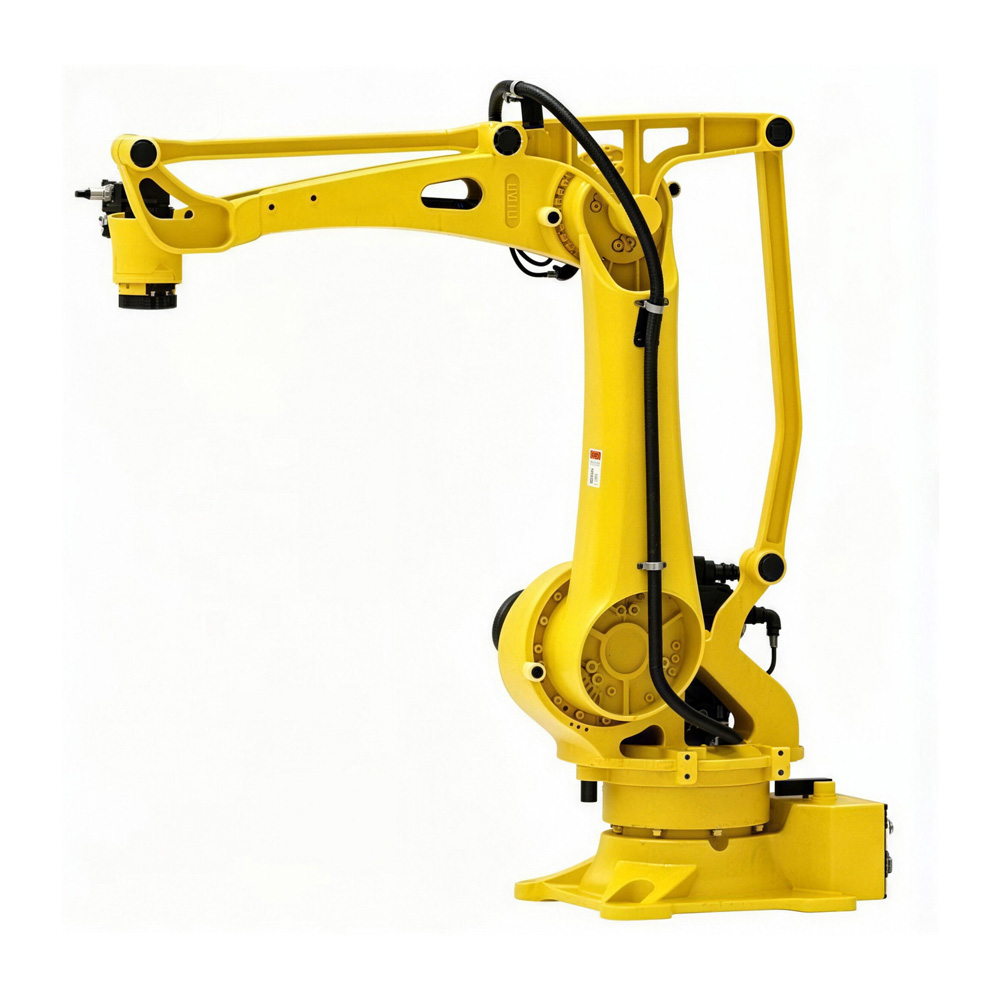

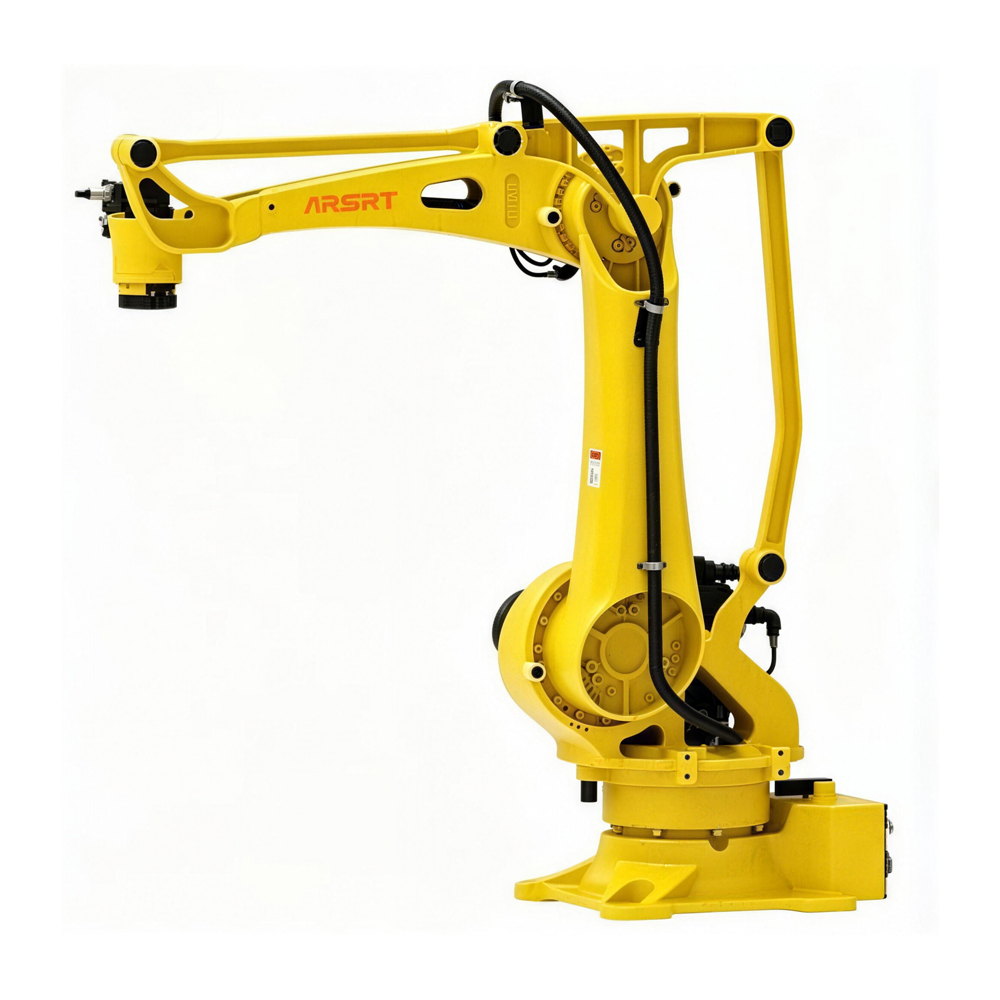

DS1060B-210 is a high-speed 4-axis industrial robot developed for palletizing, material handling, and automated packaging operations. With a payload capacity of 100 kg and a working reach of 2500 mm, the robot delivers efficient motion performance, stable operation, and fast cycle times for modern industrial automation systems.

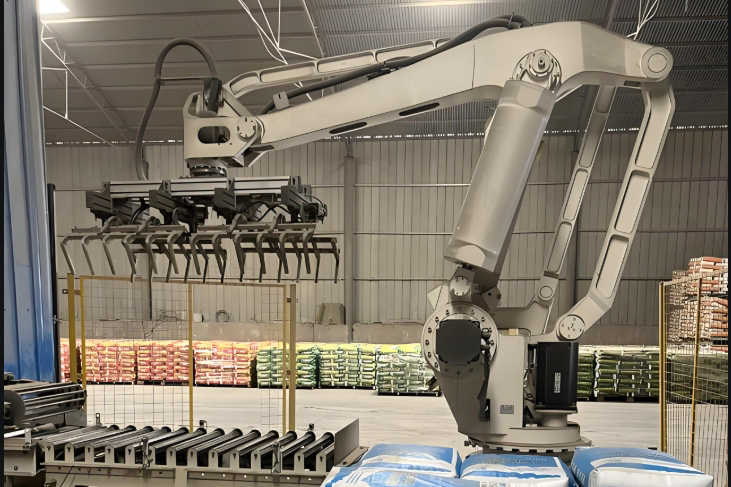

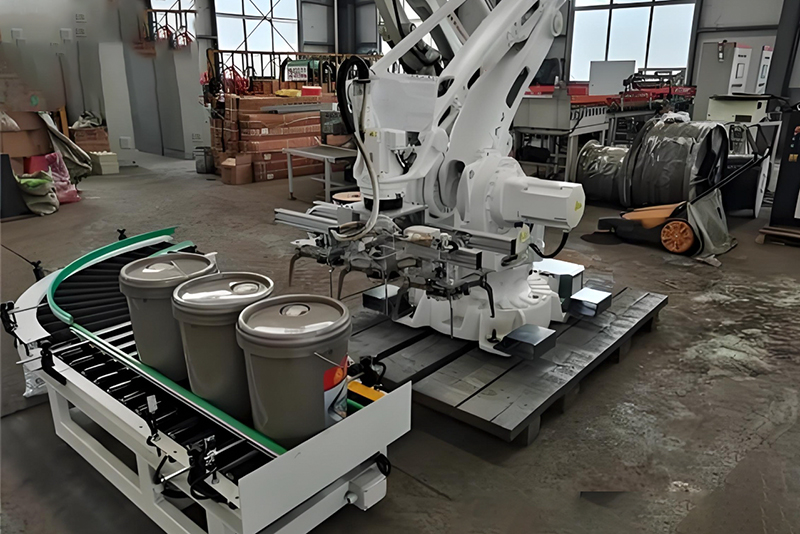

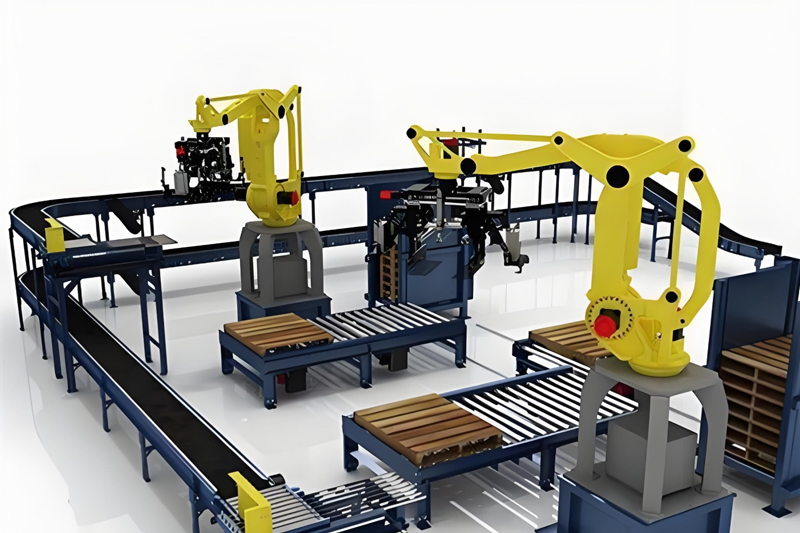

Its optimized parallel-arm structure improves handling efficiency in repetitive pick-and-place applications, making it suitable for logistics centers, production lines, packaging systems, and intelligent warehouse automation.
Optimized robotic motion improves handling efficiency and production throughput.
100 kg payload capacity supports cartons, bags, boxes, containers, and industrial materials.
Rigid arm construction minimizes vibration during high-speed operation.
Supports floor-mounted, ceiling-mounted, and side-mounted configurations.
Internal cable management improves durability and reduces maintenance downtime.
Compatible with warehouse systems, conveyors, packaging lines, and intelligent factory automation platforms.
| Item | Specification |
|---|---|
| Axis | 4 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 10.0KVA/payload: 100kg |
| Humidity | 0%-90%RH(No condensation ) |
| Body weight | 640kg |
| Vibration | ≤4.9m/s² |
| Max Range | 2500mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.15mm |
| IP level | IP54（wrist:IP 67） |
| Installation | Palletizing, forging, machining, assembly |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±150° | 94°/s | - |
| J2 | +35°~-60° | 90°/s | - |
| J3 | +60°~-50° | 111°/s | - |
| J4 | ±360° | 333°/s | - |
| J5 | - | ||
| J6 | - |
