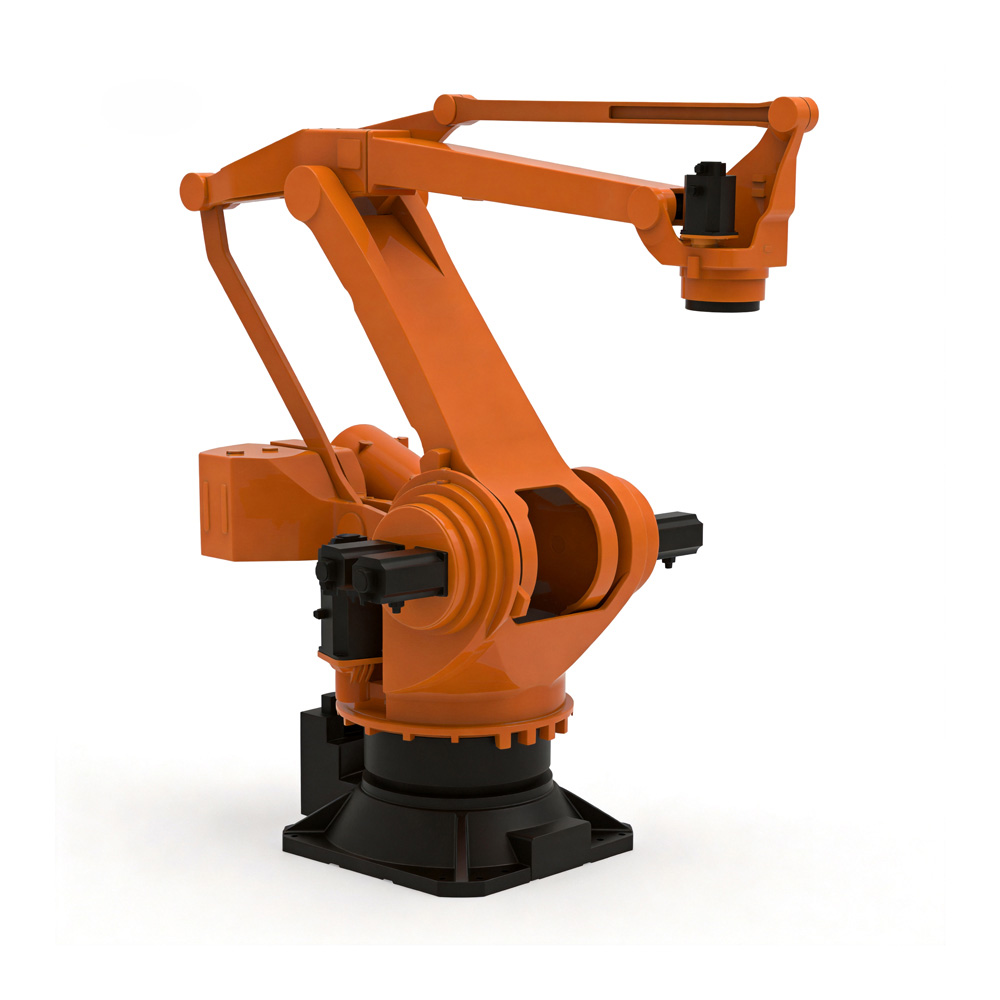

DS112TB-460A is an ultra-heavy-duty 4-axis industrial robot engineered for high-load palletizing and material handling applications. Featuring a maximum payload of 1200 kg and an extended working radius of 4600 mm, the robot delivers outstanding operational stability, efficient cycle performance, and reliable handling capability for large-scale industrial production environments.
Designed for continuous automated operation, the robot is ideal for palletizing oversized products, transferring heavy components, and automating high-volume logistics systems in demanding manufacturing industries.
Supports handling of oversized products, bulk materials, and extremely heavy industrial components.
4600 mm working radius improves operational coverage and palletizing flexibility.
Optimized arm structure maintains stable motion performance during high-load operation.
IP67 wrist protection improves reliability in dusty and harsh industrial environments.
Advanced trajectory planning improves cycle efficiency and handling accuracy.
| Item | Specification |
|---|---|
| Axis | 4 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 50.0KVA/payload: 1200kg |
| Humidity | 20%-80%RH(No condensation ) |
| Body weight | 7192kg |
| Vibration | ≤4.9m/s² |

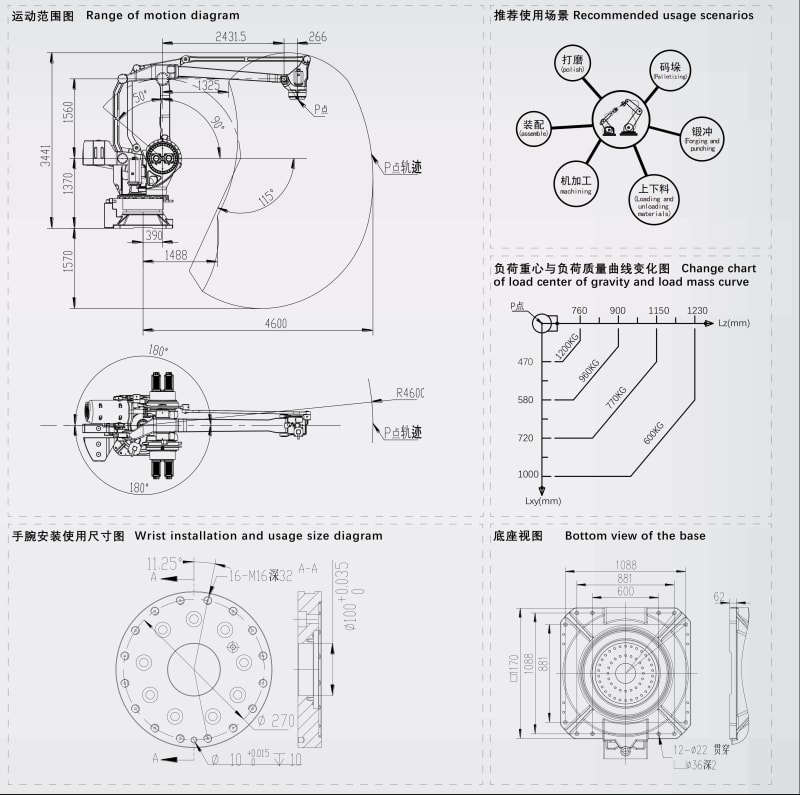

| Max Range | 4600mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.5mm |
| IP level | IP54（wrist:IP 67） |
| Installation | Ground |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±180° | 50°/s | - |
| J2 | +50°~-90° | 52°/s | - |
| J3 | +23°~-115° | 58°/s | - |
| J4 | ±360° | 115°/s | - |
| J5 | - | ||
| J6 | - |
