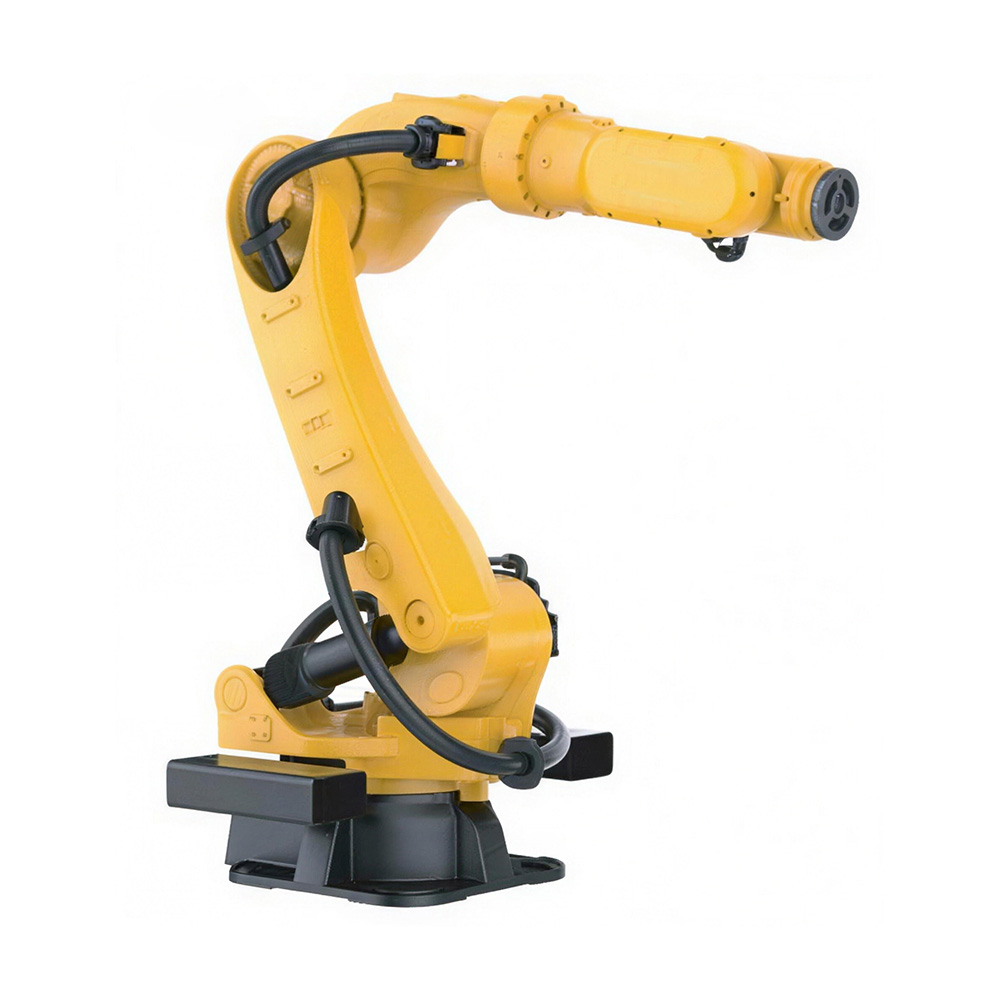

DS1220A-270A is a high-payload 6-axis industrial robot developed for demanding heavy-duty automation applications. Featuring a reinforced high-rigidity mechanical structure and advanced servo motion technology, the robot delivers stable operation when handling large and eccentric industrial loads.
Designed for harsh manufacturing environments, the DS1220A-270A is suitable for heavy material handling, spot welding, machine tending, die casting, palletizing, and large-component assembly processes.
Its 220kg payload capability and 2707mm working reach provide excellent flexibility for large-scale industrial automation systems requiring both power and precision.
Optimized structural rigidity enables stable handling of large and off-center industrial components.
High-performance servo system delivers smooth robotic movement during high-load operation cycles.
Reinforced mechanical design minimizes vibration and improves positional stability.
Built-in air and electrical routing protects cables and simplifies robotic system integration.
IP54 body protection and IP65 wrist protection support operation in dust, oil mist, and welding environments.
Modular structural design simplifies inspection and maintenance procedures.
| Item | Specification |
|---|---|
| Axis | 6 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 2.0KVA/payload: 12kg |
| Humidity | 0%-95%RH(No condensation ) |
| Body weight | 1225kg |
| Vibration | ≤4.9m/s² |

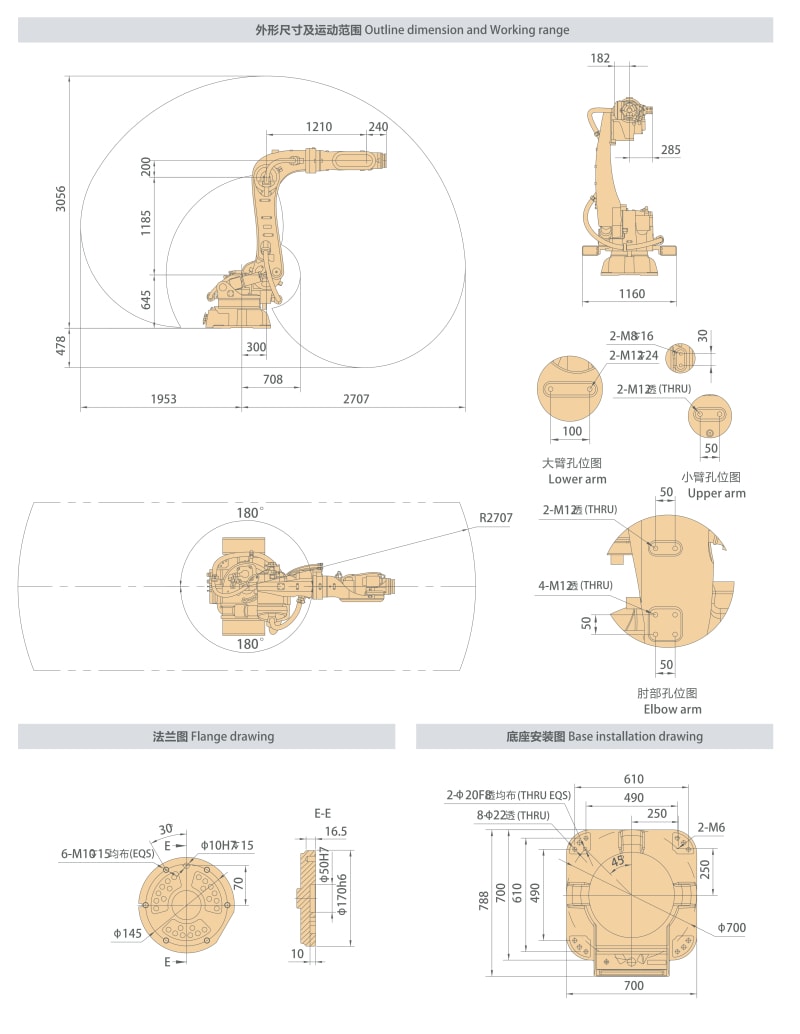

| Max Range | 2707mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.06mm |
| IP level | IP54（wrist:IP 65） |
| Installation | Floor mounting |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±180° | 120°/s | - |
| J2 | +85°~-60° | 114°/s | - |
| J3 | +170°~-110° | 114°/s | - |
| J4 | ±200° | 175°/s | - |
| J5 | +135°~-135° | 210°/s | - |
| J6 | ±360° | 270°/s | - |
Automotive spot welding
Heavy machine tending
Large component assembly
Heavy-duty palletizing
Die casting automation
Engineering machinery manufacturing
Industrial material transfer
Metal fabrication automation
Optimized for Heavy Industrial Loads
Designed specifically for large payload and eccentric load handling applications.
Stable High-Speed Operation
Maintains precise robotic motion during demanding continuous industrial production.
Reduced Integration Complexity
Integrated cable routing simplifies automation deployment and improves reliability.
Long-Term Industrial Reliability
Built for continuous heavy-duty operation in demanding manufacturing environments.
Comprehensive Automation Support
Supports customized tooling, vision systems, and turnkey automation integration services.
