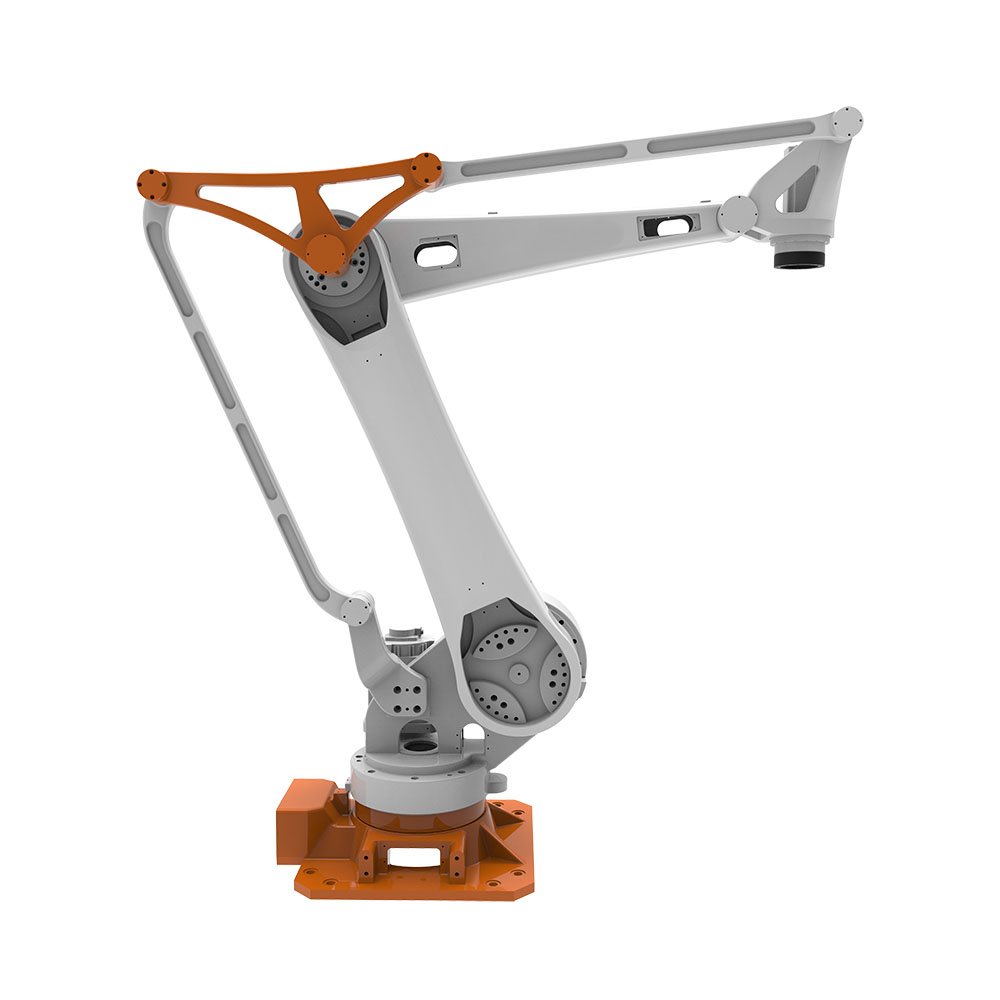

DS1100B-250B is a high-performance 4-axis industrial robot engineered for palletizing, depalletizing, and high-speed material handling applications. Designed with an optimized parallel arm structure, the robot achieves excellent operational speed, stability, and handling efficiency for modern logistics and manufacturing industries.
With a 100kg payload capacity and 2500mm working range, the DS1100B-250B supports large-area palletizing operations while maintaining stable motion control during continuous high-speed production.

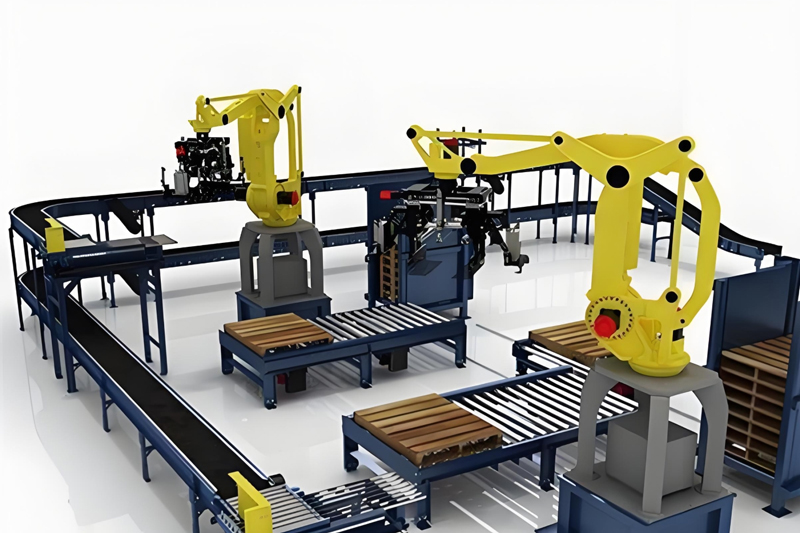

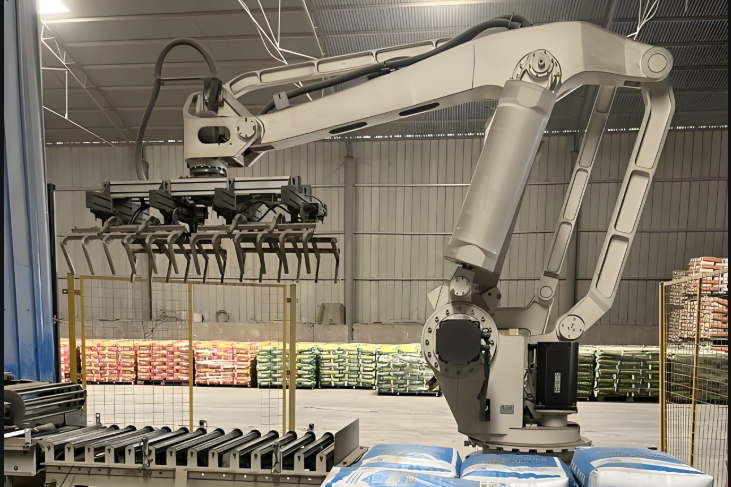

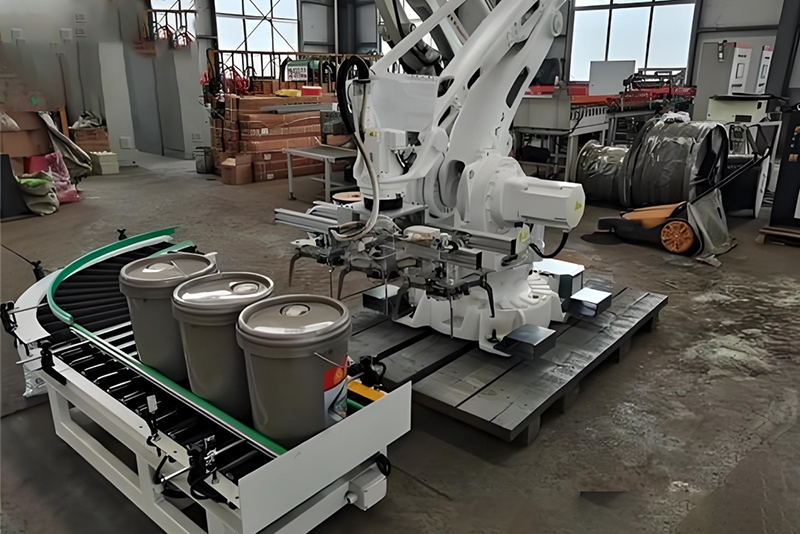

The robot is ideal for carton handling, case packing, warehouse logistics, production line transfer, and automated packaging systems.
Supports heavy-duty palletizing and industrial transfer applications up to 100kg.
Optimized 4-axis architecture improves throughput efficiency and shortens handling cycle times.
2500mm arm span increases production flexibility across large workspaces.
Rigid arm construction minimizes vibration and ensures smooth operation under full payload conditions.
Supports multiple installation configurations for different factory layouts and automation requirements.
Internal cable routing design improves reliability and protects wiring from industrial damage.
| Item | Specification |
|---|---|
| Axis | 4 Axis |
| Temperature | 0℃-45℃ |
| Capacity | 10.0KVA/payload: 100kg |
| Humidity | 0%-90%RH(No condensation ) |
| Body weight | 640kg |
| Vibration | ≤4.9m/s² |

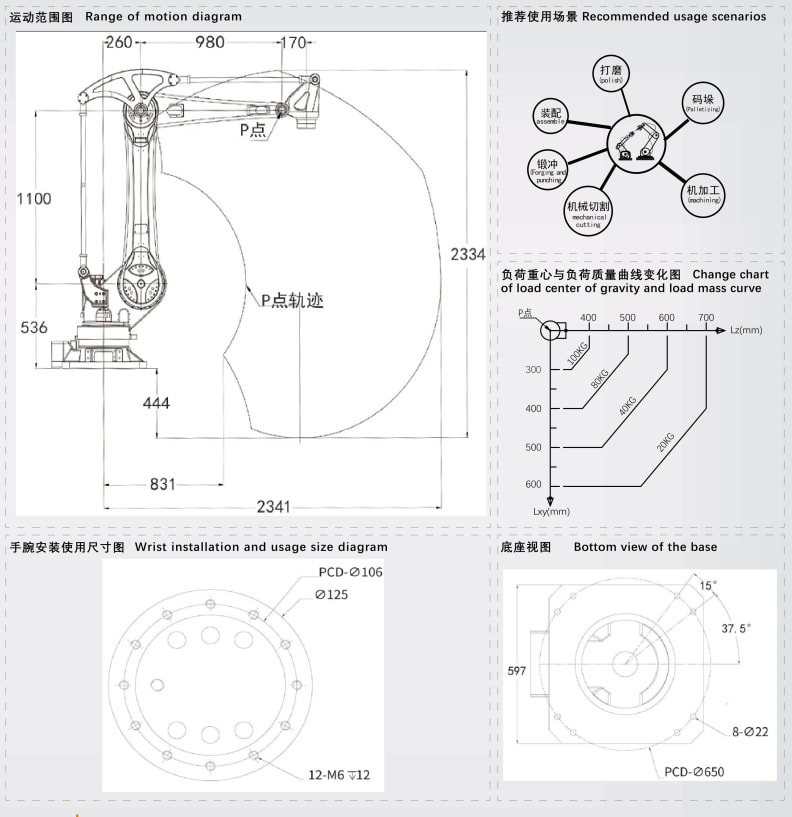

| Max Range | 2500mm |
| Others | No flammable and corrosive gases, liquids, away from electrical noise sources |
| Repeatability | ±0.15mm |
| IP level | IP54（wrist:IP 67） |
| Installation | Palletizing, forging, machining, assembly |
| Axis | Motion range | Max speed | Hollow Axis Diameter |
|---|---|---|---|
| J1 | ±150° | 94°/s | - |
| J2 | +35°~-60° | 90°/s | - |
| J3 | +60°~-50° | 111°/s | - |
| J4 | ±360° | 333°/s | - |
| J5 | - | ||
| J6 | - |
