Regular MIG/MAG Welding, MMA Manual Arc Welding, Lift-TIG Welding, Air Carbon Arc Gouging
Widely used in heavy industries including shipbuilding, container manufacturing, construction machinery, petrochemical engineering and steel structure projects.
Waveform control for low spatter and smooth finish.
Wide-range continuous adjustment of current and voltage.
High duty cycle, minimal deformation during continuous welding.
High deposition rate, ideal for heavy-duty applications.
Soft-switching technology for high efficiency and reliable arc ignition.
High-frequency inverter, compact and lightweight for flexible deployment.
Multi-process capability, built-in gouging and MMA functions.
|
ltem
|

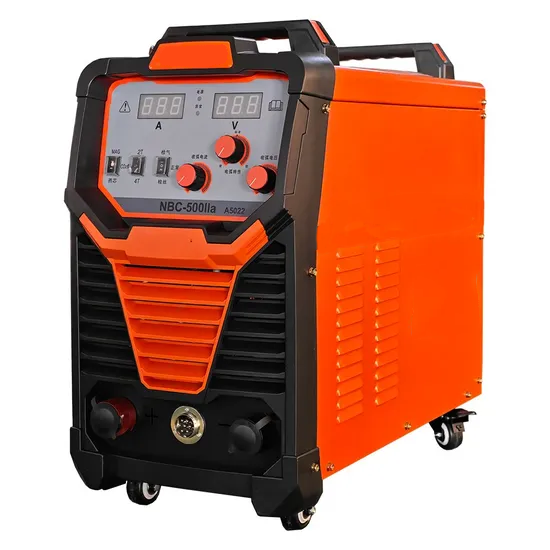

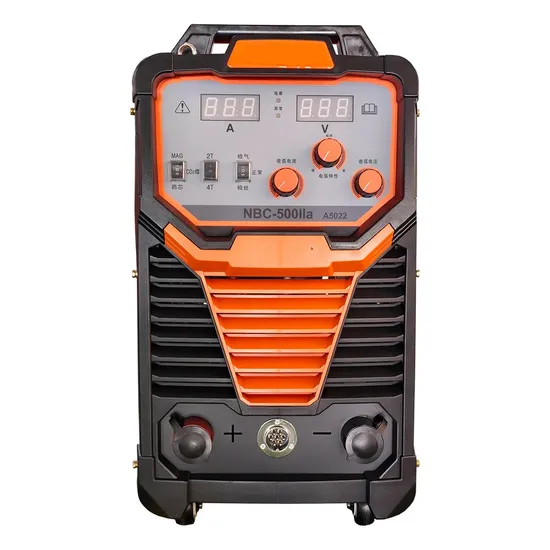

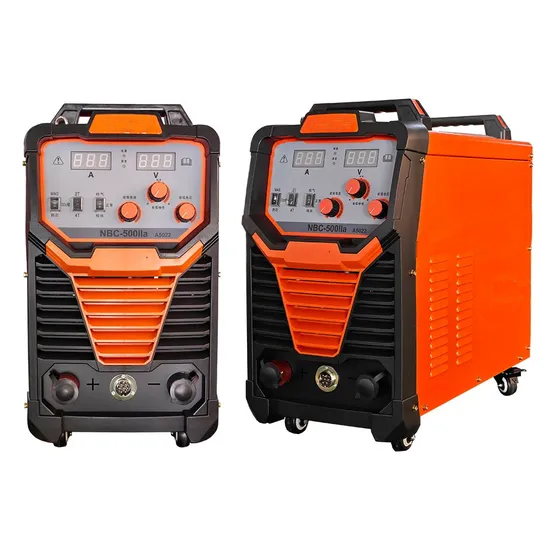

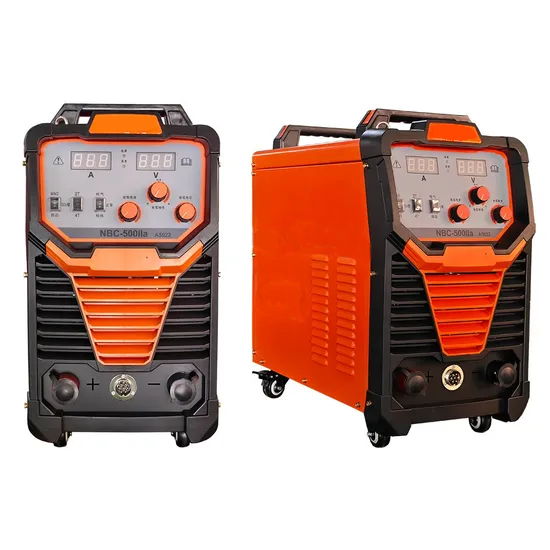

NBC-500IIa
|
|---|---|
|
Rated input voltage/Frequency
|
Three phase 380V±10% 50Hz
|
|
Rated input power (KVA)
|
26
|
|
Rated input current (A)
|
40
|
|
Rated output voltage (V)
|
39
|
|
Rated load persistence rate (%)
|
60
|
|
Output no-load voltage (V)
|
76
|
|
Output current range (A)
|
60-500
|
|
Output voltage range (V)
|
14-50
|
|
Welding wire
|
0.8/1.0/1.2
|
|
Gas flowing capacity (L/min)
|
15-25
|
|
Torch cooling type
|
Air
|
|
Shell protection level
|
IP21S
|
|
Insulation level
|
H
|
|
Overall size L×W×H (mm)
|
610×315×540
|
|
Weight (Kg)
|
35
|
|
Standard Spec. air cooling
|

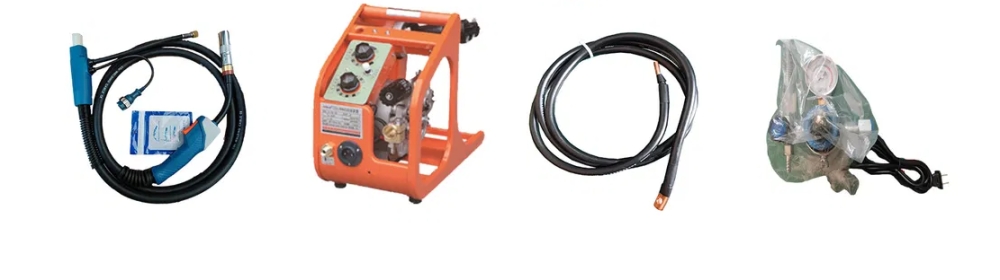

Optional accessory
|
|---|---|
|
One set of wire feeding machine (5-meter cable)
1 set of 3-meter gas-cooled welding gun (with Panasonic interface)
One set of 2-meter grounding wire cable
One CO2 gas meter (AC36V 25L/min)
|
Gas proportioning unit
|
A: It supports four welding processes: ① Conventional MIG/MAG gas-shielded welding; ② Manual metal arc welding (MMA); ③ Lift-arc TIG (DC argon arc welding); ④ Carbon-arc gouging. One single machine covers multiple operation requirements.
A: 2T mode is suitable for spot welding on short weld seams. Press the trigger to start the arc, and release to stop the arc. 4T mode is designed for continuous welding of long weld seams. Press once to start continuous welding, and press again to stop welding. There is no need to keep holding the trigger, which greatly reduces hand fatigue during long-time operations.
A: Yes. The NBC-500IIa features strong anti-grid-fluctuation capability and high duty cycle. Its welding cable can be extended up to 50 meters for continuous welding, ideal for cross-range operation on large-size workpieces.
A: The three-proof treatment refers to moisture-proof, salt-spray-proof and dust-proof protection. In scenarios such as shipbuilding (coastal salt-spray environment), container manufacturing (open-air dust exposure) and mining, circuit boards without three-proof treatment are prone to moisture-caused short-circuit and corrosion damage. The three-proof process of NBC-500IIa guarantees long-term reliable operation under harsh working conditions.
