Pulse MIG/MAG, Standard MIG/MAG, Manual MMA, Lift-arc TIG, Scratch-start TIG
Application industry:Heavy-duty welding of carbon steel, stainless steel and aluminum alloy. Applications include high-speed trains, pressure vessels, vehicle modification, yachts, high-voltage switches.
CPU+DSP fully-digital waveform control, one-pulse-one-drop transfer, stable arc and low spatter
Store up to 100 sets of custom welding parameters
2T / 4T / Special-4T / spot welding, unified & independent adjustment
Robot-ready analog & digital interface modules
Auto-welding interface, adjustable 2-step arc start/stop, easy setup & maintenance
Multi-protection: short-circuit, over-heat, grid-abnormality, wire-jamming, power-on
drive-2-driven encoder-based all-digital wire feeding for consistent wire delivery

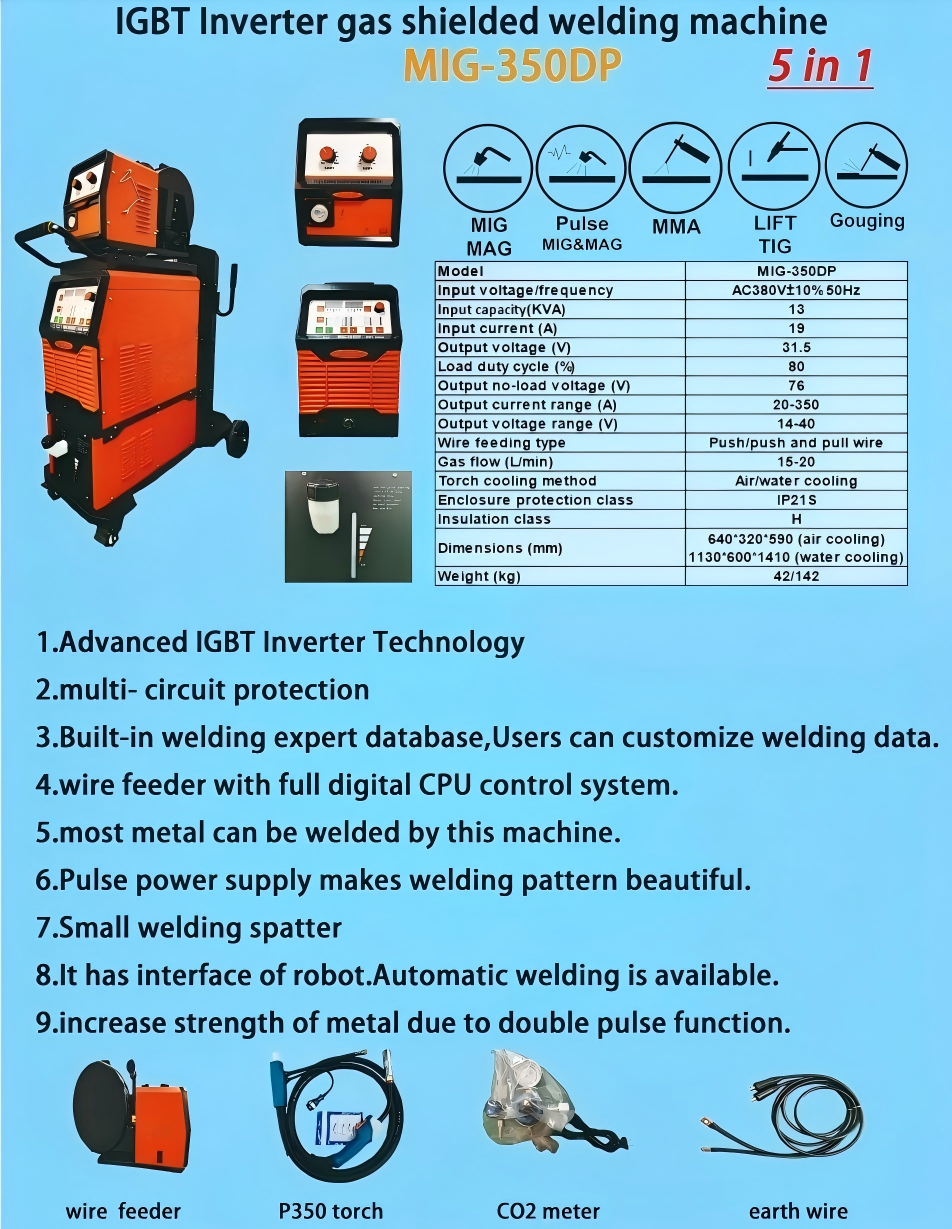

ltem | MIG-350DPII | MIG-500DPII |
|---|---|---|
Rated input voltage Frequency | Three phase 380V±10% 50Hz | Three phase 380V±10% 50Hz |
Rated input power(KVA) | 15 | 26 |
Rated input current(A) | 23 | 40 |
Rated output voltage (V) | 31.5 | 39 |
Rated load persistence rate(%) | 80 | 80 |
Output no-load voltage (V) | 72 | 76 |
Output current range (A) | 20-350 | 25-500 |
Output voltage range (V) | 14-40 | 14-50 |
Wire feeding type | Push Push-pull | Push Push-pull |
Gas flowing capacity (L min) | 15-20 | 15-20 |
Torch cooling type | Water Air | Water Air |
Shell protection level | IP21S | IP21S |
Insulation level | H | H |
Overall size L×W×H(mm) | 640×320×590 | 640×320×590 |
1130×600×1410 | 1130×600×1410 | |
Weight (Kg) | 42/142 | 52/152 |

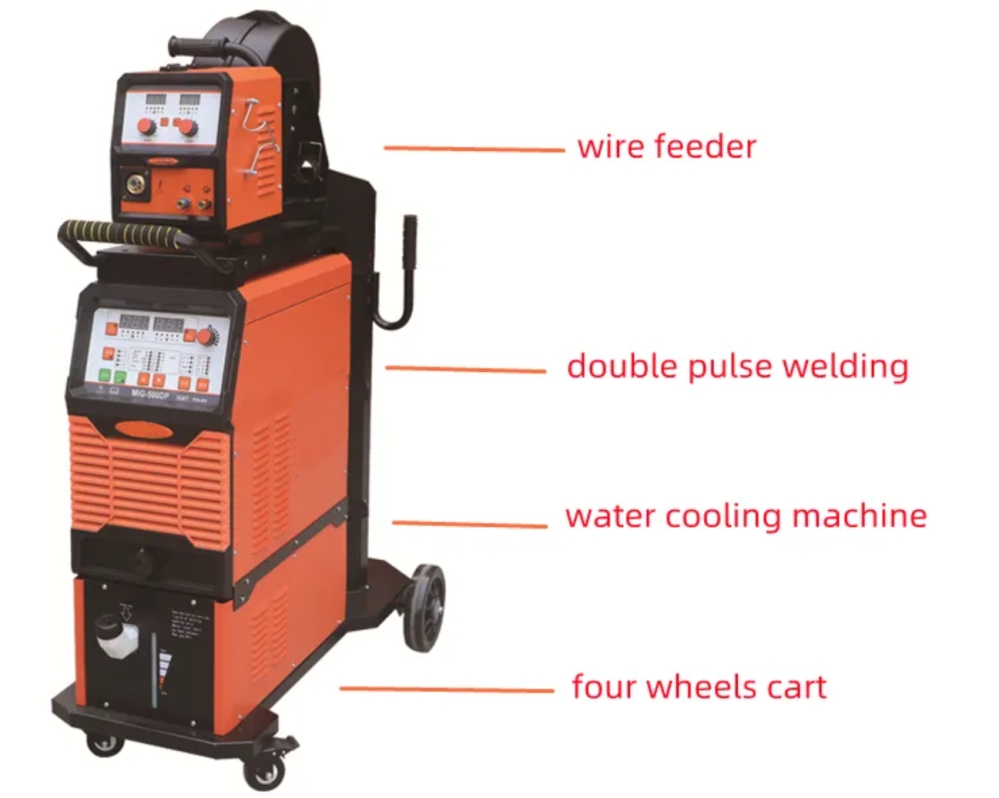

Standard Spec. air cooling | Standard spec. Water cooling | Optional accessory |
|---|---|---|
One set of air-cooled wire feeding machine (with 5 meters of cable) | One set of water cooling wire feeder with 1.8 meter cable | Gas proportioning unit |
One set of 2-meter grounding cable | One set of water cooling machine | CO2 gas meter (AC36V 25L/min) |
One set of air cooling torch,three meters | One set of water cooling torch,three meters | push-pull wire torch |
25L min) | One set of air protection welding trolley | |
One pcs of argon meter (25L/min) | 25L min) One pcs of argon meter (25L min) | Digital display wire feeder |
