Regular MIG/MAG, MMA Manual Arc Welding, Lift-TIG
Widely applied in sheet-metal processing, container manufacturing, automobile industry, hardware products, home furnishings and other fields.
Adopts phase-shifted full-bridge inverter main circuit for high overall machine reliability.
Outstanding dual-waveform control for voltage & current, delivering minimal spatter and aesthetic weld beads.
Unique AFTT anti-ball circuit: no residual ball formed at wire tip upon welding completion for reliable re-ignition.
Wire feeder built-in wire straightener ensures superior feeding performance. Stable arc performance is maintained even when the welding gun is sharply bent.
Digital voltage & current display, user-friendly interface, no complicated external welding-parameter setup required.
Extended control cable optional, ideal for welding in narrow spaces and high-altitude working conditions.
AFTT
|
ltem
|

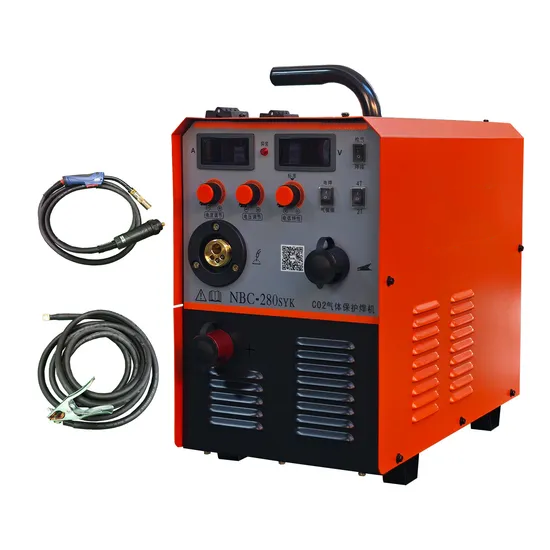

NBC-280SYK
|
NBC-280SYK
|

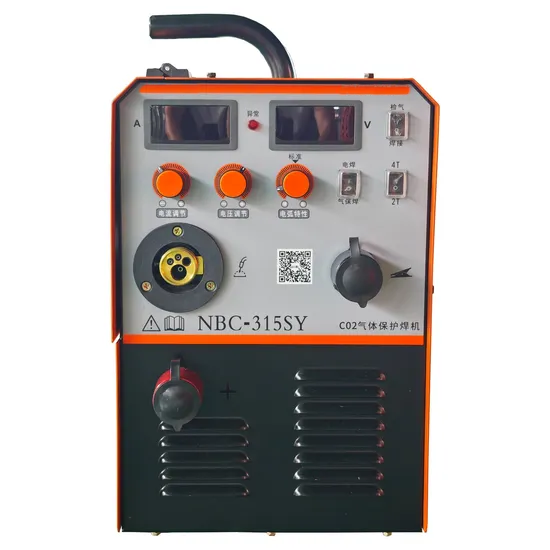

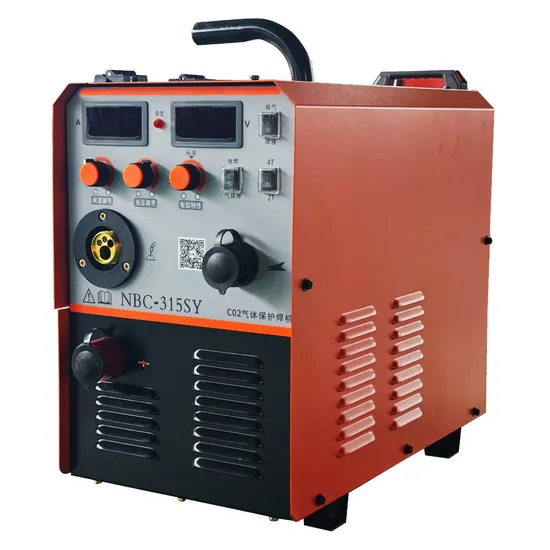

NBC-315SY
|
|---|---|---|---|
|
Rated input voltage Frequency
|
AC220V±10% 50Hz AC380V±10%50Hz
|
AC220V±10% 50Hz AC380V±10%50Hz
|
AC380V±10%50Hz
|
|
Rated input power (KVA)
|
8
|
10.5
|
13
|
|
Rated input current (A)
|
21
|
15
|
20
|
|
Output voltage range (V)
|
14-27
|
14-27
|
14-31
|
|
Output current range (A)
|
25-280
|
25-280
|
30-315
|
|
Applicable welding wire range
|
0.8/1.0
|
0.8/1.0
|
0.8/1.0/1.2
|
|
Rated load persistence rate (%)
|
60
|
60
|
60
|
|
Wire feeder form
|
built-in
|
built-in
|
built-in
|
|
Power factor
|
0.93
|
0.93
|
0.93
|
|
Insulation level
|
H
|
H
|
H
|
|
Wire feeding machine type
|
Push
|
Push
|
Push
|
|
Overall size L×W×H (mm)
|
490×275×550
|
490×275×550
|
490×275×550
|
|
Weight (Kg)
|
13.5
|
13.5
|
19.8
|
|
Standard Spec. air cooling
|
Optional accessory
|
|---|---|
|
One set of wire feeding machine (5-meter cable)
|
Gas proportioning unit
|
|
1 set of 3-meter gas-cooled welding gun (with Panasonic interface)
|
Gas proportioning unit
|
|
One set of 2-meter grounding wire cable
|
Gas proportioning unit
|
|
CO (AC36V 25L min)
|
Gas proportioning unit
|
|
One CO2 gas meter (AC36V 25L/min)
|
Gas proportioning unit
|
